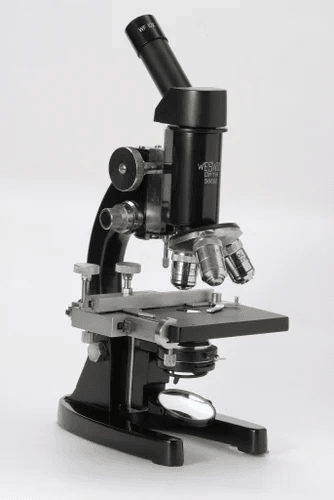

Technical Specifications:
Model HL-4 : body with horse shoe shaped base 0 hinged type, versatile designed inclinable through 90Aluminium Die-Cast parts.
Model HL-444 : Inclined Monocular Head 45rotatable through 0 360with horse shoe shaped base hinged type.
Mechanical tube length 160 +1 mm.
Triple or quadruple revolving nosepiece with positive centering and click stop.
Coarse motion through rack and pinion. Very precise and accurate graduated fine motion reading to 0.002 mm.
Fixed square stage120mmx120mmfitted with detachable graduated mechanical stage for X and Y movement upto 40mm to 75mm.
Two lens Abbe condenser NA1.25 with iris diaphragm and swing out filter holder, moveable through rack and pinion.
A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
Complete with optics, these microscopes are packed in shockproof STYROFOAM molded box having provision for placing eyepieces and objectives and dust cover. Plywood cabinet extra.
Technical Specifications:
Model HL-4 : body with horse shoe shaped base 0 hinged type, versatile designed inclinable through 90Aluminium Die-Cast parts.
Model HL-444 : Inclined Monocular Head 45rotatable through 0 360with horse shoe shaped base hinged type.
Mechanical tube length 160 +1 mm.
Triple or quadruple revolving nosepiece with positive centering and click stop.
Coarse motion through rack and pinion. Very precise and accurate graduated fine motion reading to 0.002 mm.
Fixed square stage120mmx120mmfitted with detachable graduated mechanical stage for X and Y movement upto 40mm to 75mm.
Two lens Abbe condenser NA1.25 with iris diaphragm and swing out filter holder, moveable through rack and pinion.
A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
Complete with optics, these microscopes are packed in shockproof STYROFOAM molded box having provision for placing eyepieces and objectives and dust cover. Plywood cabinet extra.
- Regular price
- Rs.13,530.00
- Sale price
- Rs.8,530.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
Technical Specifications:
Model HL-4 : body with horse shoe shaped base 0 hinged type, versatile designed inclinable through 90Aluminium Die-Cast parts.
Model HL-444 : Inclined Monocular Head 45rotatable through 0 360with horse shoe shaped base hinged type.
Mechanical tube length 160 +1 mm.
Triple or quadruple revolving nosepiece with positive centering and click stop.
Coarse motion through rack and pinion. Very precise and accurate graduated fine motion reading to 0.002 mm.
Fixed square stage120mmx120mmfitted with detachable graduated mechanical stage for X and Y movement upto 40mm to 75mm.
Two lens Abbe condenser NA1.25 with iris diaphragm and swing out filter holder, moveable through rack and pinion.
A standard plano-concave mirror 50mm dia. in fork, replaceable by a substage microscope lamp.
Safety stopper, prevents damage to slide and objectives.
Black stoving finish and hard instrumental chromium finish.
Complete with optics, these microscopes are packed in shockproof STYROFOAM molded box having provision for placing eyepieces and objectives and dust cover. Plywood cabinet extra.
