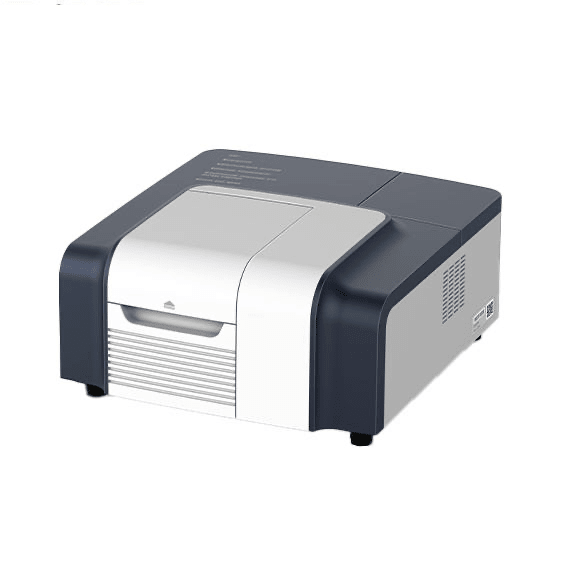

The PMT Spectrophotometer with Mercury Lamp LUV6HG

is a premium high-performance analytical instrument engineered for ultra-precise UV-Visible spectroscopy applications in pharmaceutical laboratories, research institutions, biotechnology centers, chemical industries, environmental testing facilities, and advanced quality control laboratories. The instrument is equipped with a highly sensitive PMT (Photomultiplier Tube) detector, advanced Czerny-Turner optical system, and integrated Mercury Lamp wavelength calibration technology for exceptional analytical accuracy and stability.Designed for advanced spectroscopic analysis, the LUV6HG combines Deuterium, Tungsten, and Mercury Lamps to provide stable UV and visible spectrum performance with real-time wavelength calibration. The integrated mercury lamp enhances wavelength precision, making the instrument ideal for highly accurate absorbance and transmittance measurements across the 190–900 nm wavelength range.

The spectrophotometer features continuously adjustable bandwidth from 0.1nm to 5nm, ultra-low stray light performance, high-resolution optics, and professional PC software that supports photometric measurements, wavelength scanning, kinetics analysis, quantitative analysis, and advanced data processing. The software is designed to comply with GLP/GMP standards and supports user management, data tracing, and laboratory compliance requirements.

PMT Detector (Photomultiplier)
High sensitivity and ability to detect low levels of light, making suitable for precise and accurate measurement.

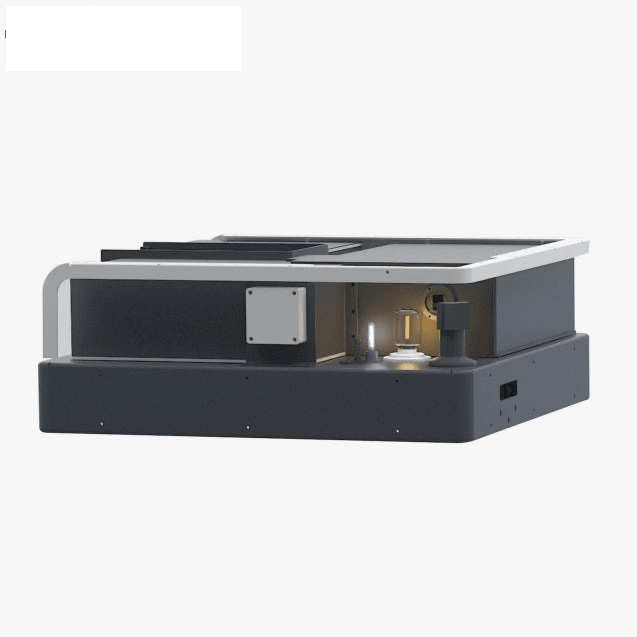

Mercury Lamp
LUV6HG having a mercury lamp as one of its three built-in light sources, along with the deuterium lamp and
tungsten lamp.
The mercury lamp is used for real-time wavelength calibration, which enhances the measurement accuracy of
the instrument
 Czerny-Turner Opcal System
 Ensures high resoluon and ultra-low stray light for stable and reliable performance.
Adjustable Bandwidth
Connuously adjustable from 0.1nm to 5.0 nm to meet different requirements.
Built-in Light Sources
Includes Deuterium, Tungsten, and Mercury Lamps for real-me wavelength calibraon, enhancing measurement
accuracy.
Larger Sample Chamber
Enough space for opening and replacing sample
Professional Analysis Soware
Supports Photometric Measurement, quantave measurement, Wavelength Scanning, Kinecs Analysis, and Powerful
data processing. The soware is user-friendly and mostly complies with GLP/GMP standards, offering user management, log, and data tracing funcons.

SPECIFICATIONS:
