DLAB DL-SUB02 multifunctional horizontal electrophoresis tank with interchangeable gel trays, combs and electrode leads
DLAB DL-SUB02 electrophoresis equipment shown in a modern laboratory, using the actual product photograph
DLAB DL-SUB02 electrophoresis equipment with five model-specific features and specifications highlighted
  • DLAB DL-SUB02 multifunctional horizontal electrophoresis tank with interchangeable gel trays, combs and electrode leads
  • DLAB DL-SUB02 electrophoresis equipment shown in a modern laboratory, using the actual product photograph

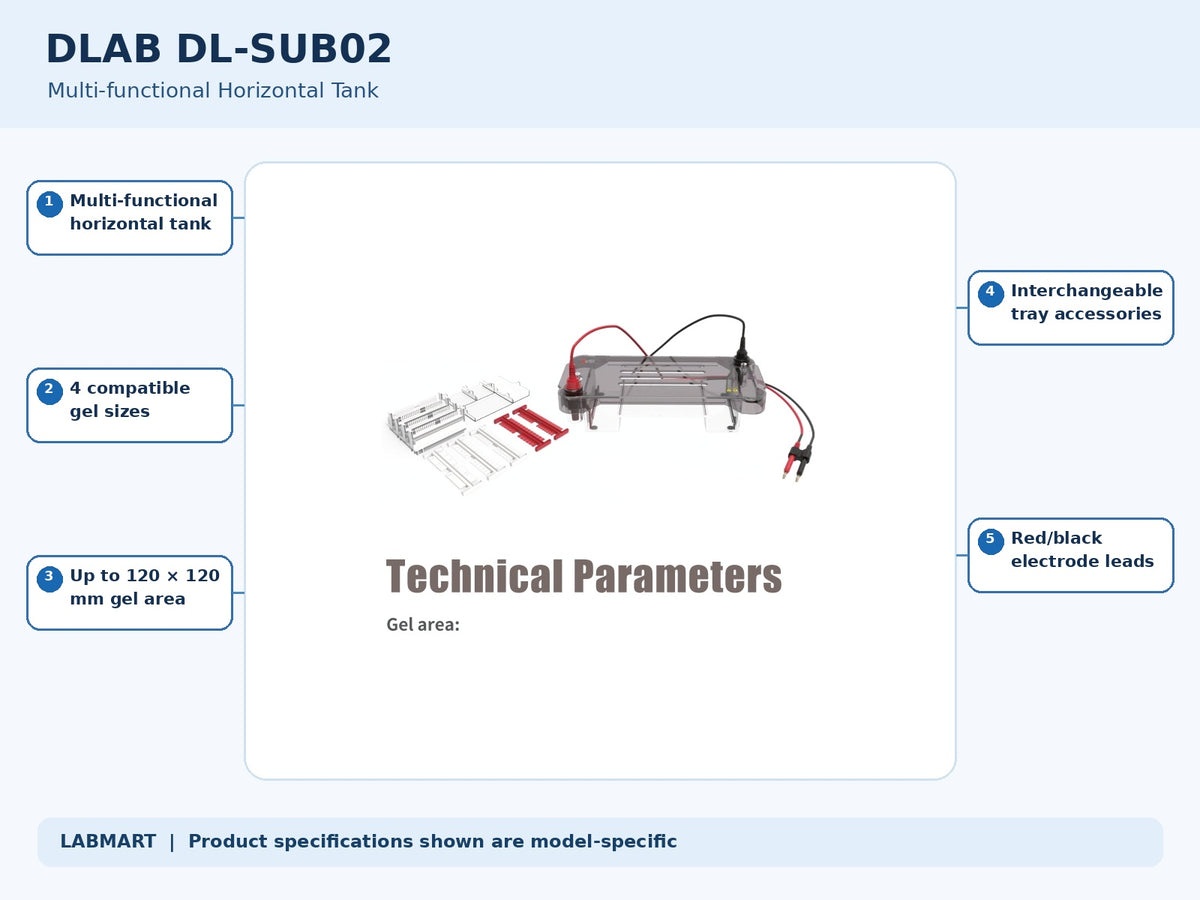

  • DLAB DL-SUB02 electrophoresis equipment with five model-specific features and specifications highlighted

The DLAB DL-SUB02 is a multi-functional horizontal electrophoresis tank for rapid separation, identification and preparation of DNA and determination of its molecular weight. Four gel sizes can be made, with a 700 mL buffer volume.

Key features

  • Suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight
  • Polycarbonate injection moulding, no leakage
  • Four different gel sizes can be made, and two types of gel makers are optional
  • Limit function prevents reverse installation of positive and negative electrodes
  • Detachable electrodes for easy replacement and maintenance
  • 99.99% high-purity platinum electrode for best conductivity and anti-ageing
  • Large and small glue boxes designed as one front and back; the big glue box holds up to four rows of combs at a time
  • Fluorescent ruler on the bottom of the tray

Technical specifications

Model DL-SUB02
Type Multi-functional horizontal electrophoresis tank
Large gel 120 × 120 mm
Wide gel 120 × 60 mm
Long gel 60 × 120 mm
Small gel 60 × 60 mm
Sample comb wells 2, 3, 6, 8, 11, 13, 18, 25
Buffer volume 700 mL
Delivery period 10 days

Supplied with

Lid with cables 1 set, body tank with electrodes 1 set, gel box 1, large gel tray (120 × 120) 1, wide gel tray (120 × 60) 1, long gel tray (60 × 120) 1, small gel tray (60 × 60) 2, sample comb 2+3 well 1, 6+13 well 1, 8+18 well 1, 11+25 well 4. Spare parts, trays and extra combs are optional variants.

Delivery Period – 10 days.

Frequently asked questions

What is the DL-SUB02 used for?

The DLAB DL-SUB02 is a multi-functional horizontal electrophoresis tank for rapid separation, identification and preparation of DNA and determination of its molecular weight.

Can I order extra accessories or blocks?

Yes. Optional accessories are listed as separate variants with their own part numbers.

Which voltage does it work on?

See the specification table for the voltage and frequency stated by DLAB.

Is installation or training available?

Please contact Labmart; this is confirmed in your quotation.

Is the brand DLAB original?

Yes, supplied under the DLAB brand from the DLAB price list FY26-27.

Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB DL-SUB02?

Yes. Labmart supplies against a GST invoice and quotes for colleges, hospitals, pharma and government labs. Contact us with your quantity for a bulk quotation.

What is the HSN code?

The HSN code depends on the product classification and is confirmed on your quotation and invoice.

What warranty does it carry?

Warranty terms are confirmed in your quotation; please ask us before ordering.

What is the delivery period?

Delivery Period – 10 days.

What is supplied with the DL-SUB02?

Lid with cables 1 set, body tank with electrodes 1 set, gel box 1, large gel tray (120 × 120) 1, wide gel tray (120 × 60) 1, long gel tray (60 × 120) 1, small gel tray (60 × 60) 2, sample comb 2+3 well 1, 6+13 well 1, 8+18 well 1, 11+25 well 4. Spare parts, trays and extra combs are optional variants.

DLAB

DLAB DL-SUB02 Multi-functional Horizontal Electrophoresis Tank, 4 Gel Sizes up to 120 × 120 mm

SKU 18901255
Rs.37,899.00
Rs.23,699.00

The DLAB DL-SUB02 is a multi-functional horizontal electrophoresis tank for rapid separation, identification and preparation of DNA and determination of its molecular weight. Four gel sizes can be made, with a 700 mL buffer volume.

Key features

  • Suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight
  • Polycarbonate injection moulding, no leakage
  • Four different gel sizes can be made, and two types of gel makers are optional
  • Limit function prevents reverse installation of positive and negative electrodes
  • Detachable electrodes for easy replacement and maintenance
  • 99.99% high-purity platinum electrode for best conductivity and anti-ageing
  • Large and small glue boxes designed as one front and back; the big glue box holds up to four rows of combs at a time
  • Fluorescent ruler on the bottom of the tray

Technical specifications

Model DL-SUB02
Type Multi-functional horizontal electrophoresis tank
Large gel 120 × 120 mm
Wide gel 120 × 60 mm
Long gel 60 × 120 mm
Small gel 60 × 60 mm
Sample comb wells 2, 3, 6, 8, 11, 13, 18, 25
Buffer volume 700 mL
Delivery period 10 days

Supplied with

Lid with cables 1 set, body tank with electrodes 1 set, gel box 1, large gel tray (120 × 120) 1, wide gel tray (120 × 60) 1, long gel tray (60 × 120) 1, small gel tray (60 × 60) 2, sample comb 2+3 well 1, 6+13 well 1, 8+18 well 1, 11+25 well 4. Spare parts, trays and extra combs are optional variants.

Delivery Period – 10 days.

Frequently asked questions

What is the DL-SUB02 used for?

The DLAB DL-SUB02 is a multi-functional horizontal electrophoresis tank for rapid separation, identification and preparation of DNA and determination of its molecular weight.

Can I order extra accessories or blocks?

Yes. Optional accessories are listed as separate variants with their own part numbers.

Which voltage does it work on?

See the specification table for the voltage and frequency stated by DLAB.

Is installation or training available?

Please contact Labmart; this is confirmed in your quotation.

Is the brand DLAB original?

Yes, supplied under the DLAB brand from the DLAB price list FY26-27.

Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB DL-SUB02?

Yes. Labmart supplies against a GST invoice and quotes for colleges, hospitals, pharma and government labs. Contact us with your quantity for a bulk quotation.

What is the HSN code?

The HSN code depends on the product classification and is confirmed on your quotation and invoice.

What warranty does it carry?

Warranty terms are confirmed in your quotation; please ask us before ordering.

What is the delivery period?

Delivery Period – 10 days.

What is supplied with the DL-SUB02?

Lid with cables 1 set, body tank with electrodes 1 set, gel box 1, large gel tray (120 × 120) 1, wide gel tray (120 × 60) 1, long gel tray (60 × 120) 1, small gel tray (60 × 60) 2, sample comb 2+3 well 1, 6+13 well 1, 8+18 well 1, 11+25 well 4. Spare parts, trays and extra combs are optional variants.
Rs.37,899.00
Rs.23,699.00
Configuration:

GST Invoice included
(Save 18% on business purchases)
Get a Quote-Request a Bulk Quote
DLAB DL-SUB02 multifunctional horizontal electrophoresis tank with interchangeable gel trays, combs and electrode leads DLAB DL-SUB02 electrophoresis equipment shown in a modern laboratory, using the actual product photograph DLAB DL-SUB02 electrophoresis equipment with five model-specific features and specifications highlighted
DLAB DL-SUB02 multifunctional horizontal electrophoresis tank with interchangeable gel trays, combs and electrode leads DLAB DL-SUB02 electrophoresis equipment shown in a modern laboratory, using the actual product photograph DLAB DL-SUB02 electrophoresis equipment with five model-specific features and specifications highlighted

  • Free Shipping

    Orders above Rs. 1000.

  • On Time Delivery

    Within 7 days.

  • Money Back Guarantee

    14 day Return*

  • Service Support

    Online Installation Support.

Product Description

The DLAB DL-SUB02 is a multi-functional horizontal electrophoresis tank for rapid separation, identification and preparation of DNA and determination of its molecular weight. Four gel sizes can be made, with a 700 mL buffer volume.

Key features

  • Suitable for rapid separation, identification, preparation of DNA and determination of its molecular weight
  • Polycarbonate injection moulding, no leakage
  • Four different gel sizes can be made, and two types of gel makers are optional
  • Limit function prevents reverse installation of positive and negative electrodes
  • Detachable electrodes for easy replacement and maintenance
  • 99.99% high-purity platinum electrode for best conductivity and anti-ageing
  • Large and small glue boxes designed as one front and back; the big glue box holds up to four rows of combs at a time
  • Fluorescent ruler on the bottom of the tray

Technical specifications

Model DL-SUB02
Type Multi-functional horizontal electrophoresis tank
Large gel 120 × 120 mm
Wide gel 120 × 60 mm
Long gel 60 × 120 mm
Small gel 60 × 60 mm
Sample comb wells 2, 3, 6, 8, 11, 13, 18, 25
Buffer volume 700 mL
Delivery period 10 days

Supplied with

Lid with cables 1 set, body tank with electrodes 1 set, gel box 1, large gel tray (120 × 120) 1, wide gel tray (120 × 60) 1, long gel tray (60 × 120) 1, small gel tray (60 × 60) 2, sample comb 2+3 well 1, 6+13 well 1, 8+18 well 1, 11+25 well 4. Spare parts, trays and extra combs are optional variants.

Delivery Period – 10 days.

Frequently asked questions

What is the DL-SUB02 used for?

The DLAB DL-SUB02 is a multi-functional horizontal electrophoresis tank for rapid separation, identification and preparation of DNA and determination of its molecular weight.

Can I order extra accessories or blocks?

Yes. Optional accessories are listed as separate variants with their own part numbers.

Which voltage does it work on?

See the specification table for the voltage and frequency stated by DLAB.

Is installation or training available?

Please contact Labmart; this is confirmed in your quotation.

Is the brand DLAB original?

Yes, supplied under the DLAB brand from the DLAB price list FY26-27.

Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB DL-SUB02?

Yes. Labmart supplies against a GST invoice and quotes for colleges, hospitals, pharma and government labs. Contact us with your quantity for a bulk quotation.

What is the HSN code?

The HSN code depends on the product classification and is confirmed on your quotation and invoice.

What warranty does it carry?

Warranty terms are confirmed in your quotation; please ask us before ordering.

What is the delivery period?

Delivery Period – 10 days.

What is supplied with the DL-SUB02?

Lid with cables 1 set, body tank with electrodes 1 set, gel box 1, large gel tray (120 × 120) 1, wide gel tray (120 × 60) 1, long gel tray (60 × 120) 1, small gel tray (60 × 60) 2, sample comb 2+3 well 1, 6+13 well 1, 8+18 well 1, 11+25 well 4. Spare parts, trays and extra combs are optional variants.
