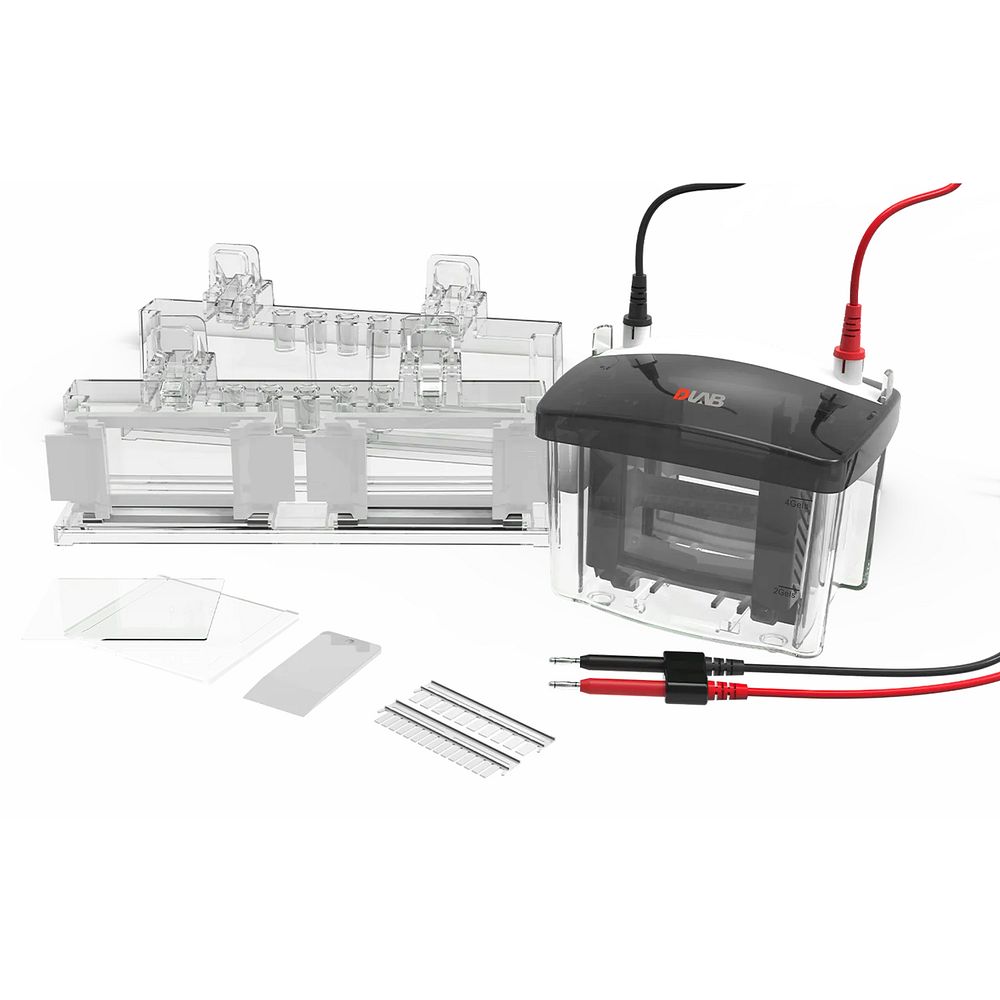

DLAB DL-Mini04 vertical electrophoresis tank with gel casting frame, glass plates, combs and electrode leads

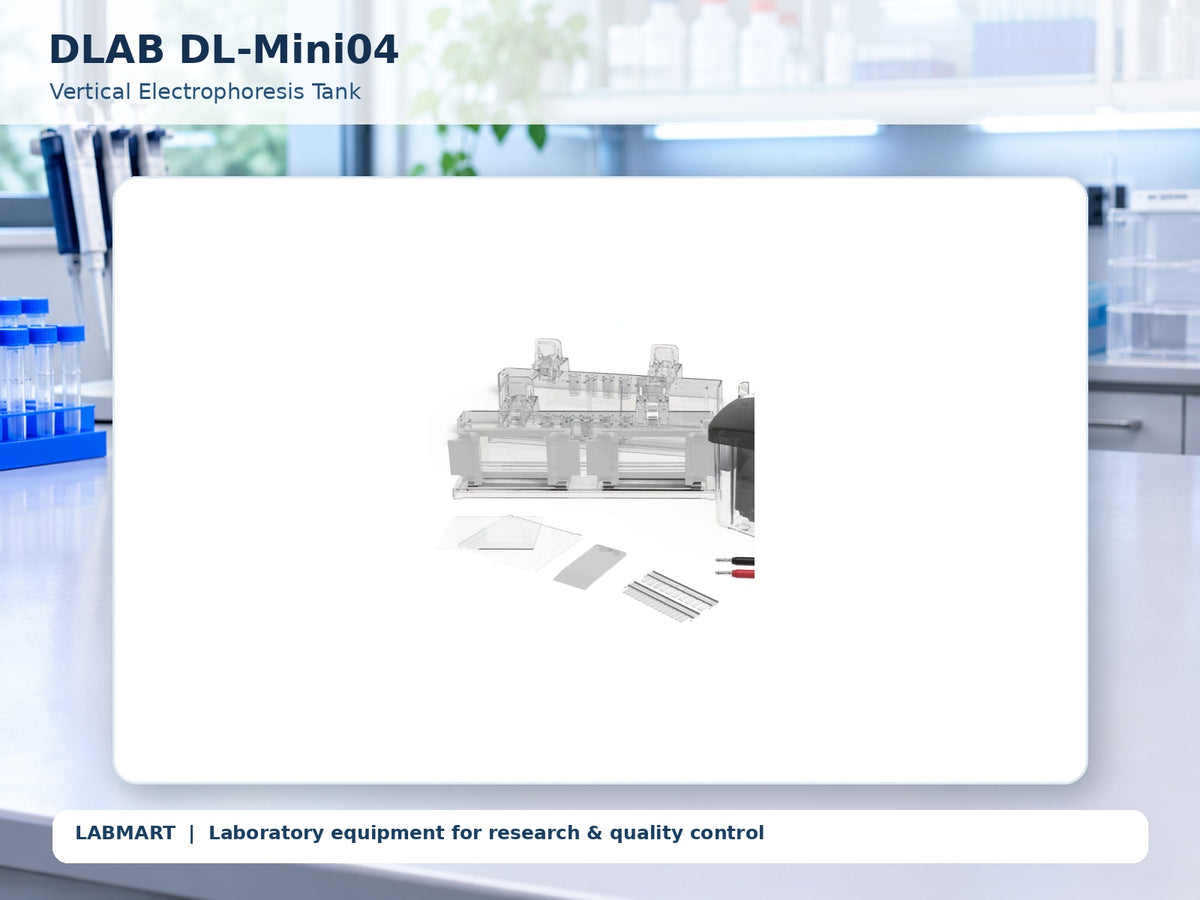

DLAB DL-Mini04 electrophoresis equipment shown in a modern laboratory, using the actual product photograph

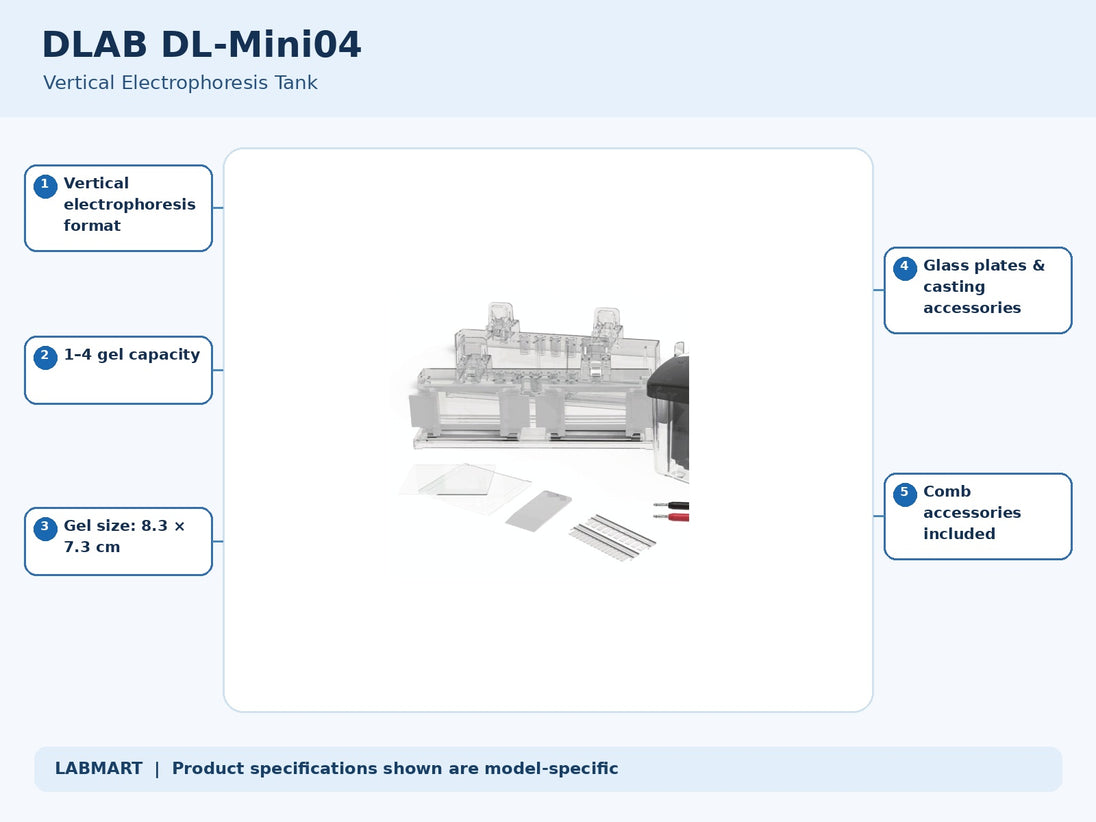

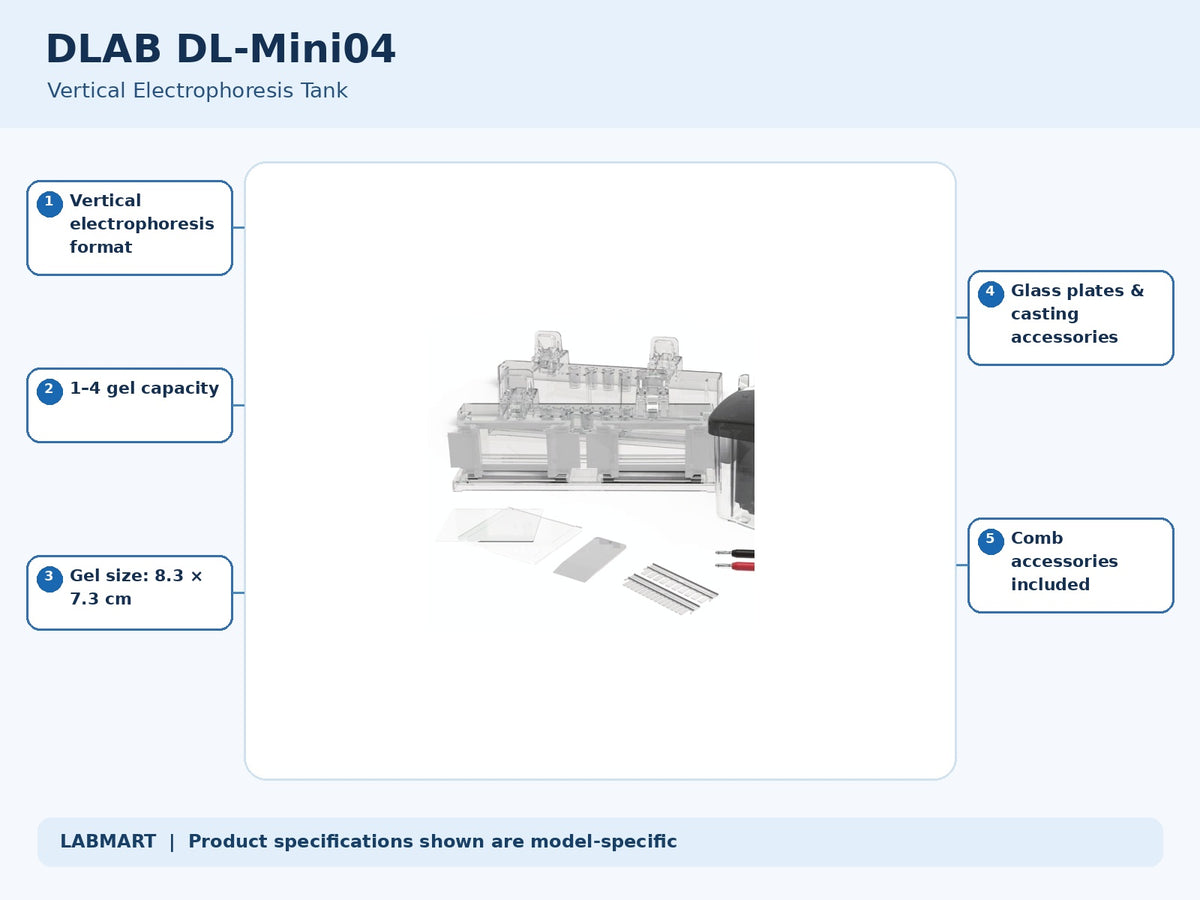

DLAB DL-Mini04 electrophoresis equipment with five model-specific features and specifications highlighted
  • DLAB DL-Mini04 vertical electrophoresis tank with gel casting frame, glass plates, combs and electrode leads
  • DLAB DL-Mini04 electrophoresis equipment shown in a modern laboratory, using the actual product photograph
  • DLAB DL-Mini04 electrophoresis equipment with five model-specific features and specifications highlighted

The DLAB DL-Mini04 is a vertical electrophoresis tank that runs one to four mini gels (8.3 × 7.3 cm hand-cast) at the same time for SDS-PAGE and other vertical electrophoresis.

Key features

  • Edge gasket permanently fixed on the long glass plate for precise alignment and no glue leakage
  • Cam-lock gel frame aligns the glass plate precisely on any plane
  • Special plastic combs that do not inhibit gel polymerization; built-in ridges avoid air contact
  • Thickened long glass plate, not easily broken
  • One-piece gel filling rack arranged in parallel; two gels can be observed at the same time
  • SDS-PAGE electrophoresis time: 45 minutes (200 V constant voltage)
  • High-precision platinum electrode wire for best conductivity
  • Compatible with the DL-ZY03 for blot transfer

Technical specifications

Model DL-Mini04
Number of gels 1–4
Gel thickness 0.75, 1, 1.5 mm
Sample comb teeth 10 (optional)
Glass plate size Short plate 10.1 × 7.3 cm; long plate 10.1 × 8.2 cm
Gel size Hand-cast 8.3 × 7.3 cm; precast 8.6 × 6.8 cm
Delivery period 10 days

Supplied with

Lid with cables 1 set, bottom tank 1, electrode main core 1 set, electrode sub-core 1 set, gel glass thick plate 5, gel glass thin plate 5, 10-well comb 5, gel casting stand 2, casing frame 4, single gel baffle 1, gel releaser 1. 1.0 mm gel is prepared by default. Spare parts and glass plate sets are optional variants.

Delivery Period – 10 days.

Frequently asked questions

What is the DL-Mini04 used for?

The DLAB DL-Mini04 is a vertical electrophoresis tank that runs one to four mini gels (8.3 × 7.3 cm hand-cast) at the same time for SDS-PAGE and other vertical electrophoresis.

Can I order extra accessories or blocks?

Yes. Optional accessories are listed as separate variants with their own part numbers.

Which voltage does it work on?

See the specification table for the voltage and frequency stated by DLAB.

Is installation or training available?

Please contact Labmart; this is confirmed in your quotation.

Is the brand DLAB original?

Yes, supplied under the DLAB brand from the DLAB price list FY26-27.

Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB DL-Mini04?

Yes. Labmart supplies against a GST invoice and quotes for colleges, hospitals, pharma and government labs. Contact us with your quantity for a bulk quotation.

What is the HSN code?

The HSN code depends on the product classification and is confirmed on your quotation and invoice.

What warranty does it carry?

Warranty terms are confirmed in your quotation; please ask us before ordering.

What is the delivery period?

Delivery Period – 10 days.

What is supplied with the DL-Mini04?

Lid with cables 1 set, bottom tank 1, electrode main core 1 set, electrode sub-core 1 set, gel glass thick plate 5, gel glass thin plate 5, 10-well comb 5, gel casting stand 2, casing frame 4, single gel baffle 1, gel releaser 1. 1.0 mm gel is prepared by default. Spare parts and glass plate sets are optional variants.

DLAB

DLAB DL-Mini04 Vertical Electrophoresis Tank, 1–4 Gels 8.3 × 7.3 cm

SKU 18901227
Rs.111,699.00
Rs.69,799.00

The DLAB DL-Mini04 is a vertical electrophoresis tank that runs one to four mini gels (8.3 × 7.3 cm hand-cast) at the same time for SDS-PAGE and other vertical electrophoresis.

Key features

  • Edge gasket permanently fixed on the long glass plate for precise alignment and no glue leakage
  • Cam-lock gel frame aligns the glass plate precisely on any plane
  • Special plastic combs that do not inhibit gel polymerization; built-in ridges avoid air contact
  • Thickened long glass plate, not easily broken
  • One-piece gel filling rack arranged in parallel; two gels can be observed at the same time
  • SDS-PAGE electrophoresis time: 45 minutes (200 V constant voltage)
  • High-precision platinum electrode wire for best conductivity
  • Compatible with the DL-ZY03 for blot transfer

Technical specifications

Model DL-Mini04
Number of gels 1–4
Gel thickness 0.75, 1, 1.5 mm
Sample comb teeth 10 (optional)
Glass plate size Short plate 10.1 × 7.3 cm; long plate 10.1 × 8.2 cm
Gel size Hand-cast 8.3 × 7.3 cm; precast 8.6 × 6.8 cm
Delivery period 10 days

Supplied with

Lid with cables 1 set, bottom tank 1, electrode main core 1 set, electrode sub-core 1 set, gel glass thick plate 5, gel glass thin plate 5, 10-well comb 5, gel casting stand 2, casing frame 4, single gel baffle 1, gel releaser 1. 1.0 mm gel is prepared by default. Spare parts and glass plate sets are optional variants.

Delivery Period – 10 days.

Frequently asked questions

What is the DL-Mini04 used for?

The DLAB DL-Mini04 is a vertical electrophoresis tank that runs one to four mini gels (8.3 × 7.3 cm hand-cast) at the same time for SDS-PAGE and other vertical electrophoresis.

Can I order extra accessories or blocks?

Yes. Optional accessories are listed as separate variants with their own part numbers.

Which voltage does it work on?

See the specification table for the voltage and frequency stated by DLAB.

Is installation or training available?

Please contact Labmart; this is confirmed in your quotation.

Is the brand DLAB original?

Yes, supplied under the DLAB brand from the DLAB price list FY26-27.

Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB DL-Mini04?

Yes. Labmart supplies against a GST invoice and quotes for colleges, hospitals, pharma and government labs. Contact us with your quantity for a bulk quotation.

What is the HSN code?

The HSN code depends on the product classification and is confirmed on your quotation and invoice.

What warranty does it carry?

Warranty terms are confirmed in your quotation; please ask us before ordering.

What is the delivery period?

Delivery Period – 10 days.

What is supplied with the DL-Mini04?

Lid with cables 1 set, bottom tank 1, electrode main core 1 set, electrode sub-core 1 set, gel glass thick plate 5, gel glass thin plate 5, 10-well comb 5, gel casting stand 2, casing frame 4, single gel baffle 1, gel releaser 1. 1.0 mm gel is prepared by default. Spare parts and glass plate sets are optional variants.
Rs.111,699.00
Rs.69,799.00
Configuration:

GST Invoice included
(Save 18% on business purchases)
Get a Quote-Request a Bulk Quote
DLAB DL-Mini04 vertical electrophoresis tank with gel casting frame, glass plates, combs and electrode leads DLAB DL-Mini04 electrophoresis equipment shown in a modern laboratory, using the actual product photograph DLAB DL-Mini04 electrophoresis equipment with five model-specific features and specifications highlighted
DLAB DL-Mini04 vertical electrophoresis tank with gel casting frame, glass plates, combs and electrode leads DLAB DL-Mini04 electrophoresis equipment shown in a modern laboratory, using the actual product photograph DLAB DL-Mini04 electrophoresis equipment with five model-specific features and specifications highlighted

  • Free Shipping

    Orders above Rs. 1000.

  • On Time Delivery

    Within 7 days.

  • Money Back Guarantee

    14 day Return*

  • Service Support

    Online Installation Support.

Product Description

The DLAB DL-Mini04 is a vertical electrophoresis tank that runs one to four mini gels (8.3 × 7.3 cm hand-cast) at the same time for SDS-PAGE and other vertical electrophoresis.

Key features

  • Edge gasket permanently fixed on the long glass plate for precise alignment and no glue leakage
  • Cam-lock gel frame aligns the glass plate precisely on any plane
  • Special plastic combs that do not inhibit gel polymerization; built-in ridges avoid air contact
  • Thickened long glass plate, not easily broken
  • One-piece gel filling rack arranged in parallel; two gels can be observed at the same time
  • SDS-PAGE electrophoresis time: 45 minutes (200 V constant voltage)
  • High-precision platinum electrode wire for best conductivity
  • Compatible with the DL-ZY03 for blot transfer

Technical specifications

Model DL-Mini04
Number of gels 1–4
Gel thickness 0.75, 1, 1.5 mm
Sample comb teeth 10 (optional)
Glass plate size Short plate 10.1 × 7.3 cm; long plate 10.1 × 8.2 cm
Gel size Hand-cast 8.3 × 7.3 cm; precast 8.6 × 6.8 cm
Delivery period 10 days

Supplied with

Lid with cables 1 set, bottom tank 1, electrode main core 1 set, electrode sub-core 1 set, gel glass thick plate 5, gel glass thin plate 5, 10-well comb 5, gel casting stand 2, casing frame 4, single gel baffle 1, gel releaser 1. 1.0 mm gel is prepared by default. Spare parts and glass plate sets are optional variants.

Delivery Period – 10 days.

Frequently asked questions

What is the DL-Mini04 used for?

The DLAB DL-Mini04 is a vertical electrophoresis tank that runs one to four mini gels (8.3 × 7.3 cm hand-cast) at the same time for SDS-PAGE and other vertical electrophoresis.

Can I order extra accessories or blocks?

Yes. Optional accessories are listed as separate variants with their own part numbers.

Which voltage does it work on?

See the specification table for the voltage and frequency stated by DLAB.

Is installation or training available?

Please contact Labmart; this is confirmed in your quotation.

Is the brand DLAB original?

Yes, supplied under the DLAB brand from the DLAB price list FY26-27.

Does Labmart provide a GST invoice and bulk or institutional quotation for the DLAB DL-Mini04?

Yes. Labmart supplies against a GST invoice and quotes for colleges, hospitals, pharma and government labs. Contact us with your quantity for a bulk quotation.

What is the HSN code?

The HSN code depends on the product classification and is confirmed on your quotation and invoice.

What warranty does it carry?

Warranty terms are confirmed in your quotation; please ask us before ordering.

What is the delivery period?

Delivery Period – 10 days.

What is supplied with the DL-Mini04?

Lid with cables 1 set, bottom tank 1, electrode main core 1 set, electrode sub-core 1 set, gel glass thick plate 5, gel glass thin plate 5, 10-well comb 5, gel casting stand 2, casing frame 4, single gel baffle 1, gel releaser 1. 1.0 mm gel is prepared by default. Spare parts and glass plate sets are optional variants.
