SALIENT FEATURES
Suitable for wide range of viscosity samples.
LCD screen with the night visual funcon.
16 bit micro processor control.
Stepless speed regulaon.
RS232C
RTD temperature probe.
Shear rate , Shear force display
Oponal : Data collecng and Analyzing soware
SPECIFICATIONS:
|

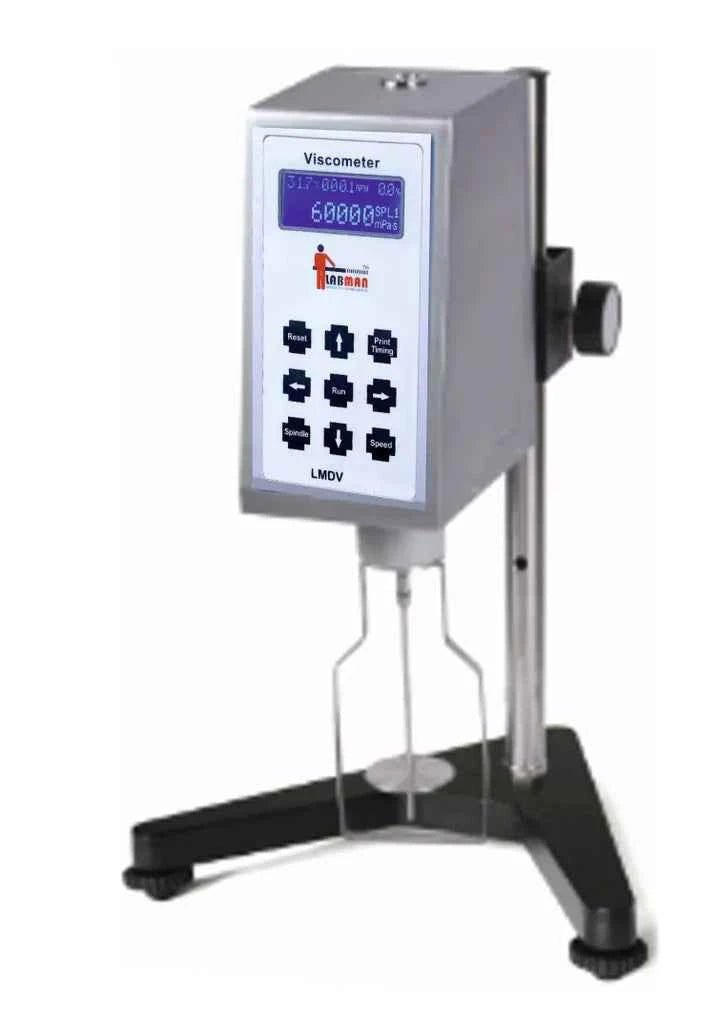

MODEL |
LMDV400R |
|
Make |
LABWAN |
|
Measuring Range mpa.s |
40 to 40,00,0000 |
|
No of Spindle |
6 (R2, R3, R4, R5, R6, R7) |
|
Speed range (r.p.m.) |
0.1 to 200 |
|
No. of Speed |
2000 |
|
Accuracy |
±1%(FS) |
|
Repeatability |
±0.5% (FS) |
|
Speed Type |
Selectable Stepless speed (nonpolar shift) |
|
Shear rate , Shear Force Display |
Yes |
|
Temperature Monitoring |
Yes |
|
Temperature Resolution |
±0.1 C |
|
Display |
LCD |
|
Output |
RS232C Interface |
|
Power supply |
Adaptor, Using AC 220V / 50Hz |
|
Packing Dimension (LxWxH) |
425 x 375 x 545mm |
|
Gross weight |
14kg |
SALIENT FEATURES
Suitable for wide range of viscosity samples.
LCD screen with the night visual funcon.
16 bit micro processor control.
Stepless speed regulaon.
RS232C
RTD temperature probe.
Shear rate , Shear force display
Oponal : Data collecng and Analyzing soware
SPECIFICATIONS:
|
MODEL |
LMDV400R |
|
Make |
LABWAN |
|
Measuring Range mpa.s |
40 to 40,00,0000 |
|
No of Spindle |
6 (R2, R3, R4, R5, R6, R7) |
|
Speed range (r.p.m.) |
0.1 to 200 |
|
No. of Speed |
2000 |
|
Accuracy |
±1%(FS) |
|
Repeatability |
±0.5% (FS) |
|
Speed Type |
Selectable Stepless speed (nonpolar shift) |
|
Shear rate , Shear Force Display |
Yes |
|
Temperature Monitoring |
Yes |
|
Temperature Resolution |
±0.1 C |
|
Display |
LCD |
|
Output |
RS232C Interface |
|
Power supply |
Adaptor, Using AC 220V / 50Hz |
|
Packing Dimension (LxWxH) |
425 x 375 x 545mm |
|
Gross weight |
14kg |
- Regular price
- Rs.0.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
SALIENT FEATURES
Suitable for wide range of viscosity samples.
LCD screen with the night visual funcon.
16 bit micro processor control.
Stepless speed regulaon.
RS232C
RTD temperature probe.
Shear rate , Shear force display
Oponal : Data collecng and Analyzing soware
SPECIFICATIONS:
|
MODEL |
LMDV400R |
|
Make |
LABWAN |
|
Measuring Range mpa.s |
40 to 40,00,0000 |
|
No of Spindle |
6 (R2, R3, R4, R5, R6, R7) |
|
Speed range (r.p.m.) |
0.1 to 200 |
|
No. of Speed |
2000 |
|
Accuracy |
±1%(FS) |
|
Repeatability |
±0.5% (FS) |
|
Speed Type |
Selectable Stepless speed (nonpolar shift) |
|
Shear rate , Shear Force Display |
Yes |
|
Temperature Monitoring |
Yes |
|
Temperature Resolution |
±0.1 C |
|
Display |
LCD |
|
Output |
RS232C Interface |
|
Power supply |
Adaptor, Using AC 220V / 50Hz |
|
Packing Dimension (LxWxH) |
425 x 375 x 545mm |
|
Gross weight |
14kg |
