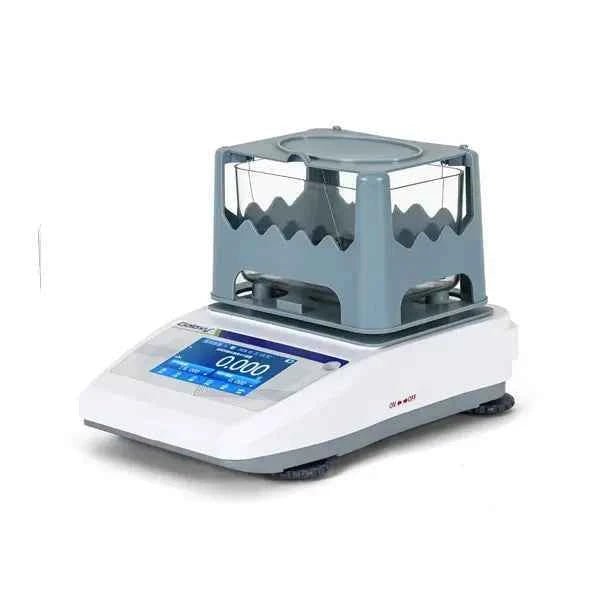

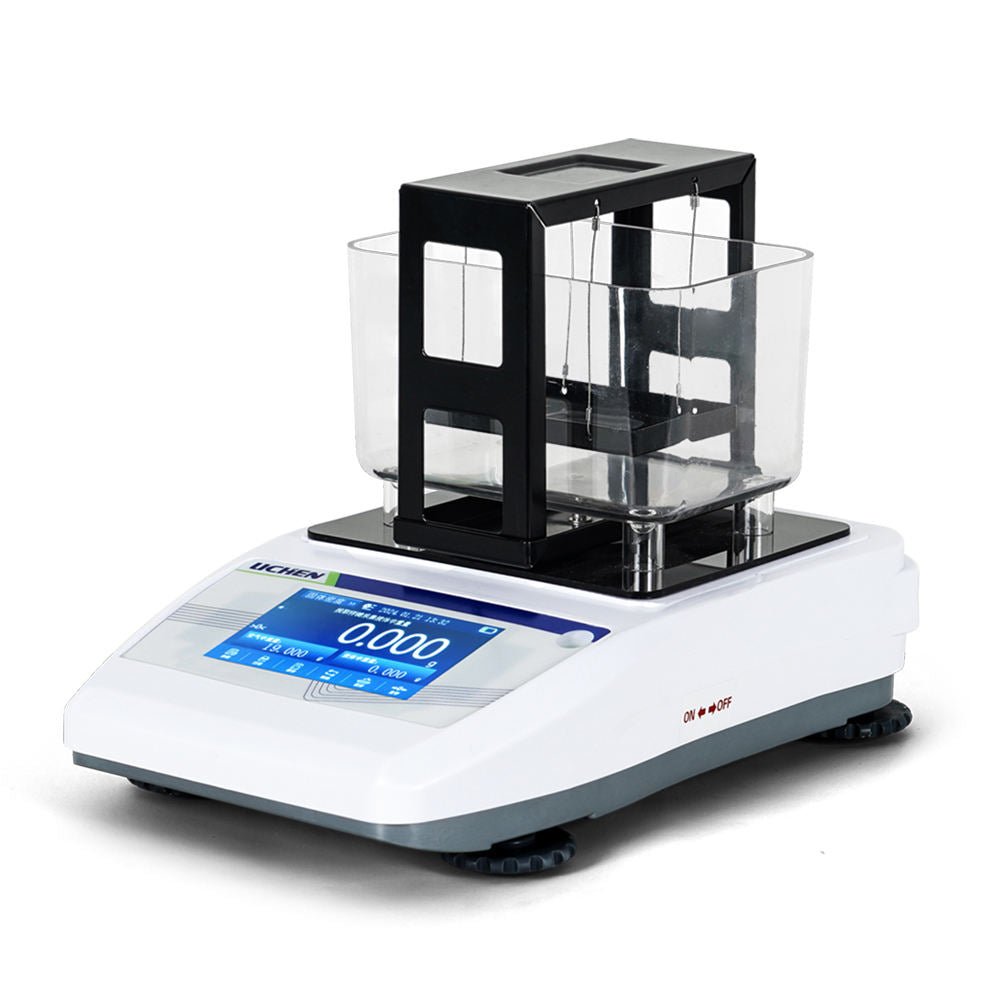

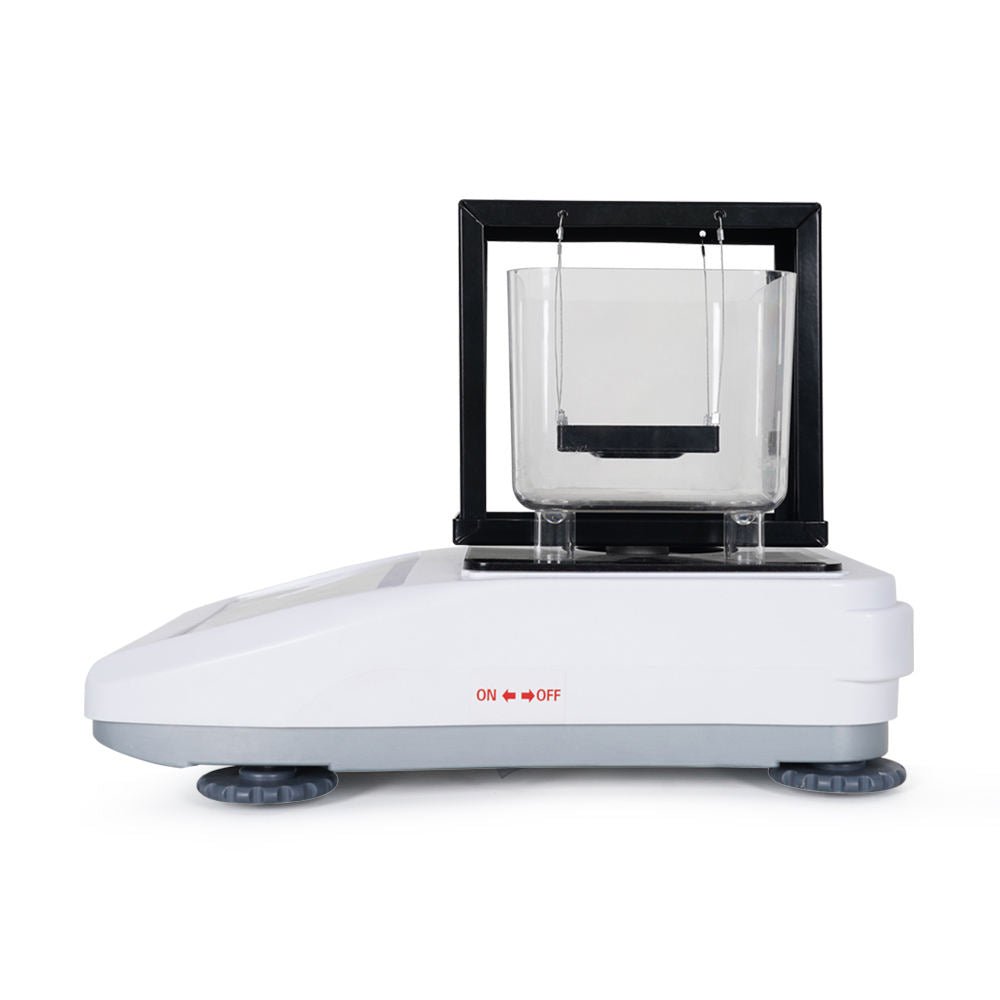

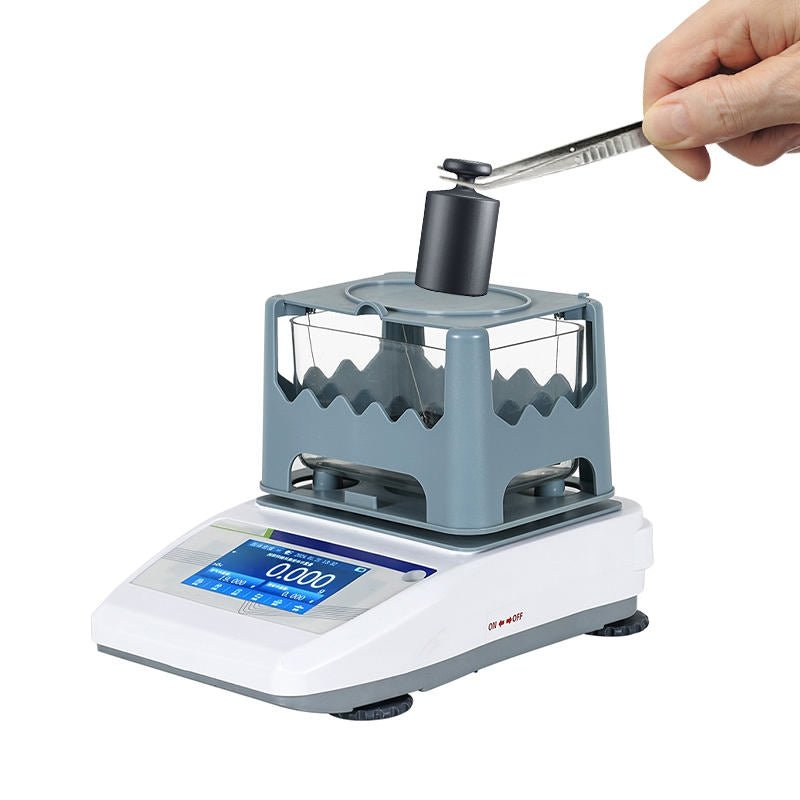

A high-precision instrument designed for accurate measurement of solid material density using advanced displacement and weighing technology. Ideal for laboratories, quality control, research, and industrial applications, this density meter delivers fast, reliable results with simple operation and digital accuracy. Equipped with a clear display and robust measurement platform, it ensures consistent performance for plastics, metals, rubbers, ceramics, and other solid samples.

SALIENT FEATURES:

• Even can measure floating samples
• No need of manual calculation
• Easy measurement within 10 seconds
• Easy to use touchscreen and easy to use UI
• Water as well as any other liquid medium can also be used.

Model-PG-DM1

Make-Galaxy

Density Range- 0.001 to 99.999g/cm³

Sample Types- Any irregular solid, particle, or floating body with density >1or <1

Max Weighing Capacity- 220g 0.001g (1mg)

Weighing Resolution Units- Density, volume, volume percentage, porosity, water absorption, average density, minimum density, maximum density ± 0.005 g

Display- 4.5" Touch Screen

Sensor- German Loadcell

Calibration- 10 to 40°C

No. of Storage-100 memories RS232C

Output Power Supply- AC 220V / 50 Hz

Dimensions & Weight - 200 × 290 × 200 mm & 3 kg

STANDARD ACCESSORIES:

• Acrylic Tank
• Adapter
• Airtight windshield
• Stainless Steel angle
• Anti-floating frame
• Floating sample ball
• Tweezers
• Thermometer
• Instruction Manual

🏭 Use Cases by Industry

Plastics Industry

• Verify material consistency in raw polymer granules

• Detect filler content variations (e.g., CaCO₃ in plastics)

• Quality control for injection-molded parts

• Ensure compliance with ASTM / ISO density standards

👉 Helps reduce defects and ensures uniform product quality

🧵 Rubber Industry

• Measure density of rubber compounds and vulcanized products

• Identify improper mixing or air entrapment

• Compare batch-to-batch consistency

• Evaluate product durability and composition

👉 Critical for tyre, seals, and gasket manufacturing

💧 Liquids (Indirect / Supporting Use)

• Use water or other liquids as immersion medium for solid testing

• Determine density of irregular or floating samples

• Measure absorption or porosity of materials

👉 Supports advanced testing like water absorption & porosity analysis

🔩 Metals & Alloys

• Verify purity of metals (detect impurities or voids)

• Check casting quality (porosity detection)

• Identify alloy composition variations

• Research & metallurgy applications

👉 Ensures structural integrity and compliance

❓ FAQs

1. How does this density balance work?

It works on Archimedes’ principle, measuring weight in air and in liquid to calculate density automatically.

2. What types of samples can it measure?

It can measure:

• Solid samples (regular & irregular shapes)

• Floating materials

• Particles and porous materials
  👉 Density range: 0.001 to 99.999 g/cm³

3. Does it require manual calculation?

No. The device provides automatic density calculation via touchscreen interface.

4. How fast are the results?

Results are generated in ~10 seconds, making it suitable for QC environments.

5. Can different liquids be used for testing?

Yes. Water or other liquids can be used depending on the application and material properties.

✅ Key Benefits

⚡ Fast & Efficient

• Results in seconds → boosts lab productivity

🎯 High Accuracy

• Resolution up to 0.001 g (1 mg)

• Reliable repeatable measurements

🧠 Smart & User-Friendly

• Touchscreen interface

• No manual calculations required

🔄 Versatile Applications

• Works for plastics, rubber, metals, ceramics, and floating samples

• Measures multiple parameters (density, porosity, absorption)

🧪 Ideal for QC & R&D

• Perfect for laboratories, manufacturing, and research

• Ensures product consistency and compliance
