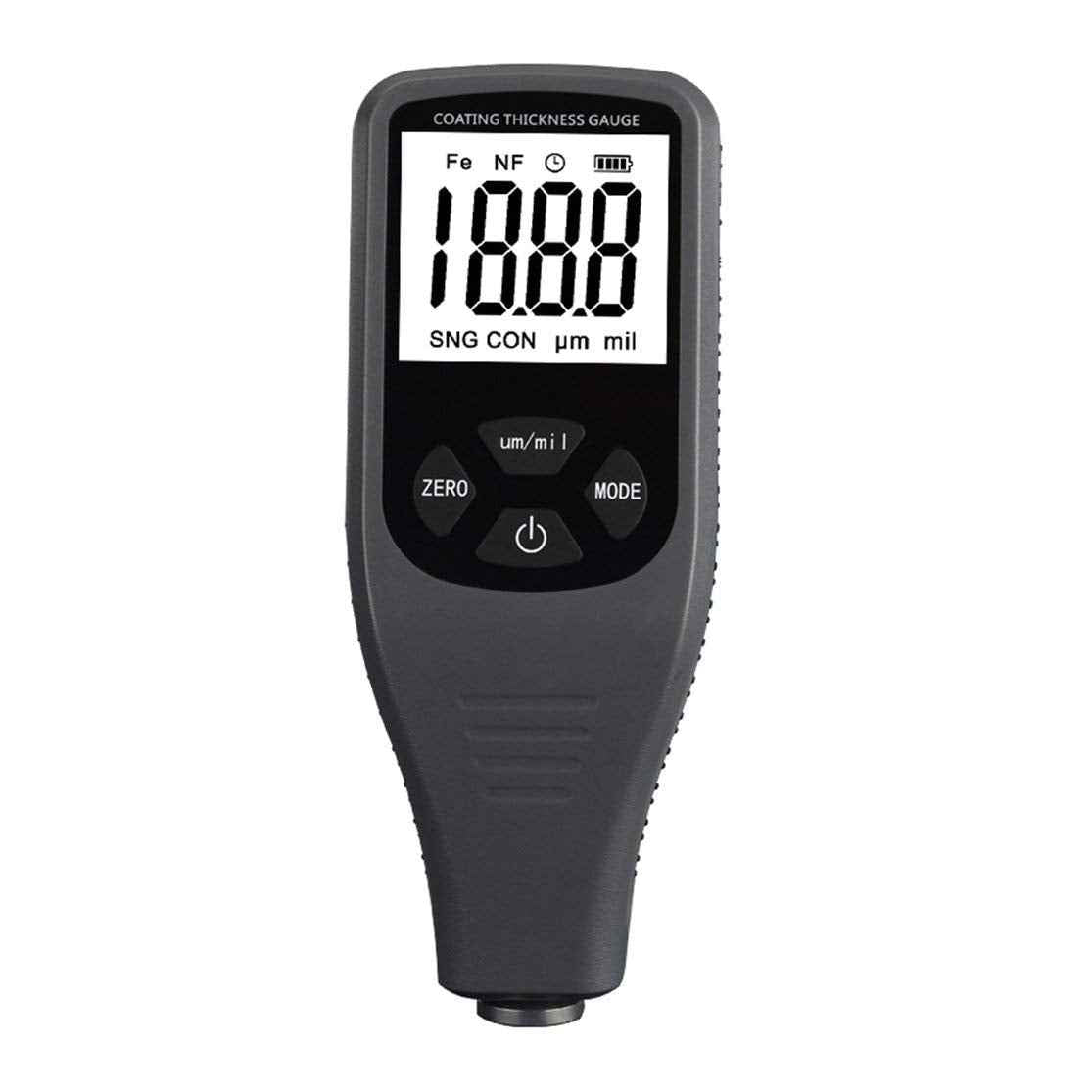

The Acutek CTG-800 is a coating thickness gauge for measuring paint, plating and coating thickness on ferrous and non-ferrous metals over 0 to 1300 μm.

Key features

• Ferrous and non-ferrous coatings
• 0–1300 μm range, 0.1 μm resolution
• μm and mil units
• Magnetic induction and eddy current principles

Technical specifications

Supplied with

Coating thickness gauge as per manufacturer packing (please confirm exact inclusions with Labmart).

Frequently asked questions

What is the measuring range of the CTG-800?

0 to 1300 μm.

What are the accuracy and resolution of the CTG-800?

Resolution 0.1 μm / 0.01 mil; accuracy ±3% + 1 μm.

What power does the CTG-800 use?

4 × 1.5 V (AAA).

What is the CTG-800 used for?

Measuring paint, plating and coating thickness on steel and aluminium.

Which bases can it measure?

Ferrous and non-ferrous metals.

What is the calibration set?

Zero, 50, 100, 250, 500 and 1000 μm.

What is the HSN code for the CTG-800?

The manufacturer catalogue lists HSN 90318000. Labmart issues a GST invoice with every order.

Does it need installation?

No. It is a handheld instrument that is ready to use. Contact Labmart if you need usage guidance.

Can I get a GST invoice and a bulk or institutional quotation?

Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.

What is the warranty and delivery time?

Warranty terms and delivery time depend on the product and your location, and are not stated in the manufacturer catalogue. Please contact Labmart for the warranty terms and a delivery estimate before ordering.
