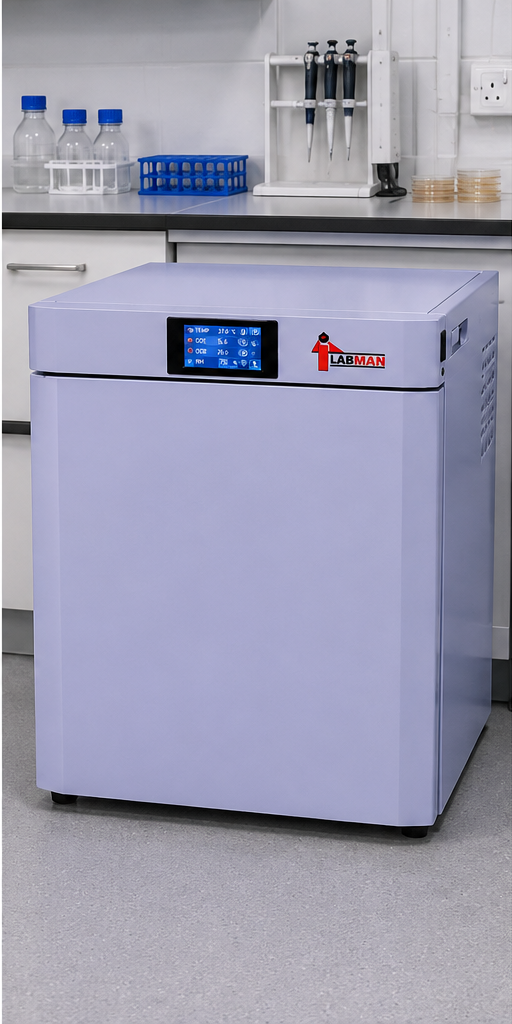

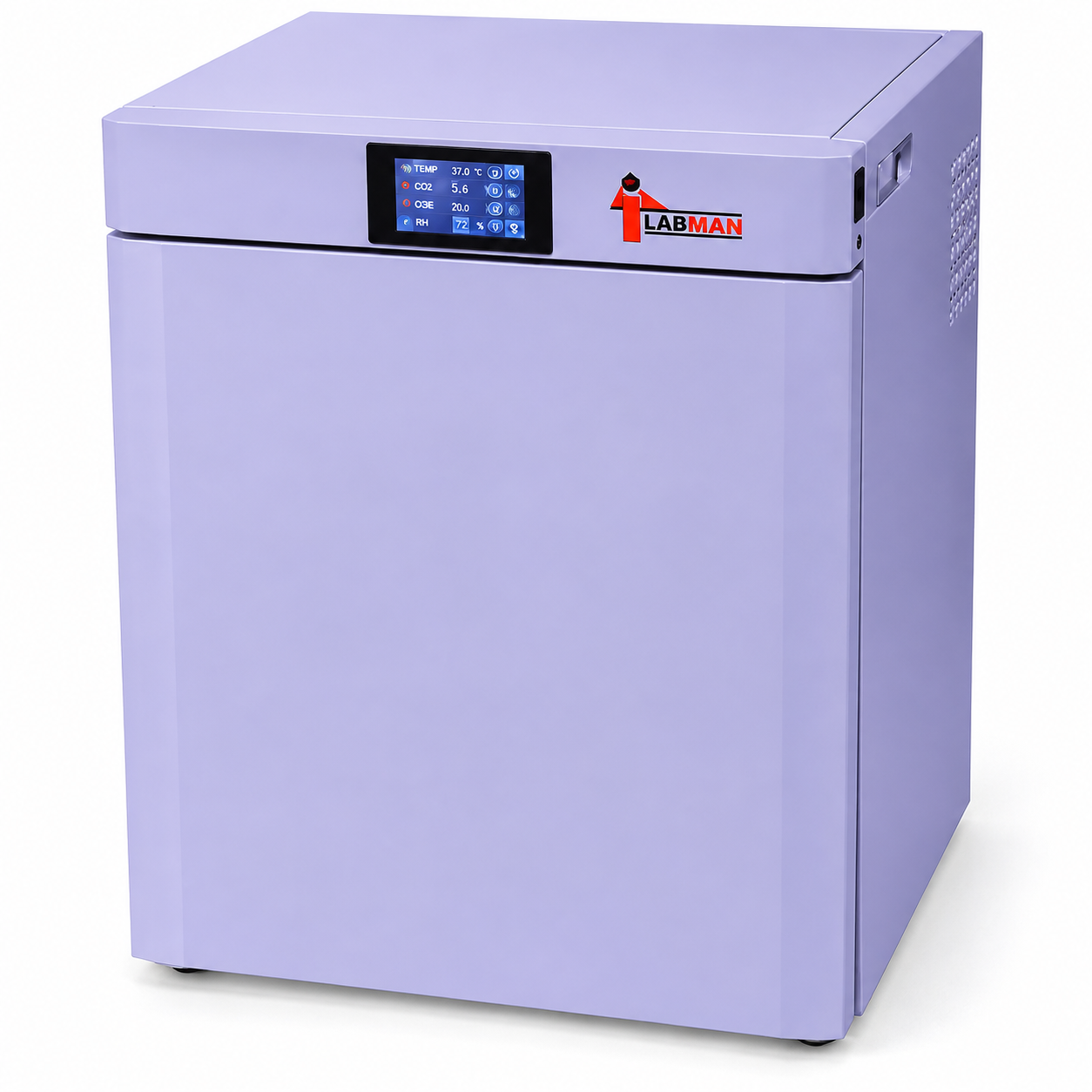

CO₂ Incubator COI80 is an 80-liter laboratory incubator designed for controlled cell culture, tissue engineering, microbiology and biomedical research. It provides stable temperature control from RT +5°C to 65°C, 0–20% CO₂ control using infrared detection, high humidity up to 95% RH at 37°C, UV sterilization, air circulation and touchscreen operation.

Product Overview

The  COI80 CO₂ Incubator provides a controlled environment for growing and maintaining cells under regulated temperature, CO₂ and humidity conditions.

The 80-liter chamber uses a 6-sided direct hot-air jacket heating system with a PT100 temperature sensor for uniform and stable temperature control. CO₂ concentration is measured using an infrared (IR) detection system, with a control range of 0–20%.

Humidity is maintained through water-pan humidification, with relative humidity of up to 95% RH at 37°C. The unit also incorporates UV sterilization, air circulation and a dual-door arrangement consisting of an inner glass door and outer door.

A 5-inch touchscreen display, programmable operating mode, temperature and CO₂ curve options, USB data export and alarm functionality provide convenient operation and monitoring.

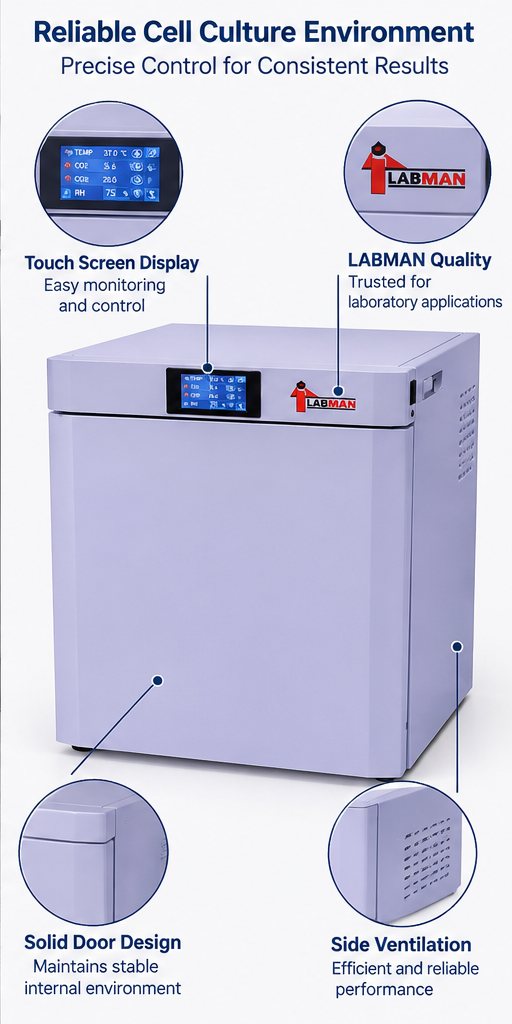

Key Features & Benefits

• 80-liter chamber capacity

• Temperature range of RT +5°C to 65°C

• Temperature resolution of ±0.1°C

• Temperature accuracy of ±0.2°C

• PT100 temperature sensor

• 6-sided direct hot-air jacket heating

• Infrared (IR) CO₂ detection

• CO₂ control range of 0–20%

• CO₂ control accuracy of ±0.2%

• CO₂ display resolution of 0.1%

• Water-pan humidification

• Relative humidity up to 95% RH at 37°C

• UV sterilization

• Air circulation system

• 5-inch touchscreen display

• Temperature and CO₂ curve options

• Constant and programmable operating modes

• USB data export

• Adjustable shelves

• Dual-door design: inner glass + outer door

• Fast temperature and CO₂ recovery

• Alarm functionality

• SS304 stainless-steel chamber

• Compact laboratory configuration

4. Technical Specifications

Note: Specifications are based on the supplied COI80 catalogue. The catalogue states that specifications are subject to change without notice.

5. Applications

The Labmart COI80 is suitable for:

• Cell culture

• Tissue engineering

• Microbiology

• Biomedical research

• Mammalian cell culture

• Controlled biological incubation

• Cellular research

• Laboratory research requiring controlled CO₂ environments

• Life-science research

• Research and development laboratories

10. FAQs

1. What is the capacity of the COI80 CO₂ incubator?

The COI80 has an 80-liter chamber volume.

2. What is the temperature range?

The specified temperature control range is RT +5°C to 65°C.

3. What is the temperature accuracy?

The catalogue specifies ±0.2°C temperature accuracy.

4. What type of temperature sensor is used?

The COI80 uses a PT100 temperature sensor.

5. What is the CO₂ control range?

The CO₂ control range is 0–20%.

6. How does the COI80 measure CO₂?

CO₂ measurement uses an infrared (IR) detection principle.

7. What is the CO₂ control accuracy?

The specified CO₂ control accuracy is ±0.2%.

8. What humidity can the incubator achieve?

The catalogue specifies up to 95% RH at 37°C using water-pan humidification.

9. Does the COI80 have UV sterilization?

Yes. The COI80 incorporates a UV sterilization system.

10. What type of display does it have?

It features a 5-inch touchscreen display.

11. Does the COI80 support programmable operation?

Yes. It provides two modes: Constant and Programmable.

12. Can temperature and CO₂ data be exported?

The unit has a USB interface for data export.

13. How quickly does the incubator recover after door opening?

The catalogue specifies temperature recovery of ≤10 minutes under the stated test condition and CO₂ recovery of ≤10 minutes under its specified test condition.

14. What is the chamber material?

The chamber is made from SS304 stainless steel.
