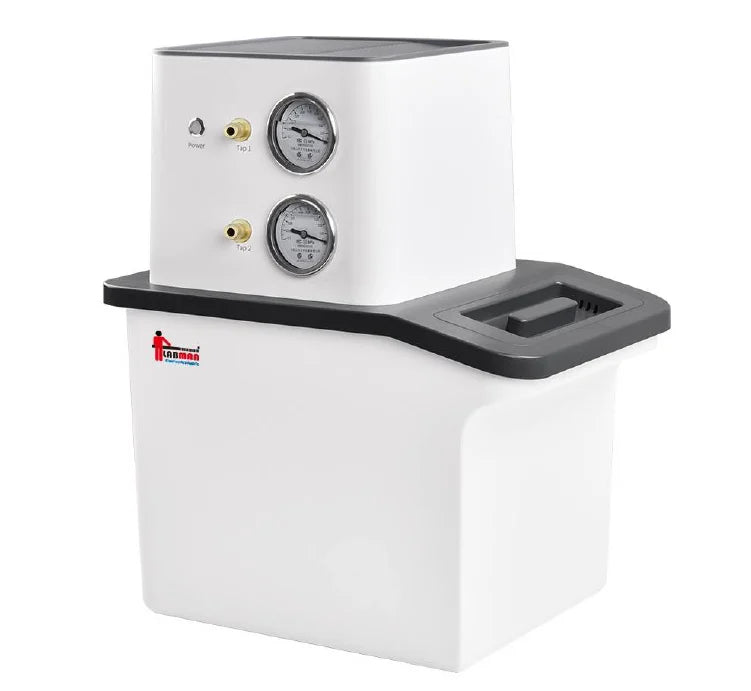

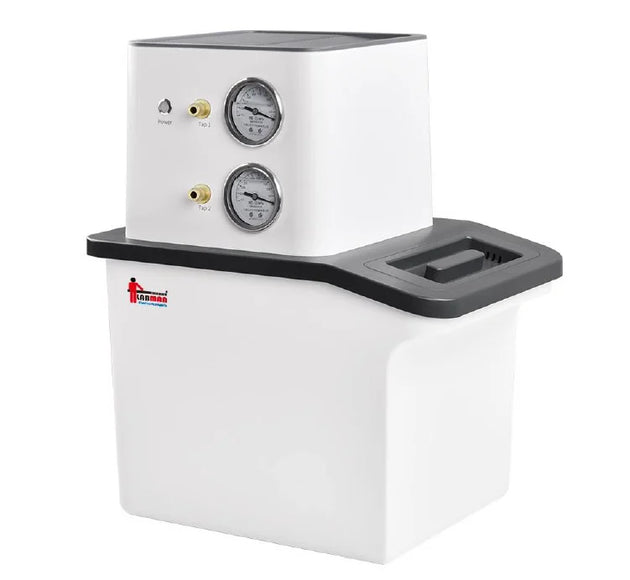

The LABMAN CWVP90L Circulating Water Vacuum Pump is a high-flow water-operated vacuum system designed to provide vacuum conditions for laboratories while also supplying circulating water for reaction devices. It uses circulating water as the working fluid and generates negative pressure through a jet principle. With a 90 L/min flow rate and 0.098 MPa ultimate pressure, the CWVP90L is suitable for a wide range of laboratory vacuum operations.

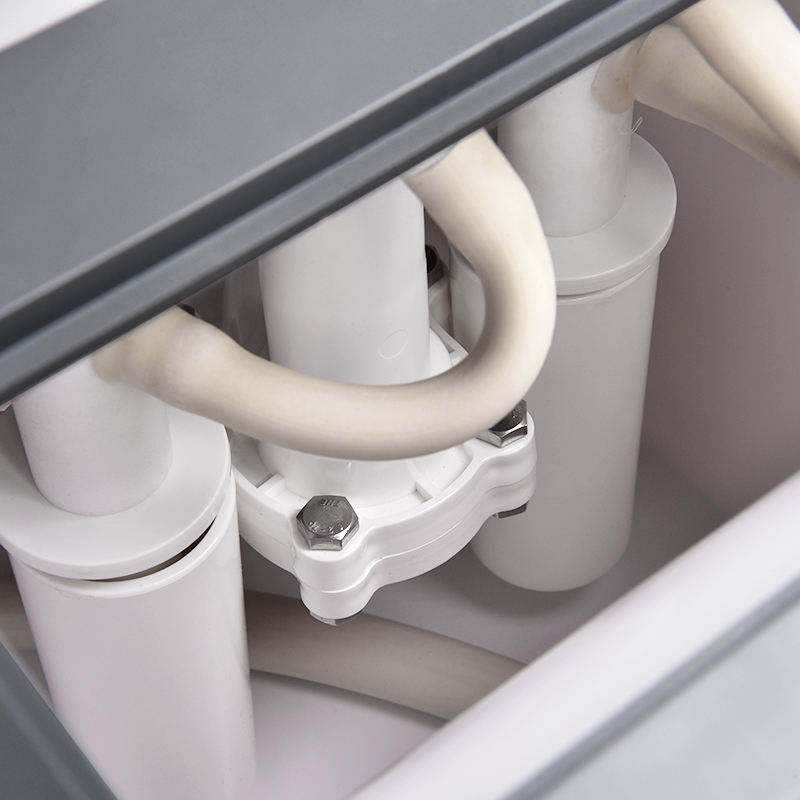

The pump incorporates a multi-tap design that allows standalone or parallel operation, a turbine culvert structure for high flow, an anti-corrosion motor shaft core and a copper-coil AC motor with cooling fan. A check valve is also provided on the air extraction pipeline.

Product Specifications

Specification Details
Model CWVP90L
Make LABMAN
Pump Type Circulating Water Vacuum Pump
Flow Rate 90 L/min
Tapping Material Copper
Tank Capacity 9 L/min*
Tank Dimensions (L × W × D) 280 × 230 × 180 mm
Lift 8 m (26 ft)
Vacuum Type & Ultimate Pressure Water Circulating & 0.098 MPa
Display Mode Pressure Gauge × 2
Single Tap Pumping Volume 10 L/min
Ambient Temperature 10°C to 30°C
Power Consumption 250 W
Power Supply AC 220 V / 50–60 Hz
Machine Dimensions (L × W × H) 360 × 255 × 415 mm
Packing Dimensions (L × W × H) 455 × 365 × 560 mm
Net / Gross Weight 8 kg / 11 kg
Packing Type Cardboard Box
HSN Code 84142090

*The attached catalogue prints the tank capacity as “9 L/min”; this has been retained exactly as stated in the source.

Key Features

  • 90 L/min high flow rate for higher-throughput vacuum applications.

  • Circulating water vacuum technology using water as the working fluid.

  • Multi-tap design for standalone or parallel use.

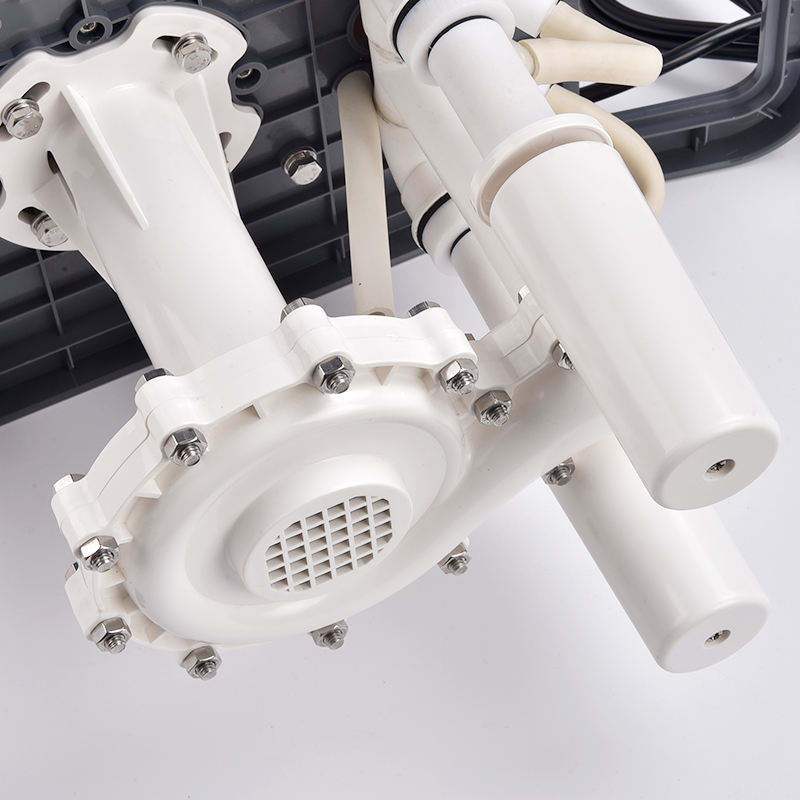

  • Turbine culvert structure designed to ensure maximum flow.

  • Copper tapping material for CWVP90L.

  • Anti-corrosion motor shaft core for long-term operation.

  • Copper-coil AC motor with cooling fan.

  • Check valve on the air extraction pipeline.

  • Oil-free and contamination-free operation.

  • Dual pressure gauges for vacuum monitoring.

  • 8 m lifting capacity.

  • Suitable for laboratory evaporation, distillation and other vacuum processes.

Applications

The CWVP90L is suitable for laboratory applications such as:

  • Evaporation

  • Distillation

  • Crystallization

  • Decompression

  • Sublimation

  • Providing vacuum conditions for reaction devices

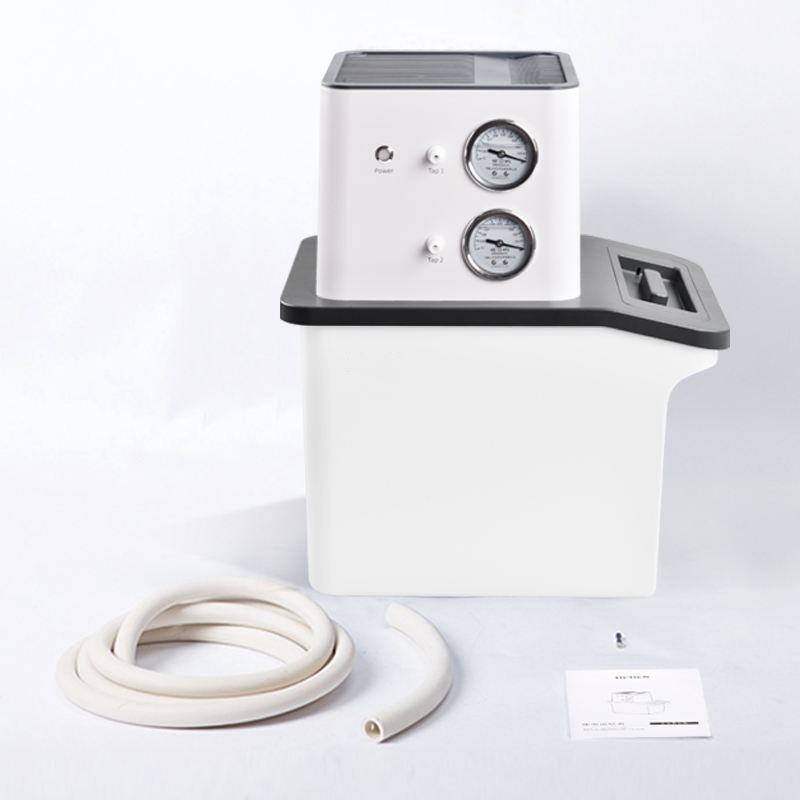

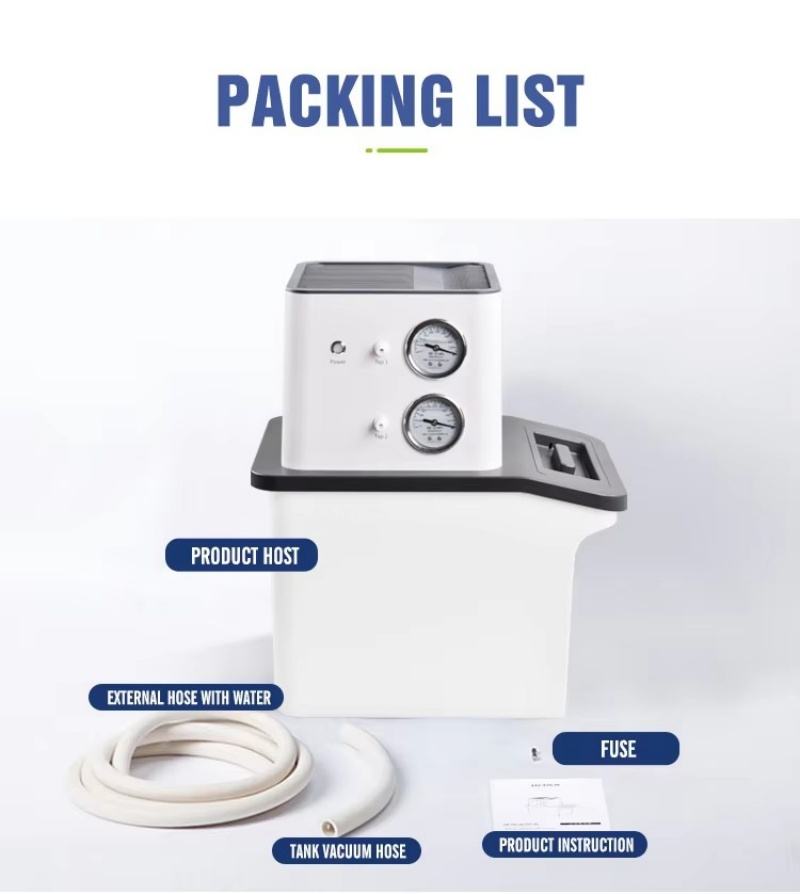

Standard Accessories

  • Main Instrument

  • Tank Lid

  • Power Cord

  • Drain Tube

  • Circulating Tube

  • Instruction Manual

  • Test Certificate
