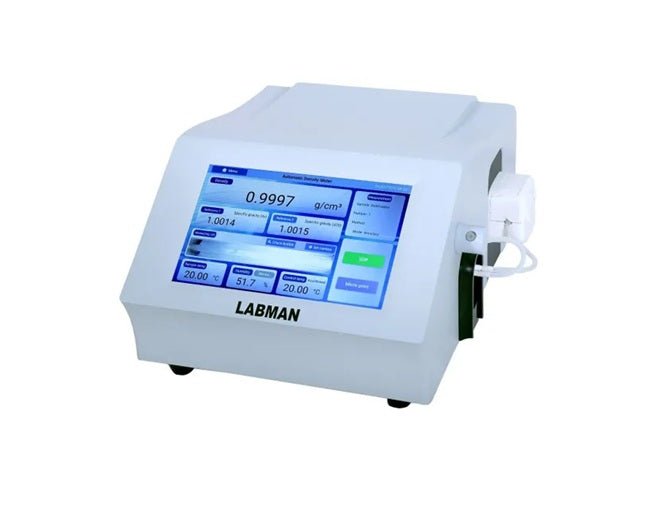

The LABMAN ADM3 Automatic Density Meter works on the U-tube vibration principle to measure liquid density quickly. A small sample (2–3 ml) is injected into the vibrating sample tube and density is calculated from the change in vibration frequency. It measures 0–3.0000 g/cm³ with 0.0001 resolution, with built-in Peltier temperature control.
Key features
- Free onsite installation
- Quartz glass U-shaped tube and photoelectric detection
- Minimum sample 2–3 ml per measurement
- Built-in Peltier temperature control (5°C–50°C)
- 10.1" touch screen with Android operating system
- 1080P HD camera to observe sample injection; bubble detection
- Compatible with manual and automatic sampling
- Results saved as PDF/Excel reports, export by USB; RS232C serial port
- Air pump for drying and cleaning; optional thermal printer
Technical specifications
| Parameter | Specification |
|---|---|
| Model | ADM3 |
| Density measuring range | 0.0000 to 3.0000 g/cm³ |
| Density resolution | 0.0001 g/cm³ |
| Density accuracy | ±0.0005 g/cm³ |
| Density repeatability | ±0.0002 g/cm³ |
| Temperature control range | 5°C ~ 50°C |
| Temperature repeatability | ±0.05°C |
| Temperature accuracy | ±0.1°C |
| Communication port | RS232C, USB |
| Measurement units | g/cm³, kg/m³ |
| Audit trial, user management | NA |
| Make | LABMAN |
| Temperature control | Peltier (in-built) |
| Temperature resolution | 0.01°C |
| Display | 10.1" touch screen |
| Observation | 1080P HD camera |
| Calibration | Dry air / distilled water |
| Data storage | 128 GB |
| Method management | 200 groups |
| Measurement records | 2,00,000 groups |
| Operating system | Android |
| Report | PDF / Excel |
| Sampling | Manual / auto |
| Power | 120 W |
| Power supply | AC 220 V, 50/60 Hz |
| Packing dimension (L×W×H) | 730 × 480 × 420 mm |
| Gross weight | 22 kg |
| HSN code | 90275090 |
Supplied with
Main instrument, silicone gel filter, waste water bottle, inlet & outlet tube, power adaptor, instruction manual, test certificate.
Frequently asked questions
What principle does the ADM3 use?
U-tube vibration: the density of the sample is calculated from the change in vibration frequency of the sample tube and the calibration data.
How much sample is needed?
A minimum of 2–3 ml per measurement.
What is the density range, resolution and accuracy?
0.0000 to 3.0000 g/cm³, resolution 0.0001 g/cm³, accuracy ±0.0005 g/cm³ and repeatability ±0.0002 g/cm³.
How is it calibrated?
With dry air and distilled water.
What is the difference between ADM3 and ADM5CFR?
ADM5CFR has higher resolution (0.00001 g/cm³), accuracy ±0.0001 g/cm³, temperature range up to 70°C, 30+ built-in units and audit trail/user management for 21 CFR Part 11. ADM3 has no audit trail.
What power supply does it need?
AC 220 V, 50/60 Hz.
What is supplied with it?
Main instrument, silicone gel filter, waste water bottle, inlet & outlet tube, power adaptor, instruction manual, test certificate.
What are the packing size and weight?
730 × 480 × 420 mm (L×W×H as per catalogue), gross weight 22 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
- Regular price
- Rs.500,000.00
- Sale price
- Rs.459,000.00
The LABMAN ADM3 Automatic Density Meter works on the U-tube vibration principle to measure liquid density quickly. A small sample (2–3 ml) is injected into the vibrating sample tube and density is calculated from the change in vibration frequency. It measures 0–3.0000 g/cm³ with 0.0001 resolution, with built-in Peltier temperature control.
Key features
- Free onsite installation
- Quartz glass U-shaped tube and photoelectric detection
- Minimum sample 2–3 ml per measurement
- Built-in Peltier temperature control (5°C–50°C)
- 10.1" touch screen with Android operating system
- 1080P HD camera to observe sample injection; bubble detection
- Compatible with manual and automatic sampling
- Results saved as PDF/Excel reports, export by USB; RS232C serial port
- Air pump for drying and cleaning; optional thermal printer
Technical specifications
| Parameter | Specification |
|---|---|
| Model | ADM3 |
| Density measuring range | 0.0000 to 3.0000 g/cm³ |
| Density resolution | 0.0001 g/cm³ |
| Density accuracy | ±0.0005 g/cm³ |
| Density repeatability | ±0.0002 g/cm³ |
| Temperature control range | 5°C ~ 50°C |
| Temperature repeatability | ±0.05°C |
| Temperature accuracy | ±0.1°C |
| Communication port | RS232C, USB |
| Measurement units | g/cm³, kg/m³ |
| Audit trial, user management | NA |
| Make | LABMAN |
| Temperature control | Peltier (in-built) |
| Temperature resolution | 0.01°C |
| Display | 10.1" touch screen |
| Observation | 1080P HD camera |
| Calibration | Dry air / distilled water |
| Data storage | 128 GB |
| Method management | 200 groups |
| Measurement records | 2,00,000 groups |
| Operating system | Android |
| Report | PDF / Excel |
| Sampling | Manual / auto |
| Power | 120 W |
| Power supply | AC 220 V, 50/60 Hz |
| Packing dimension (L×W×H) | 730 × 480 × 420 mm |
| Gross weight | 22 kg |
| HSN code | 90275090 |
Supplied with
Main instrument, silicone gel filter, waste water bottle, inlet & outlet tube, power adaptor, instruction manual, test certificate.
Frequently asked questions
What principle does the ADM3 use?
U-tube vibration: the density of the sample is calculated from the change in vibration frequency of the sample tube and the calibration data.
How much sample is needed?
A minimum of 2–3 ml per measurement.
What is the density range, resolution and accuracy?
0.0000 to 3.0000 g/cm³, resolution 0.0001 g/cm³, accuracy ±0.0005 g/cm³ and repeatability ±0.0002 g/cm³.
How is it calibrated?
With dry air and distilled water.
What is the difference between ADM3 and ADM5CFR?
ADM5CFR has higher resolution (0.00001 g/cm³), accuracy ±0.0001 g/cm³, temperature range up to 70°C, 30+ built-in units and audit trail/user management for 21 CFR Part 11. ADM3 has no audit trail.
What power supply does it need?
AC 220 V, 50/60 Hz.
What is supplied with it?
Main instrument, silicone gel filter, waste water bottle, inlet & outlet tube, power adaptor, instruction manual, test certificate.
What are the packing size and weight?
730 × 480 × 420 mm (L×W×H as per catalogue), gross weight 22 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
- Regular price
- Rs.500,000.00
- Sale price
- Rs.459,000.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The LABMAN ADM3 Automatic Density Meter works on the U-tube vibration principle to measure liquid density quickly. A small sample (2–3 ml) is injected into the vibrating sample tube and density is calculated from the change in vibration frequency. It measures 0–3.0000 g/cm³ with 0.0001 resolution, with built-in Peltier temperature control.
Key features
- Free onsite installation
- Quartz glass U-shaped tube and photoelectric detection
- Minimum sample 2–3 ml per measurement
- Built-in Peltier temperature control (5°C–50°C)
- 10.1" touch screen with Android operating system
- 1080P HD camera to observe sample injection; bubble detection
- Compatible with manual and automatic sampling
- Results saved as PDF/Excel reports, export by USB; RS232C serial port
- Air pump for drying and cleaning; optional thermal printer
Technical specifications
| Parameter | Specification |
|---|---|
| Model | ADM3 |
| Density measuring range | 0.0000 to 3.0000 g/cm³ |
| Density resolution | 0.0001 g/cm³ |
| Density accuracy | ±0.0005 g/cm³ |
| Density repeatability | ±0.0002 g/cm³ |
| Temperature control range | 5°C ~ 50°C |
| Temperature repeatability | ±0.05°C |
| Temperature accuracy | ±0.1°C |
| Communication port | RS232C, USB |
| Measurement units | g/cm³, kg/m³ |
| Audit trial, user management | NA |
| Make | LABMAN |
| Temperature control | Peltier (in-built) |
| Temperature resolution | 0.01°C |
| Display | 10.1" touch screen |
| Observation | 1080P HD camera |
| Calibration | Dry air / distilled water |
| Data storage | 128 GB |
| Method management | 200 groups |
| Measurement records | 2,00,000 groups |
| Operating system | Android |
| Report | PDF / Excel |
| Sampling | Manual / auto |
| Power | 120 W |
| Power supply | AC 220 V, 50/60 Hz |
| Packing dimension (L×W×H) | 730 × 480 × 420 mm |
| Gross weight | 22 kg |
| HSN code | 90275090 |
Supplied with
Main instrument, silicone gel filter, waste water bottle, inlet & outlet tube, power adaptor, instruction manual, test certificate.
Frequently asked questions
What principle does the ADM3 use?
U-tube vibration: the density of the sample is calculated from the change in vibration frequency of the sample tube and the calibration data.
How much sample is needed?
A minimum of 2–3 ml per measurement.
What is the density range, resolution and accuracy?
0.0000 to 3.0000 g/cm³, resolution 0.0001 g/cm³, accuracy ±0.0005 g/cm³ and repeatability ±0.0002 g/cm³.
How is it calibrated?
With dry air and distilled water.
What is the difference between ADM3 and ADM5CFR?
ADM5CFR has higher resolution (0.00001 g/cm³), accuracy ±0.0001 g/cm³, temperature range up to 70°C, 30+ built-in units and audit trail/user management for 21 CFR Part 11. ADM3 has no audit trail.
What power supply does it need?
AC 220 V, 50/60 Hz.
What is supplied with it?
Main instrument, silicone gel filter, waste water bottle, inlet & outlet tube, power adaptor, instruction manual, test certificate.
What are the packing size and weight?
730 × 480 × 420 mm (L×W×H as per catalogue), gross weight 22 kg.
Can I get a GST invoice and a bulk or institutional quotation?
Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.
What is the warranty and delivery time?
LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
