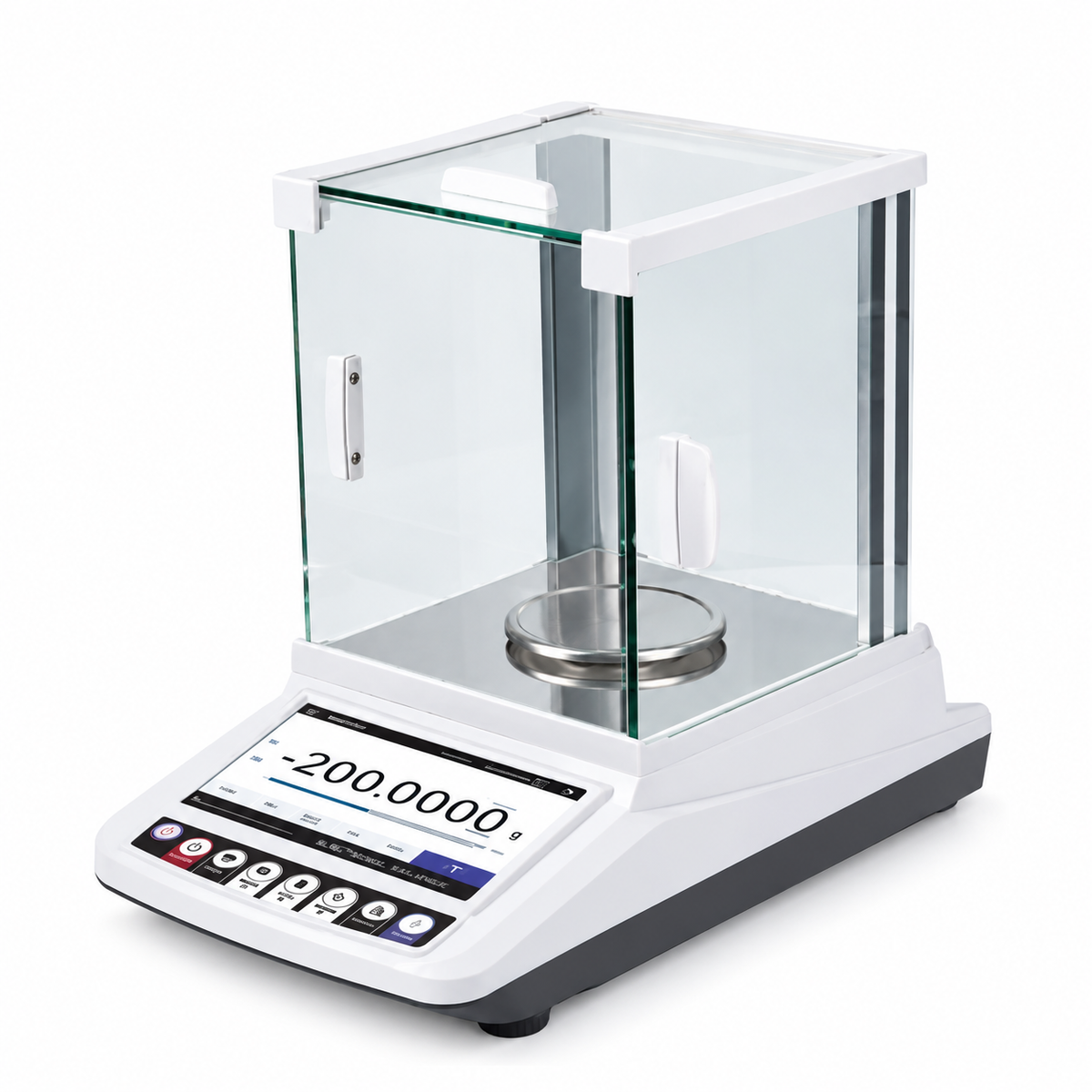

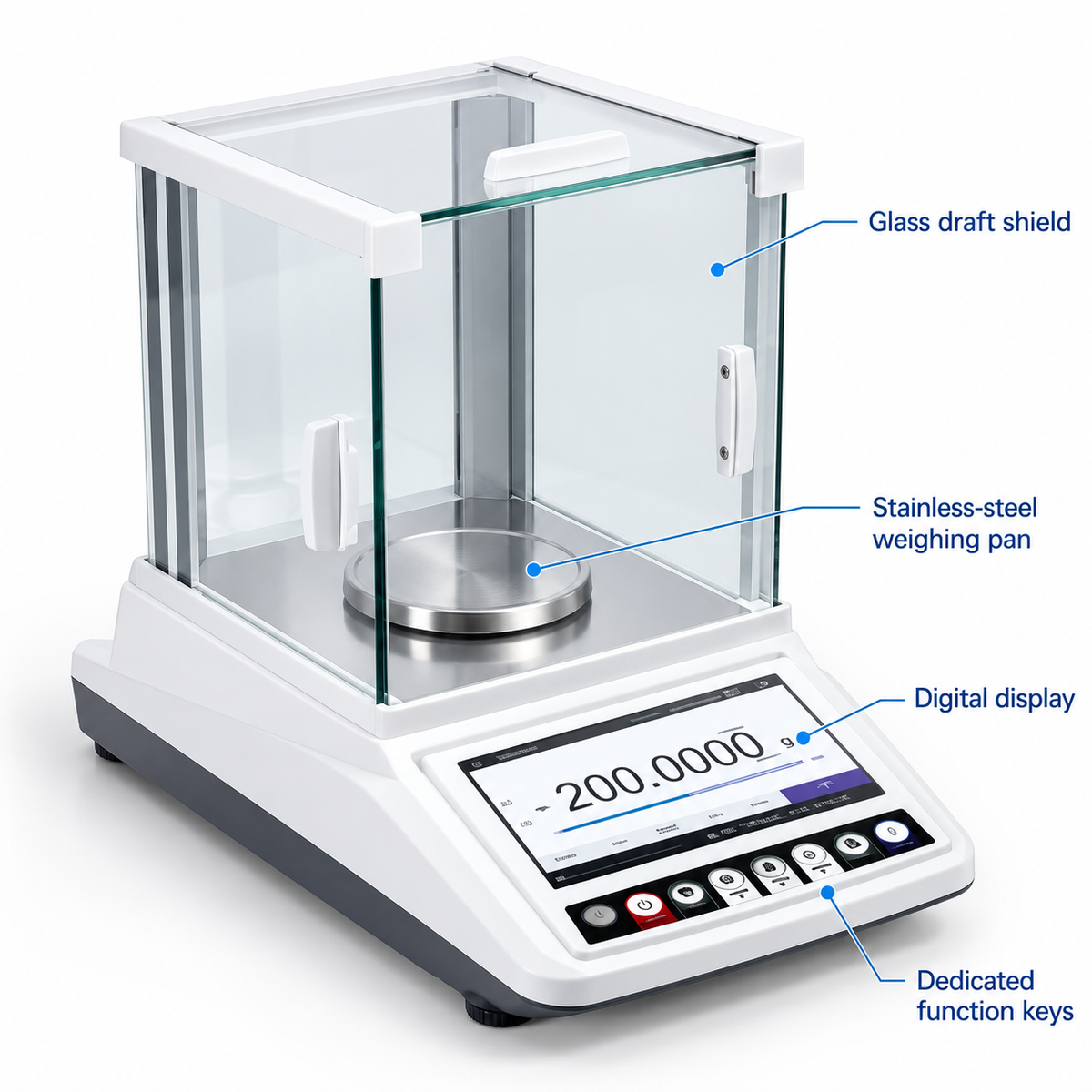

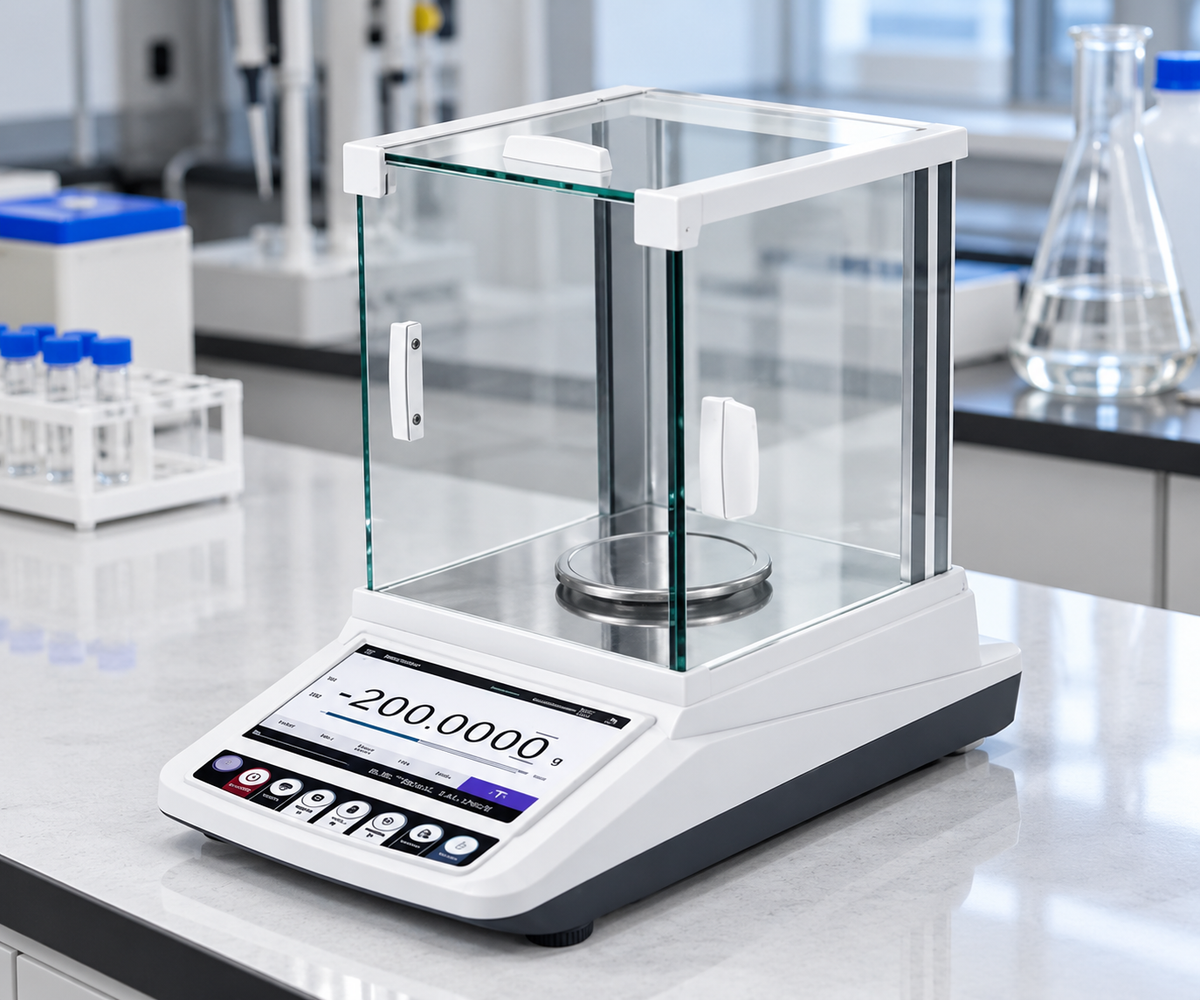

The Acuris MA-220T Analytical Balance is a precision laboratory weighing instrument designed for accurate measurement of small sample quantities. It offers a 220 g maximum weighing capacity, 0.1 mg readability, internal calibration and a touchscreen LCD display.

Powered by electromagnetic force compensation technology, the MA-220T combines precision weighing with advanced functions including percentage weighing, piece counting, dynamic weighing, HI-LO check weighing, density determination, under-hook weighing and password-protected user management. An integrated audit trail and RS-232C interface support laboratory data management and connectivity.

Key Features and Benefits

• 220 g Maximum Capacity: Suitable for weighing small laboratory samples.

• 0.1 mg Readability: Provides high-resolution weighing.

• Electromagnetic Force Compensation: Supports precision mass measurement.

• Internal Automatic Calibration: Provides an integrated calibration function.

• Touchscreen LCD: Offers an intuitive interface for weighing and settings.

• Password Protection: Restricts access to authorized users.

• User Management: Supports multiple user profiles and access levels.

• Audit Trail: Records user actions with date and time.

• Percentage Weighing: Determines sample weight as a percentage of a reference weight.

• Dynamic Weighing: Supports weighing of changing or unstable loads.

• HI-LO Check Weighing: Compares measurements against upper and lower limits.

• Piece Counting: Estimates the number of pieces based on reference weight.

• Density Determination: Provides an integrated density-measurement function.

• Under-Hook Weighing: Supports suitable below-balance weighing applications.

• Multiple Weighing Units: Provides flexible measurement-unit selection.

• RS-232C Interface: Enables connection to compatible external devices.

5. Technical Specifications

Advanced Weighing Functions

Percentage Weighing

Allows a sample's weight to be expressed as a percentage of a reference weight.

Piece Counting

Determines the number of similar pieces from a specified or measured reference weight.

HI-LO Check Weighing

Allows upper and lower weight limits to be configured for checking whether a sample falls within the required range.

Dynamic Weighing

Supports measurement of loads that fluctuate over time. The catalogue illustrates a countdown timer and average-weight display.

Density Determination

Provides an integrated density-measurement function. The catalogue illustrates density testing using weight-in-air, weight-in-liquid, water temperature and sample-type inputs. It also identifies manual density calculation as a feature.

Under-Hook Weighing

Supports suitable weighing applications in which a sample is suspended beneath the balance. The required hook arrangement and setup should be confirmed with the supplier.

FAQs

What is the maximum capacity of the MA-220T?

The maximum weighing capacity is 220 g.

What is its readability?

The specified readability is 0.1 mg (0.0001 g).

Does the balance have internal calibration?

Yes. The MA-220T features internal calibration.

What is the linearity specification?

The specified linearity is ±0.0003 g.

Does it have a touchscreen?

Yes. It uses a touchscreen LCD display.

What is the pan size?

The weighing pan has a diameter of 90 mm.

Does it support piece counting?

Yes. Piece counting is one of its specified weighing functions.

Can it measure density?

The catalogue lists built-in density measurement and density determination by manual calculation.

Does it support check weighing?

Yes. It supports HI-LO check weighing with upper and lower limits.

Does it have an audit trail?

Yes. The balance includes an audit trail showing user, action and date/time in the illustrated interface.
