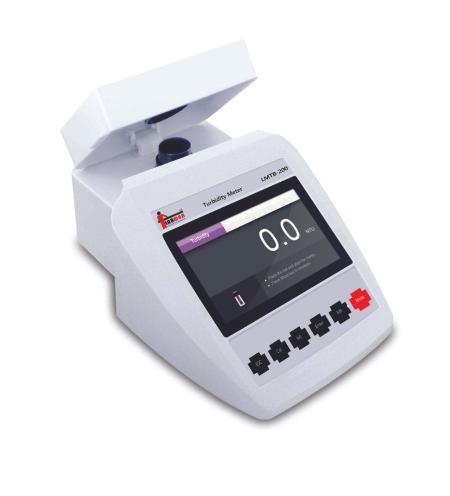

• LABMAN LMTB200 Turbidity Meter - Labmart.in

The LABMAN LMTB200 Turbidity Meter measures turbidity from 1 to 2000 NTU, with a Total Suspended Solids (TSS) measurement mode, 2 to 7 point calibration and four selectable turbidity units (NTU, FNU, EBC and ASBC). It has a 4.5" TFT display and suits industrial wastewater plants, municipal water and other industrial applications.

Key features

  • TSS measurement mode with TSS conversion factor
  • Four selectable units: NTU, FNU, EBC and ASBC
  • 4.5" TFT display
  • 2 to 7 point calibration with formazin standards
  • Continuous measurement mode; hold function
  • Password protection against unauthorized calibration and settings
  • Help messages, 9 system parameters and factory reset

Technical specifications

Parameter Specification
Model LMTB200
Make LABMAN
Measurement range 1 ~ 2000 NTU
Resolution 0.01 (1~100 NTU), 0.1 (100~999 NTU), 1 (999~2000 NTU)
Accuracy ±5%
Calibration point options 2 to 7 points (0.02, 10.00, 200, 500, 1000, 1500, 2000 NTU)
TSS range Depends on the TSS conversion factor
TSS resolution 0.0 / 1
TSS accuracy ±3% of reading
Light source Infrared-emitting diode (850 nm)
Detector Silicon photodiode
Stray light < 0.02 NTU
Sample vials 60 (H) × 25 (Dia) mm
Memory Stores up to 200 data sets
Display 4.5" TFT display
Password protection Yes
Operating temperature 0 ~ 50°C
Power supply DC adaptor, using AC 220 V, 50/60 Hz
Packing dimension (L×W×H) 310 × 255 × 190 mm
Gross weight 2 kg
HSN code 90275090

Supplied with

Main instrument, empty vial (1 no.), calibration standards (3: 200 NTU, 500 NTU, 1000 NTU), cloth, power adaptor, instruction manual, test certificate.

Frequently asked questions

What is the measuring range of the LMTB200?

1 to 2000 NTU, with resolution of 0.01, 0.1 and 1 depending on the range, and ±5% accuracy.

Which turbidity units can I select?

NTU, FNU, EBC and ASBC.

How is it calibrated?

With formazin standards at 2 to 7 points (0.02, 10.00, 200, 500, 1000, 1500, 2000 NTU). Three standards are supplied (200, 500, 1000 NTU).

Can it measure total suspended solids?

Yes, it has a TSS mode that depends on the TSS conversion factor, with ±3% of reading accuracy.

Can it store results?

Yes, up to 200 data sets.

What power supply does it need?

DC adaptor, using AC 220 V, 50/60 Hz.

What is supplied with it?

Main instrument, empty vial (1 no.), calibration standards (3: 200 NTU, 500 NTU, 1000 NTU), cloth, power adaptor, instruction manual, test certificate.

What are the packing size and weight?

310 × 255 × 190 mm (L×W×H as per catalogue), gross weight 2 kg.

Can I get a GST invoice and a bulk or institutional quotation?

Yes. Labmart (Chemlab Equipment) supplies against a GST invoice and provides quotations for colleges, hospitals, pharma companies and government labs, including bulk and tender requirements. Contact us with your requirement for a formal quotation.

What is the warranty and delivery time?

LABMAN instruments supplied by Labmart carry a standard 13-month warranty. Delivery time depends on your location and stock, so please contact Labmart for a delivery estimate.
