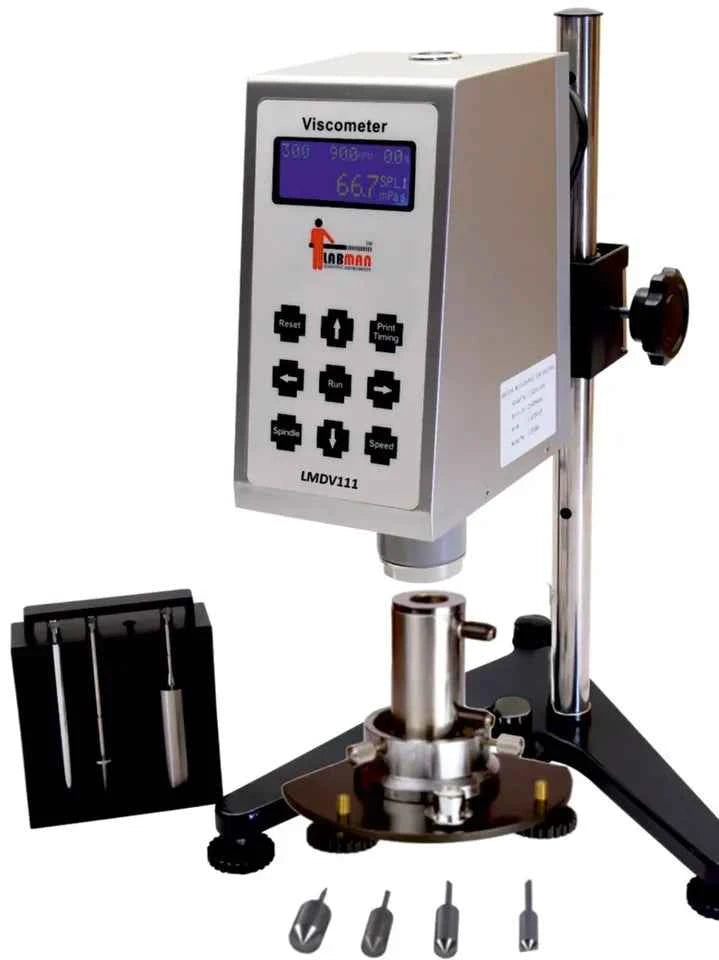

Digital Direct Reading Rotational Viscometer
Labman LMDV series is Rotational Digital Direct Reading
Viscometer to measure absolute viscosity of Newton
Liquids as well apparent viscosity of non – Newton liquid
featured by high flexibility reliable Test result, easy operation
and good appearance
Small Sample Adaptor
The Small Sample Adaptor, consisting of a coupling nut,
an extension link, a spindle set (spindle#21,#27,#28 and #29),
a sample chamber and an adjustable base
SALIENT FEATURES
Auto Range function
Selectable Stepless Speed (nonpolar shift)
Direct Viscosity reading and temperature display
Big Ultra Bright Backlight LCD Display
Small Sample Adaptor as a Standard Accessory
LMDV222 - - Shear rate, shear force display
Small Sample Adaptor
Small Sample Adaptor for small sample volume.
Small Sample Adaptor widely used for Digital Viscometer
15ml approx. sample is needed for test in Small Sample Adaptor.
Sample temperature can be controlled by using Refrigerated Circulating Bath
(Optional)
The Sample Chamber fit into a water jacket
SPECIFICATIONS:
|
MODEL |
LMDV111 |
|
Make |
LABWAN |
|
Measuring Range mpa.s |
12-60,00,000 |
|
Speed |
0.1 to 99.9 |
|
No of Speed |
1000 |
|
Speed Type |
Selectable Stepless Speed (nonpolar shift) |
|
No of Standard Spindle |
8 Spindle L1, L2, L3, L4, 21, 27, 28, 29 |
|
Small Sample Adaptor |
Yes |
|
Minimum Sample |
10ml ~ 20ml |
|
Display |
LCD |
|
Shear Rate, Shear Force Display |
No |
|
Temperature Monitoring |
Yes |
|
Measurement Accuracy |
±1% (FS) |
|
Repeatability |
±0.5 % (FS) |
|
Output |
RS232C Interface |
|
Power Supply |
Adaptor, Using AC 220V,50/60Hz |
|
Packing Dimension (LxWxH) |
420 x 375 x 550mm |
|
Gross Weight |
15kg |
- Regular price
- Rs.200,000.00
- Sale price
- Rs.169,000.00
Digital Direct Reading Rotational Viscometer
Labman LMDV series is Rotational Digital Direct Reading
Viscometer to measure absolute viscosity of Newton
Liquids as well apparent viscosity of non – Newton liquid
featured by high flexibility reliable Test result, easy operation
and good appearance
Small Sample Adaptor
The Small Sample Adaptor, consisting of a coupling nut,
an extension link, a spindle set (spindle#21,#27,#28 and #29),
a sample chamber and an adjustable base
SALIENT FEATURES
Auto Range function
Selectable Stepless Speed (nonpolar shift)
Direct Viscosity reading and temperature display
Big Ultra Bright Backlight LCD Display
Small Sample Adaptor as a Standard Accessory
LMDV222 - - Shear rate, shear force display
Small Sample Adaptor
Small Sample Adaptor for small sample volume.
Small Sample Adaptor widely used for Digital Viscometer
15ml approx. sample is needed for test in Small Sample Adaptor.
Sample temperature can be controlled by using Refrigerated Circulating Bath
(Optional)
The Sample Chamber fit into a water jacket
SPECIFICATIONS:
|
MODEL |
LMDV111 |
|
Make |
LABWAN |
|
Measuring Range mpa.s |
12-60,00,000 |
|
Speed |
0.1 to 99.9 |
|
No of Speed |
1000 |
|
Speed Type |
Selectable Stepless Speed (nonpolar shift) |
|
No of Standard Spindle |
8 Spindle L1, L2, L3, L4, 21, 27, 28, 29 |
|
Small Sample Adaptor |
Yes |
|
Minimum Sample |
10ml ~ 20ml |
|
Display |
LCD |
|
Shear Rate, Shear Force Display |
No |
|
Temperature Monitoring |
Yes |
|
Measurement Accuracy |
±1% (FS) |
|
Repeatability |
±0.5 % (FS) |
|
Output |
RS232C Interface |
|
Power Supply |
Adaptor, Using AC 220V,50/60Hz |
|
Packing Dimension (LxWxH) |
420 x 375 x 550mm |
|
Gross Weight |
15kg |
- Regular price
- Rs.200,000.00
- Sale price
- Rs.169,000.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
Digital Direct Reading Rotational Viscometer
Labman LMDV series is Rotational Digital Direct Reading
Viscometer to measure absolute viscosity of Newton
Liquids as well apparent viscosity of non – Newton liquid
featured by high flexibility reliable Test result, easy operation
and good appearance
Small Sample Adaptor
The Small Sample Adaptor, consisting of a coupling nut,
an extension link, a spindle set (spindle#21,#27,#28 and #29),
a sample chamber and an adjustable base
SALIENT FEATURES
Auto Range function
Selectable Stepless Speed (nonpolar shift)
Direct Viscosity reading and temperature display
Big Ultra Bright Backlight LCD Display
Small Sample Adaptor as a Standard Accessory
LMDV222 - - Shear rate, shear force display
Small Sample Adaptor
Small Sample Adaptor for small sample volume.
Small Sample Adaptor widely used for Digital Viscometer
15ml approx. sample is needed for test in Small Sample Adaptor.
Sample temperature can be controlled by using Refrigerated Circulating Bath
(Optional)
The Sample Chamber fit into a water jacket
SPECIFICATIONS:
|
MODEL |
LMDV111 |
|
Make |
LABWAN |
|
Measuring Range mpa.s |
12-60,00,000 |
|
Speed |
0.1 to 99.9 |
|
No of Speed |
1000 |
|
Speed Type |
Selectable Stepless Speed (nonpolar shift) |
|
No of Standard Spindle |
8 Spindle L1, L2, L3, L4, 21, 27, 28, 29 |
|
Small Sample Adaptor |
Yes |
|
Minimum Sample |
10ml ~ 20ml |
|
Display |
LCD |
|
Shear Rate, Shear Force Display |
No |
|
Temperature Monitoring |
Yes |
|
Measurement Accuracy |
±1% (FS) |
|
Repeatability |
±0.5 % (FS) |
|
Output |
RS232C Interface |
|
Power Supply |
Adaptor, Using AC 220V,50/60Hz |
|
Packing Dimension (LxWxH) |
420 x 375 x 550mm |
|
Gross Weight |
15kg |
