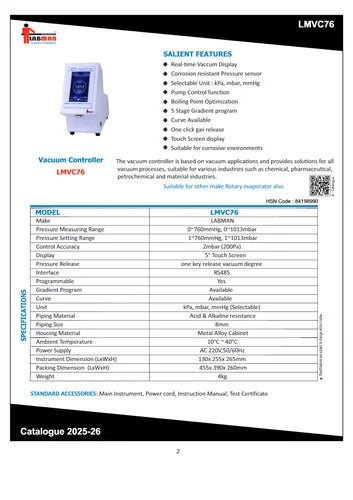

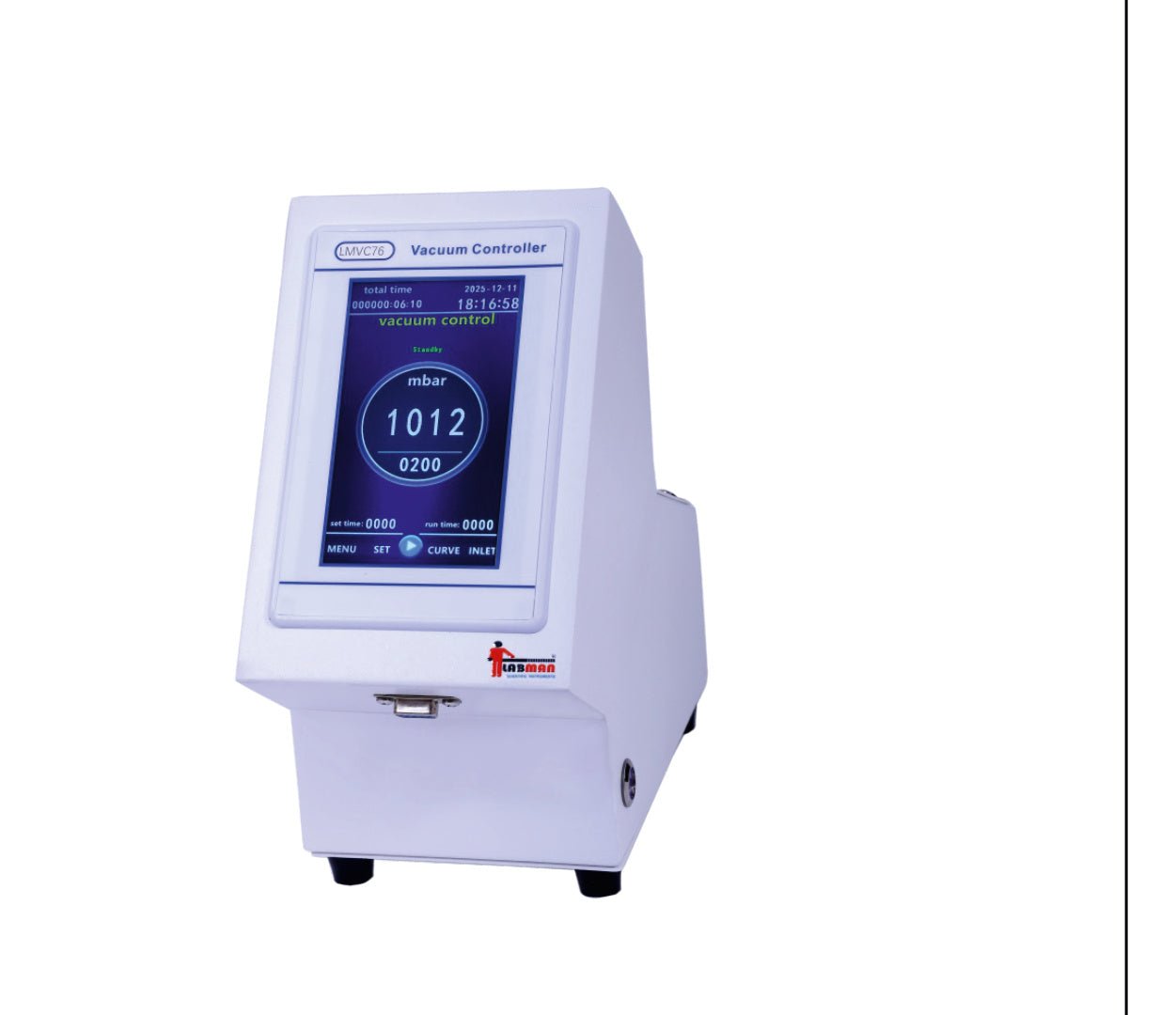

A precision vacuum controller engineered for demanding laboratory environments. Built on advanced vacuum application technology, the LMVC76 delivers complete control over all vacuum processes — ideal for chemical, pharmaceutical, petrochemical, and material science industries. Its corrosion-resistant construction and intuitive 5" touch screen make it equally capable in routine and aggressive workflows. Compatible with other makes of rotary evaporators.
-
Real-Time Vacuum Display — Live vacuum level monitoring shown prominently on the 5" touch screen at all times.
-
Corrosion-Resistant Pressure Sensor — Acid & alkaline resistant piping and sensor construction for use with aggressive chemicals.
-
Selectable Units — Choose between kPa, mbar, and mmHg to match your workflow preferences.
-
Pump Control Function — Directly control connected vacuum pumps through the controller interface.
-
Boiling Point Optimization — Intelligently adjusts vacuum levels to optimize solvent boiling points for efficient distillation.
-
5-Stage Gradient Program — Programmable multi-stage vacuum distillation sequences for complex separation protocols.
-
Curve Tracking — Visual real-time vacuum curve display for process analysis and documentation.
-
One-Click Gas Release — Instant vacuum release with a single touch — safe and convenient venting at process end.
-
5" Touch Screen Display — Large, responsive HD touch screen for easy parameter setting and real-time monitoring.
-
Corrosive Environment Ready — Metal alloy cabinet and resistant piping rated for operation in chemically harsh lab settings.
| Parameter | Value |
|---|---|
| Model | LMVC76 |
| Make | LABMAN |
| Pressure Measuring Range | 0 ~ 760 mmHg | 0 ~ 1013 mbar |
| Pressure Setting Range | 1 ~ 760 mmHg | 1 ~ 1013 mbar |
| Control Accuracy | 2 mbar (200 Pa) |
| Display | 5" Touch Screen |
| Pressure Release | One-key release |
| Interface | RS485 |
| Programmable | Yes |
| Gradient Program | Available (5 Stages) |
| Curve | Available |
| Unit Selection | kPa, mbar, mmHg |
| Piping Material | Acid & Alkaline Resistant |
| Piping Size | 8 mm |
| Housing Material | Metal Alloy Cabinet |
| Ambient Temperature | 10°C ~ 40°C |
| Power Supply | AC 220V, 50/60 Hz |
| Instrument Dimensions (L×W×H) | 130 × 255 × 265 mm |
| Packing Dimensions (L×W×H) | 455 × 390 × 260 mm |
| Weight | 4 kg |
| HSN Code | 84198990 |
- Regular price
- Rs.80,000.00
- Sale price
- Rs.64,999.00
A precision vacuum controller engineered for demanding laboratory environments. Built on advanced vacuum application technology, the LMVC76 delivers complete control over all vacuum processes — ideal for chemical, pharmaceutical, petrochemical, and material science industries. Its corrosion-resistant construction and intuitive 5" touch screen make it equally capable in routine and aggressive workflows. Compatible with other makes of rotary evaporators.
-
Real-Time Vacuum Display — Live vacuum level monitoring shown prominently on the 5" touch screen at all times.
-
Corrosion-Resistant Pressure Sensor — Acid & alkaline resistant piping and sensor construction for use with aggressive chemicals.
-
Selectable Units — Choose between kPa, mbar, and mmHg to match your workflow preferences.
-
Pump Control Function — Directly control connected vacuum pumps through the controller interface.
-
Boiling Point Optimization — Intelligently adjusts vacuum levels to optimize solvent boiling points for efficient distillation.
-
5-Stage Gradient Program — Programmable multi-stage vacuum distillation sequences for complex separation protocols.
-
Curve Tracking — Visual real-time vacuum curve display for process analysis and documentation.
-
One-Click Gas Release — Instant vacuum release with a single touch — safe and convenient venting at process end.
-
5" Touch Screen Display — Large, responsive HD touch screen for easy parameter setting and real-time monitoring.
-
Corrosive Environment Ready — Metal alloy cabinet and resistant piping rated for operation in chemically harsh lab settings.
| Parameter | Value |
|---|---|
| Model | LMVC76 |
| Make | LABMAN |
| Pressure Measuring Range | 0 ~ 760 mmHg | 0 ~ 1013 mbar |
| Pressure Setting Range | 1 ~ 760 mmHg | 1 ~ 1013 mbar |
| Control Accuracy | 2 mbar (200 Pa) |
| Display | 5" Touch Screen |
| Pressure Release | One-key release |
| Interface | RS485 |
| Programmable | Yes |
| Gradient Program | Available (5 Stages) |
| Curve | Available |
| Unit Selection | kPa, mbar, mmHg |
| Piping Material | Acid & Alkaline Resistant |
| Piping Size | 8 mm |
| Housing Material | Metal Alloy Cabinet |
| Ambient Temperature | 10°C ~ 40°C |
| Power Supply | AC 220V, 50/60 Hz |
| Instrument Dimensions (L×W×H) | 130 × 255 × 265 mm |
| Packing Dimensions (L×W×H) | 455 × 390 × 260 mm |
| Weight | 4 kg |
| HSN Code | 84198990 |
- Regular price
- Rs.80,000.00
- Sale price
- Rs.64,999.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
A precision vacuum controller engineered for demanding laboratory environments. Built on advanced vacuum application technology, the LMVC76 delivers complete control over all vacuum processes — ideal for chemical, pharmaceutical, petrochemical, and material science industries. Its corrosion-resistant construction and intuitive 5" touch screen make it equally capable in routine and aggressive workflows. Compatible with other makes of rotary evaporators.
-
Real-Time Vacuum Display — Live vacuum level monitoring shown prominently on the 5" touch screen at all times.
-
Corrosion-Resistant Pressure Sensor — Acid & alkaline resistant piping and sensor construction for use with aggressive chemicals.
-
Selectable Units — Choose between kPa, mbar, and mmHg to match your workflow preferences.
-
Pump Control Function — Directly control connected vacuum pumps through the controller interface.
-
Boiling Point Optimization — Intelligently adjusts vacuum levels to optimize solvent boiling points for efficient distillation.
-
5-Stage Gradient Program — Programmable multi-stage vacuum distillation sequences for complex separation protocols.
-
Curve Tracking — Visual real-time vacuum curve display for process analysis and documentation.
-
One-Click Gas Release — Instant vacuum release with a single touch — safe and convenient venting at process end.
-
5" Touch Screen Display — Large, responsive HD touch screen for easy parameter setting and real-time monitoring.
-
Corrosive Environment Ready — Metal alloy cabinet and resistant piping rated for operation in chemically harsh lab settings.
| Parameter | Value |
|---|---|
| Model | LMVC76 |
| Make | LABMAN |
| Pressure Measuring Range | 0 ~ 760 mmHg | 0 ~ 1013 mbar |
| Pressure Setting Range | 1 ~ 760 mmHg | 1 ~ 1013 mbar |
| Control Accuracy | 2 mbar (200 Pa) |
| Display | 5" Touch Screen |
| Pressure Release | One-key release |
| Interface | RS485 |
| Programmable | Yes |
| Gradient Program | Available (5 Stages) |
| Curve | Available |
| Unit Selection | kPa, mbar, mmHg |
| Piping Material | Acid & Alkaline Resistant |
| Piping Size | 8 mm |
| Housing Material | Metal Alloy Cabinet |
| Ambient Temperature | 10°C ~ 40°C |
| Power Supply | AC 220V, 50/60 Hz |
| Instrument Dimensions (L×W×H) | 130 × 255 × 265 mm |
| Packing Dimensions (L×W×H) | 455 × 390 × 260 mm |
| Weight | 4 kg |
| HSN Code | 84198990 |
