These Single Stage Vacuum Pumps are well built
• Forced oil cycling system
• Integrated body structure
• Big sight glass for monitoring oil level

Model VE-115N VE-125N VE-135N VE-160N VE-180N
Flow Rate 50 Hz 1.8 CFM 2.5 CFM 3.5 CFM 6.0 CFM 8.0 CFM
51L/min 70L/min 100L/min 170L/min 226L/min
60 Hz 2.0 CFM 3.0 CFM 4.0 CFM 7.0 CFM 9.0 CFM
57L/min 84L/min 113l/min 198l/min 254/min
Ultimate Vacuum Partial Pressure 2Pa 2Pa 2Pa 2Pa 2Pa
Total Pressure 150 micron 150 micron 150 micron 150 micron 150 micron
Power(kw) 1/4 HP 1/4 HP 1/3 HP 1/2 HP 3/4 HP
Inlet Port 1/4″ Flare 1/4″ Flare 1/4″ & 3/8″ Flare 1/4″ & 3/8″ Flare 1/4″ & 3/8″ Flare
Oil Capacity 250 ml 250 ml 250 ml 415 ml 660 ml
Dimensions 290 x 124 x 224 mm 290 x 124 x 224 mm  318 x 124 x 234 mm 338 x 138 x 244 mm 395 x 145 x 257 mm
Weight(kg) 6.6 kgs 7.1 kgs 8.0 kgs 9.9 kgs 14.6 kgs

Acutek

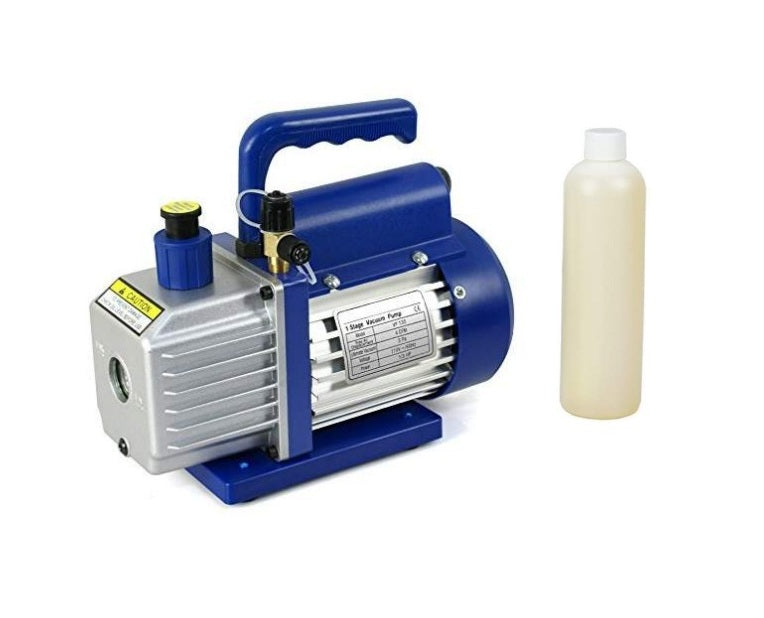

Single Stage Value Vacuum Pump 1/4HP

SKU VE-115N
Rs.10,000.00
Rs.5,999.00

These Single Stage Vacuum Pumps are well built
• Forced oil cycling system
• Integrated body structure
• Big sight glass for monitoring oil level

Model VE-115N VE-125N VE-135N VE-160N VE-180N
Flow Rate 50 Hz 1.8 CFM 2.5 CFM 3.5 CFM 6.0 CFM 8.0 CFM
51L/min 70L/min 100L/min 170L/min 226L/min
60 Hz 2.0 CFM 3.0 CFM 4.0 CFM 7.0 CFM 9.0 CFM
57L/min 84L/min 113l/min 198l/min 254/min
Ultimate Vacuum Partial Pressure 2Pa 2Pa 2Pa 2Pa 2Pa
Total Pressure 150 micron 150 micron 150 micron 150 micron 150 micron
Power(kw) 1/4 HP 1/4 HP 1/3 HP 1/2 HP 3/4 HP
Inlet Port 1/4″ Flare 1/4″ Flare 1/4″ & 3/8″ Flare 1/4″ & 3/8″ Flare 1/4″ & 3/8″ Flare
Oil Capacity 250 ml 250 ml 250 ml 415 ml 660 ml
Dimensions 290 x 124 x 224 mm 290 x 124 x 224 mm  318 x 124 x 234 mm 338 x 138 x 244 mm 395 x 145 x 257 mm
Weight(kg) 6.6 kgs 7.1 kgs 8.0 kgs 9.9 kgs 14.6 kgs
Rs.10,000.00
Rs.5,999.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

These Single Stage Vacuum Pumps are well built
• Forced oil cycling system
• Integrated body structure
• Big sight glass for monitoring oil level

Model VE-115N VE-125N VE-135N VE-160N VE-180N
Flow Rate 50 Hz 1.8 CFM 2.5 CFM 3.5 CFM 6.0 CFM 8.0 CFM
51L/min 70L/min 100L/min 170L/min 226L/min
60 Hz 2.0 CFM 3.0 CFM 4.0 CFM 7.0 CFM 9.0 CFM
57L/min 84L/min 113l/min 198l/min 254/min
Ultimate Vacuum Partial Pressure 2Pa 2Pa 2Pa 2Pa 2Pa
Total Pressure 150 micron 150 micron 150 micron 150 micron 150 micron
Power(kw) 1/4 HP 1/4 HP 1/3 HP 1/2 HP 3/4 HP
Inlet Port 1/4″ Flare 1/4″ Flare 1/4″ & 3/8″ Flare 1/4″ & 3/8″ Flare 1/4″ & 3/8″ Flare
Oil Capacity 250 ml 250 ml 250 ml 415 ml 660 ml
Dimensions 290 x 124 x 224 mm 290 x 124 x 224 mm  318 x 124 x 234 mm 338 x 138 x 244 mm 395 x 145 x 257 mm
Weight(kg) 6.6 kgs 7.1 kgs 8.0 kgs 9.9 kgs 14.6 kgs
