• MEASUREMENT CAPABILITIES: Measures acceleration (0.1-199.9m/s²), velocity (0.1-199.9mm/s), and displacement (0.001-1.999mm) with ±5% accuracy for comprehensive vibration analysis.
  • ADVANCED FEATURES: LCD backlight display with 3½ digits, maximum value hold function, and auto power-off after 60 seconds for efficient operation.
  • FREQUENCY RANGES: Dual-range acceleration measurement (10Hz-1KHz LO, 1KHz-15KHz HI) and single-range velocity/displacement measurement (10Hz-1KHz).
  • VERSATILE PROBES: Includes both long and short probe heads with magnetic attachment option for various measurement scenarios and precise data collection.
  • OPERATING CONDITIONS: Functions effectively in temperatures from 0-40°C and humidity range of 30-90%RH, with low battery indication at 6.4V±0.2V.

Detection method

Piezoelectric ceramic accelerometer (shear-type)

Acceleration Measuring Range Displacement Measuring Range Accuracy

Display Separate magnetic probe
• Auto. power off after 60 secs • Different vibration frequency

update time Features

0.1 to 199.9 m/s2 peak 0.001 to 1.999 mm ±5% ±2 digits

1 sec

selection

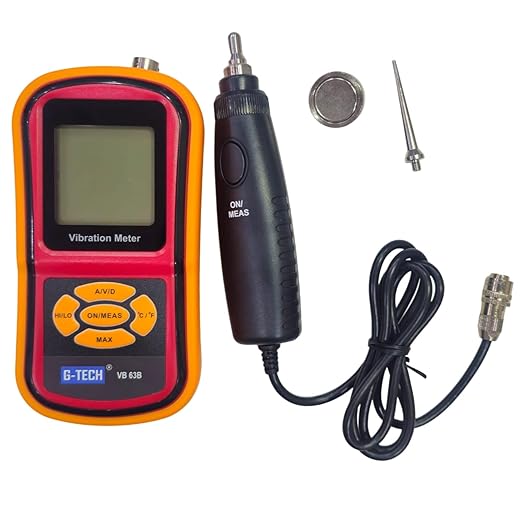

• Long and short probe head

provided for different situations • Low power indication

Velocity Measuring Range

0.1 to 199.9 mm/s rms

Modes

Acceleration/Velocity/Displacement

Range of acceleration

10 Hz to 1 kHz (LO), 1 kHz to 15 kHz (HI)

LCD Display 3 1⁄2

digit display

Power Source

1 x 9 V (6F22)

Acutek

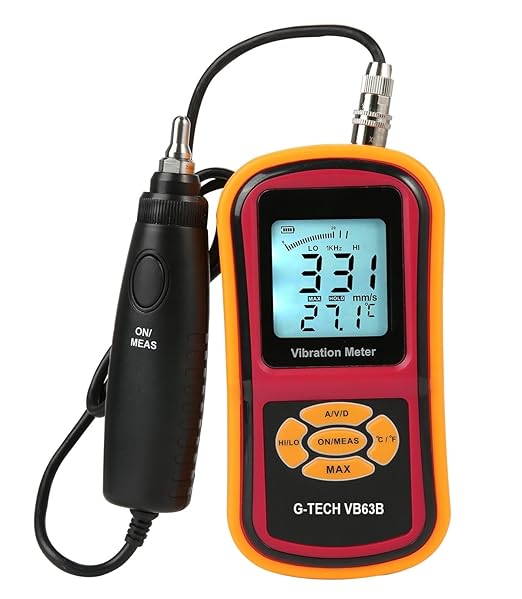

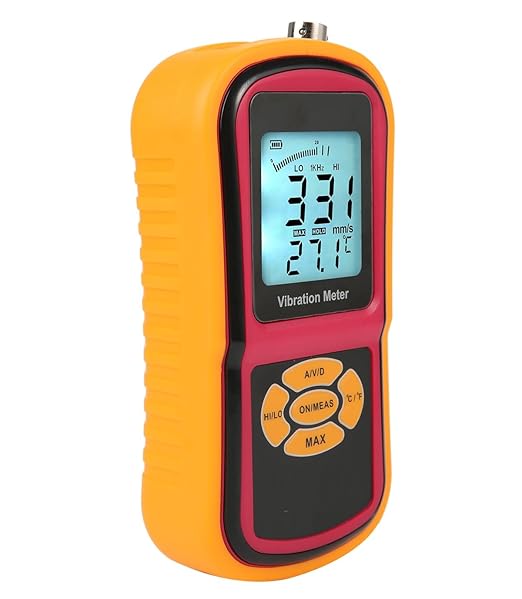

Digital Vibration Meter with Probe

SKU GM-63B
Rs.18,000.00
Rs.12,999.00
  • MEASUREMENT CAPABILITIES: Measures acceleration (0.1-199.9m/s²), velocity (0.1-199.9mm/s), and displacement (0.001-1.999mm) with ±5% accuracy for comprehensive vibration analysis.
  • ADVANCED FEATURES: LCD backlight display with 3½ digits, maximum value hold function, and auto power-off after 60 seconds for efficient operation.
  • FREQUENCY RANGES: Dual-range acceleration measurement (10Hz-1KHz LO, 1KHz-15KHz HI) and single-range velocity/displacement measurement (10Hz-1KHz).
  • VERSATILE PROBES: Includes both long and short probe heads with magnetic attachment option for various measurement scenarios and precise data collection.
  • OPERATING CONDITIONS: Functions effectively in temperatures from 0-40°C and humidity range of 30-90%RH, with low battery indication at 6.4V±0.2V.

Detection method

Piezoelectric ceramic accelerometer (shear-type)

Acceleration Measuring Range Displacement Measuring Range Accuracy

Display Separate magnetic probe
• Auto. power off after 60 secs • Different vibration frequency

update time Features

0.1 to 199.9 m/s2 peak 0.001 to 1.999 mm ±5% ±2 digits

1 sec

selection
• Long and short probe head

provided for different situations • Low power indication

Velocity Measuring Range

0.1 to 199.9 mm/s rms

Modes

Acceleration/Velocity/Displacement

Range of acceleration

10 Hz to 1 kHz (LO), 1 kHz to 15 kHz (HI)

LCD Display 3 1⁄2

digit display

Power Source

1 x 9 V (6F22)

Rs.18,000.00
Rs.12,999.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

  • MEASUREMENT CAPABILITIES: Measures acceleration (0.1-199.9m/s²), velocity (0.1-199.9mm/s), and displacement (0.001-1.999mm) with ±5% accuracy for comprehensive vibration analysis.
  • ADVANCED FEATURES: LCD backlight display with 3½ digits, maximum value hold function, and auto power-off after 60 seconds for efficient operation.
  • FREQUENCY RANGES: Dual-range acceleration measurement (10Hz-1KHz LO, 1KHz-15KHz HI) and single-range velocity/displacement measurement (10Hz-1KHz).
  • VERSATILE PROBES: Includes both long and short probe heads with magnetic attachment option for various measurement scenarios and precise data collection.
  • OPERATING CONDITIONS: Functions effectively in temperatures from 0-40°C and humidity range of 30-90%RH, with low battery indication at 6.4V±0.2V.

Detection method

Piezoelectric ceramic accelerometer (shear-type)

Acceleration Measuring Range Displacement Measuring Range Accuracy

Display Separate magnetic probe
• Auto. power off after 60 secs • Different vibration frequency

update time Features

0.1 to 199.9 m/s2 peak 0.001 to 1.999 mm ±5% ±2 digits

1 sec

selection
• Long and short probe head

provided for different situations • Low power indication

Velocity Measuring Range

0.1 to 199.9 mm/s rms

Modes

Acceleration/Velocity/Displacement

Range of acceleration

10 Hz to 1 kHz (LO), 1 kHz to 15 kHz (HI)

LCD Display 3 1⁄2

digit display

Power Source

1 x 9 V (6F22)
