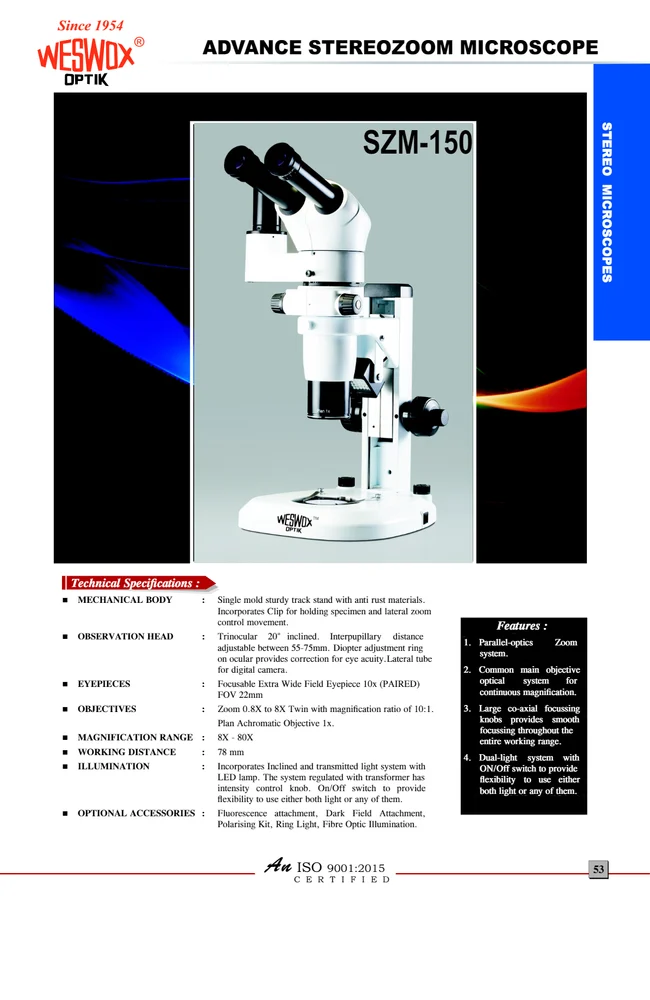

Technical Specifications:

MECHANICALBODY: Single mold sturdy track stand with anti rust materials. Incorporates Clip for holding specimen and lateral zoom control movement.

OBSERVATIONHEAD: Trinocular 20inclined. Interpupillary distance adjustable between 55-75mm. Diopter adjustment ring on ocular provides correction for eye acuity. Lateral tube for digital camera.

EYEPIECES: Focusable Extra Wide Field Eyepiece 10x (PAIRED) FOV 22mm.

OBJECTIVES: Zoom 0.8X to 8X Twin with magnification ratio of 10:1.Plan Achromatic Objective 1x.

MAGNIFICATIONRANGE: 8X - 80XWORKINGDISTANCE: 78 mm.

ILLUMINATION: Incorporates Inclined and transmitted light system with LED lamp. The system regulated with transformer has intensity control knob. On/Off switch to provide flexibility to use either both light or any of them.

OPTIONALACCESSORIES: Fluorescence attachment, Dark Field Attachment, Polarising Kit, Ring Light, Fibre Optic Illumination
