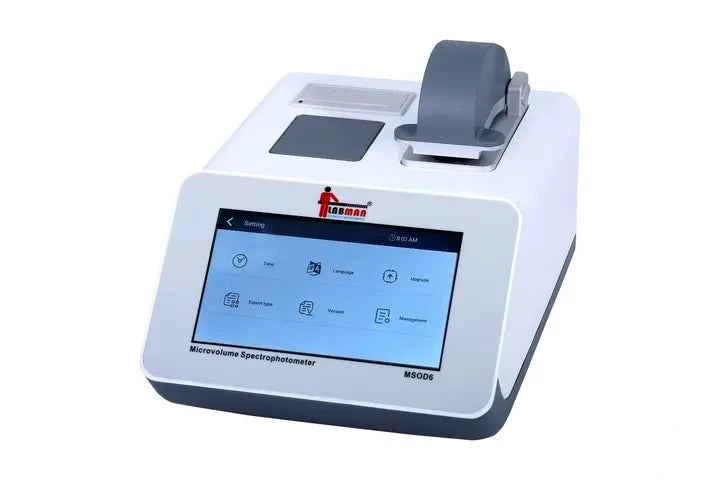

Microvolume Spectrophotometer (Biophotometer) MSOD6 - Labmart.in

Product Description

A microvolume spectrophotometer designed to measure the absorbance or concentration of molecules in extremely small sample volumes, typically in the microliter (μL) range. This technology has revolutionized the field of molecular biology, biochemistry, and genomics by enabling researchers to analyze precious samples with high accuracy

SALIENT FEATURES:

Microvolume Spectrophotometer have full wavelength detection 190-850nm.
 4 Optical path detection Technology Mode, Stabilility, Repeatability, Linearity
 OD600 measurement optical path detection system, Nucleic Acid Test, Protein Analysis, Colorimetric Method
 UV-Vis Detection, Kinetics
 Fluorescence quantitative reagent can detect pg concentration dsDNA
 Micro Sample Volume can accurately detect nucleic acid, protein, and cell solutions
 using only 0.5 to 2 μL of sample.
 Cuvette Mode for bacteria and other culture fluid concentration detection.
 Fluorescence Detection detection for precise quantification of DNA, RNA, and protein concentrations
 using fluorescent dyes.
 Nucleic acid assays can be performed by directly spotting the sample onto the spiking plate
 eliminating the need for colorimetric cups or capillaries.
 Quick and simple measurement steps.
 Aluminium Box Packing

SPECIFICATIONS:

MODEL

LMSPUV1000B

Make

LABWAN

Wavelength Range

190-850nm

Sample Wavelength Scanning

190 ~850nm

Sample Volume

0.5-2 μL

Optical Path (4)

0.02mm, 0.05mm (high concentration measurement),

0.2mm, 1.0mm (general concentration measurement)

Nucleic Acid Testing Range

2-27500ng/μL (dsDNA)

Light Source

Xenon flash lamp

Number of Detector

1

Detectors

UV-enhanced CMOS Line Array Sensors

Absorbance Accuracy

0.002Abs (0.2mm Light Range), ±1% (7.332Abs at 260nm)

Absorbance Range

0.02-3.00A

OD600 Absorbance Range

0~6.000 Abs

OD600 Stability

(0.3) ≤0.5%,(3.4) ≤2%

Od600 Repeatability of Absorbance

(0.3) ≤0.5%, (3.4) ≤2%

Testing

Time

Fluorescence Linearity

R >0.995

Fluorescence Repeatability

<1.5%

Fluorescence Sensitivity

dsDNA 0.5pg/μL

Sample Base Material

Quartz Fiber and Stainless Steel

Display

7" Touch Screen

Output

USB Interface

Operating System

Built-In Android OS

Printing

In-built Thermal Printer

Power Supply

Adaptor, AC 220V / 50Hz

Packing Dimension (LxWxH)

555 x 410 x 330mm

Gross Weight 10kg

10kg
