Product Description

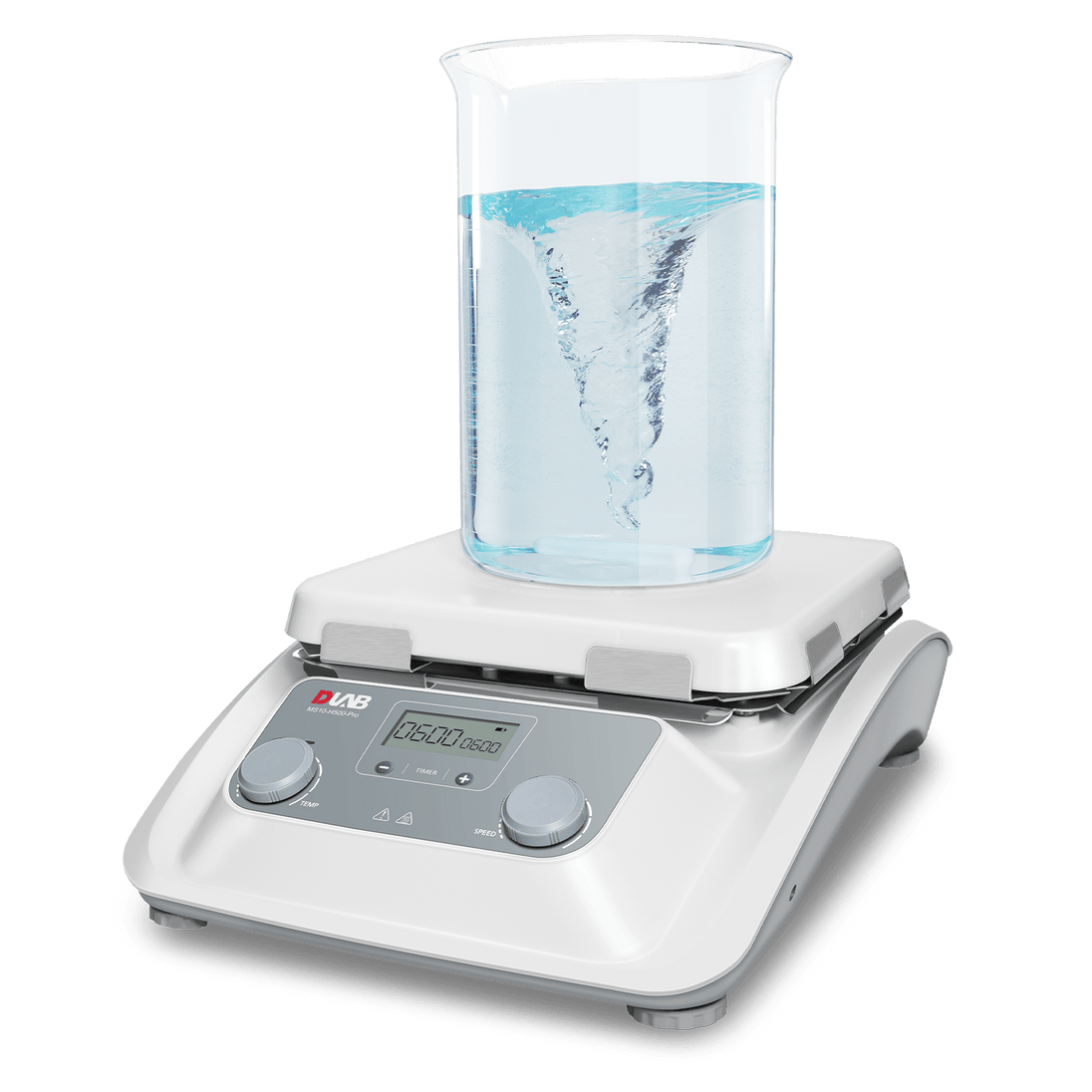

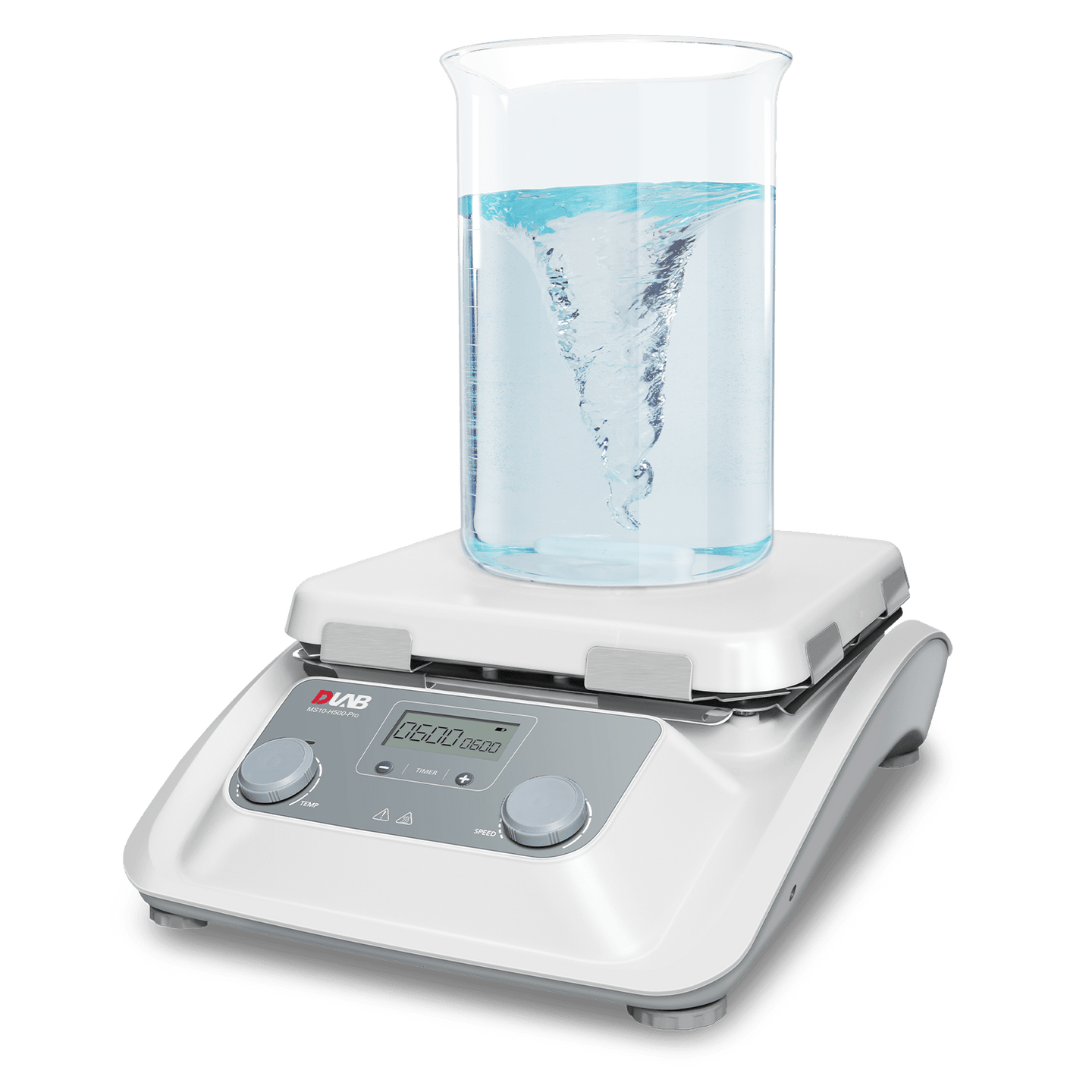

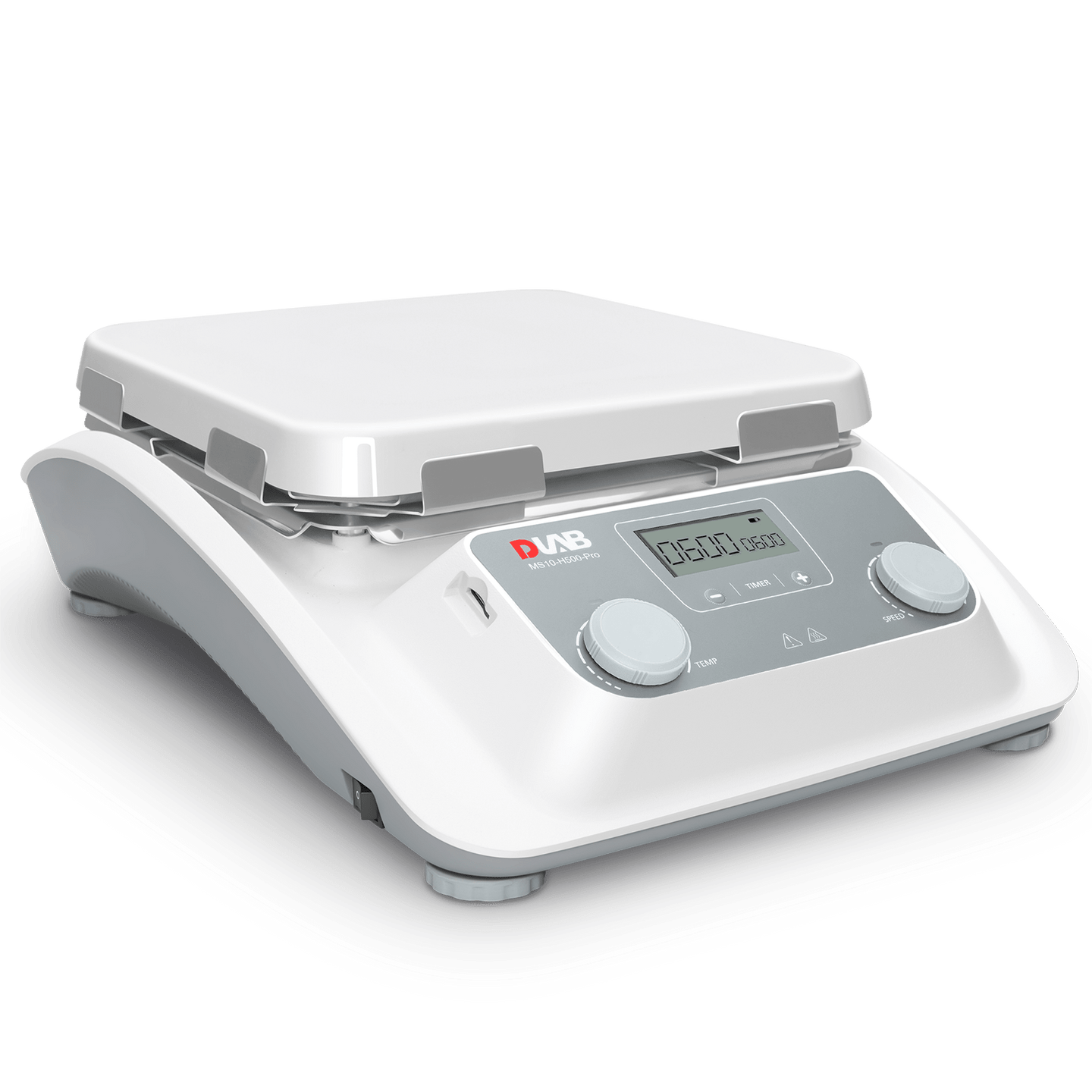

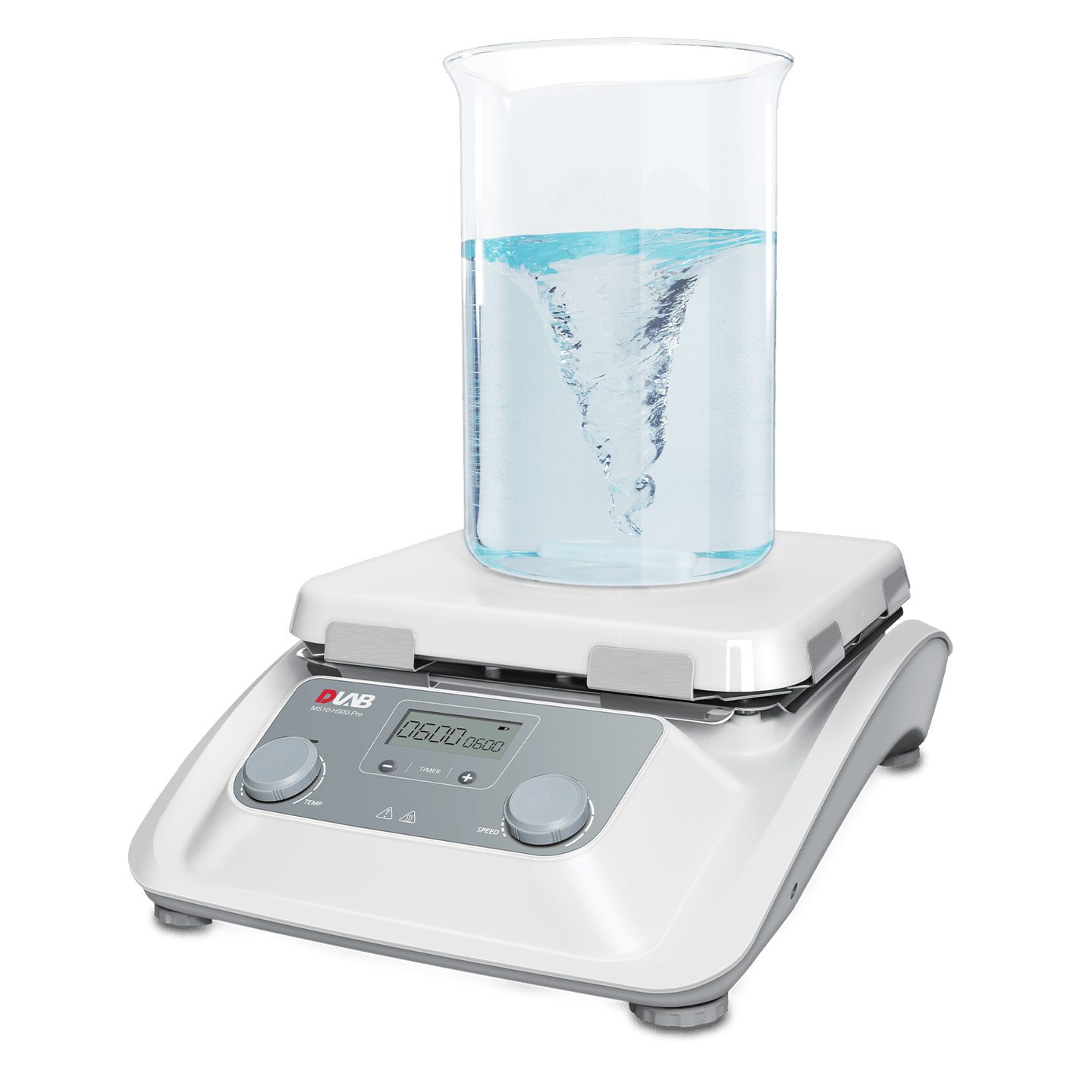

The MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer provides superior performance for demanding applications that require high-quality heating and stirring. This digital magnetic stirrer has a 10 inch glass ceramic work plate which is easy to clean, has very high chemical resistance, and distributes heat evenly up to a temperature of 500°C. The user has the ability to select from 100-1500 rpm, utilizing a powerful brushless DC motor, enabling the stirring of products with a volume of up to 30L with no strain. The LCD provides a clear view of real-time parameters, while the built-in safety precautions offer over-temperature and 'HOT' feature warnings for a safer experience. This high temperature magnetic hotplate stirrer is an excellent choice for research, pharmaceutical, and industrial laboratories with high-volume throughput, who have demanding applications in laboratory requirements.

Key Features

Performance

  • Large 10-inch work surface for versatile applications
  • Precise temperature control up to 500°C
  • Powerful stirring from up to 1500 rpm
  • Handles large volumes up to 30L

Design

  • Glass ceramic work plate for excellent chemical resistance
  • LCD display for speed, temperature, and time monitoring

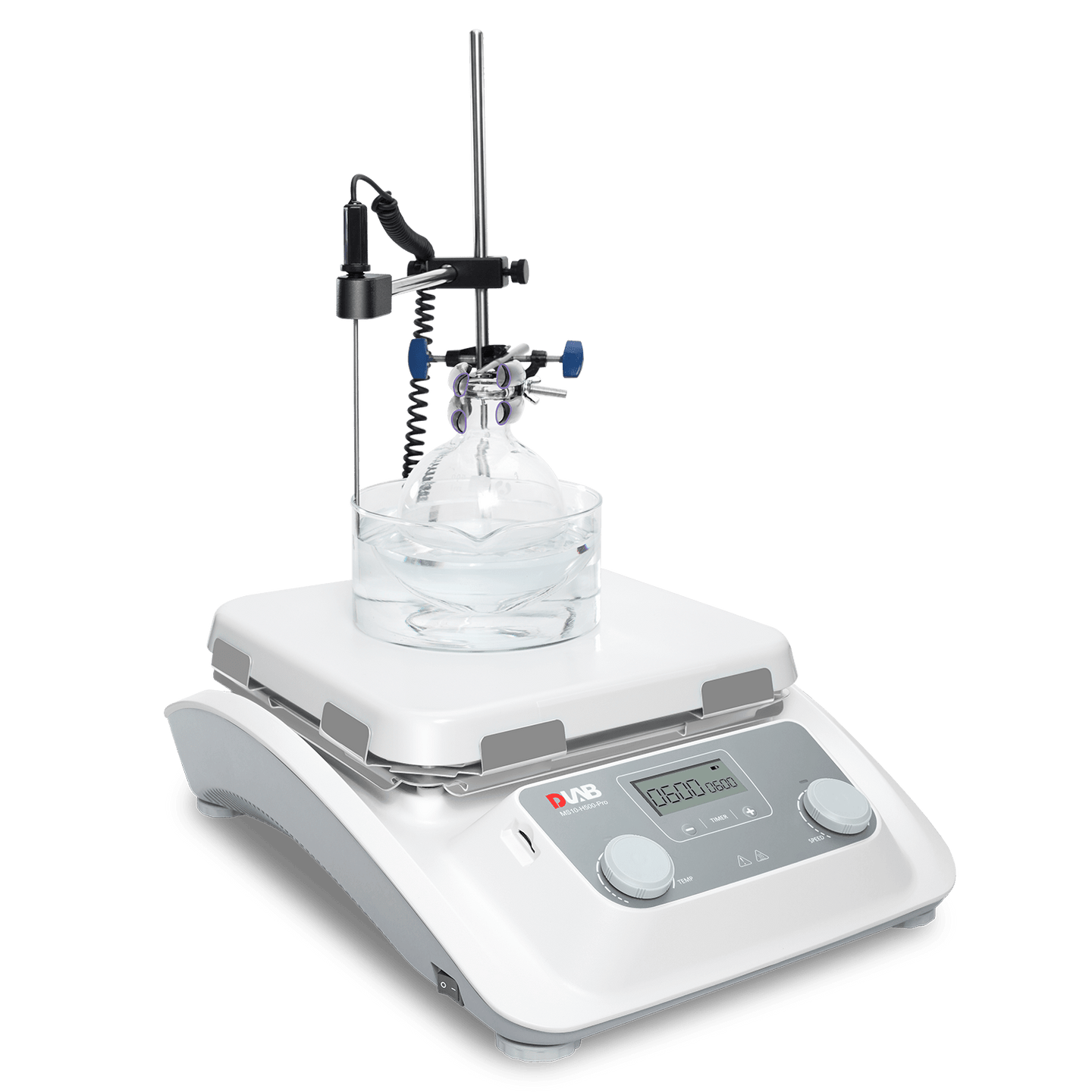

  • External temperature sensor support (PT1000)
  • Compact yet powerful design

Safety

  • Over-temperature protection system
  • 'HOT' warning indicator above 50°C
  • Brushless DC motor for spark-free operation
  • Dual safety circuits for maximum protection

Technical Specifications

Functionality

  • Stirring Speed: 100–1500 rpm (±1 rpm)
  • Heating Range: Room temperature - 500°C
  • Display: LCD digital
  • Timer: 1min–99h59min

Applications

  • Synthesis: Suitable for chemical synthesis and research
  • Pharma: Ideal for pharmaceutical development
  • Research Labs: Perfect for academic and research laboratories
  • Workflow: Supports routine and advanced laboratory processes

Physical Structure

  • Work Plate Size: 254 × 254 mm (10-inch)
  • Work Plate Material: Glass ceramic
  • Max. Stirring Quantity: 30L (H₂O)
  • Dimensions: 328 × 424 × 138 mm

Power & Safety

  • Motor Type: Brushless DC motor
  • Power: 1700W
  • Heating Output: 1500W
  • Safety Temperature: 540°C cutoff
