Product Description

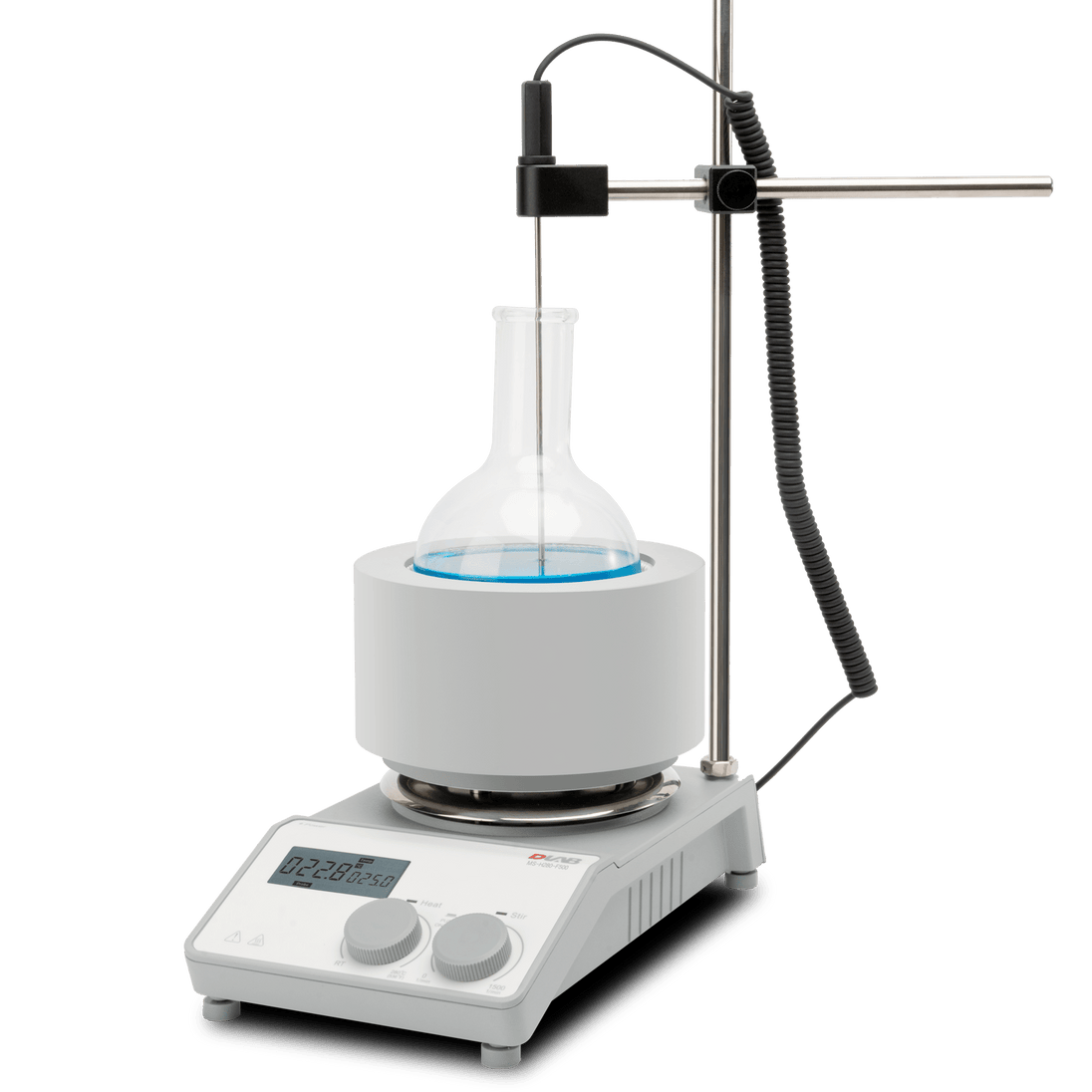

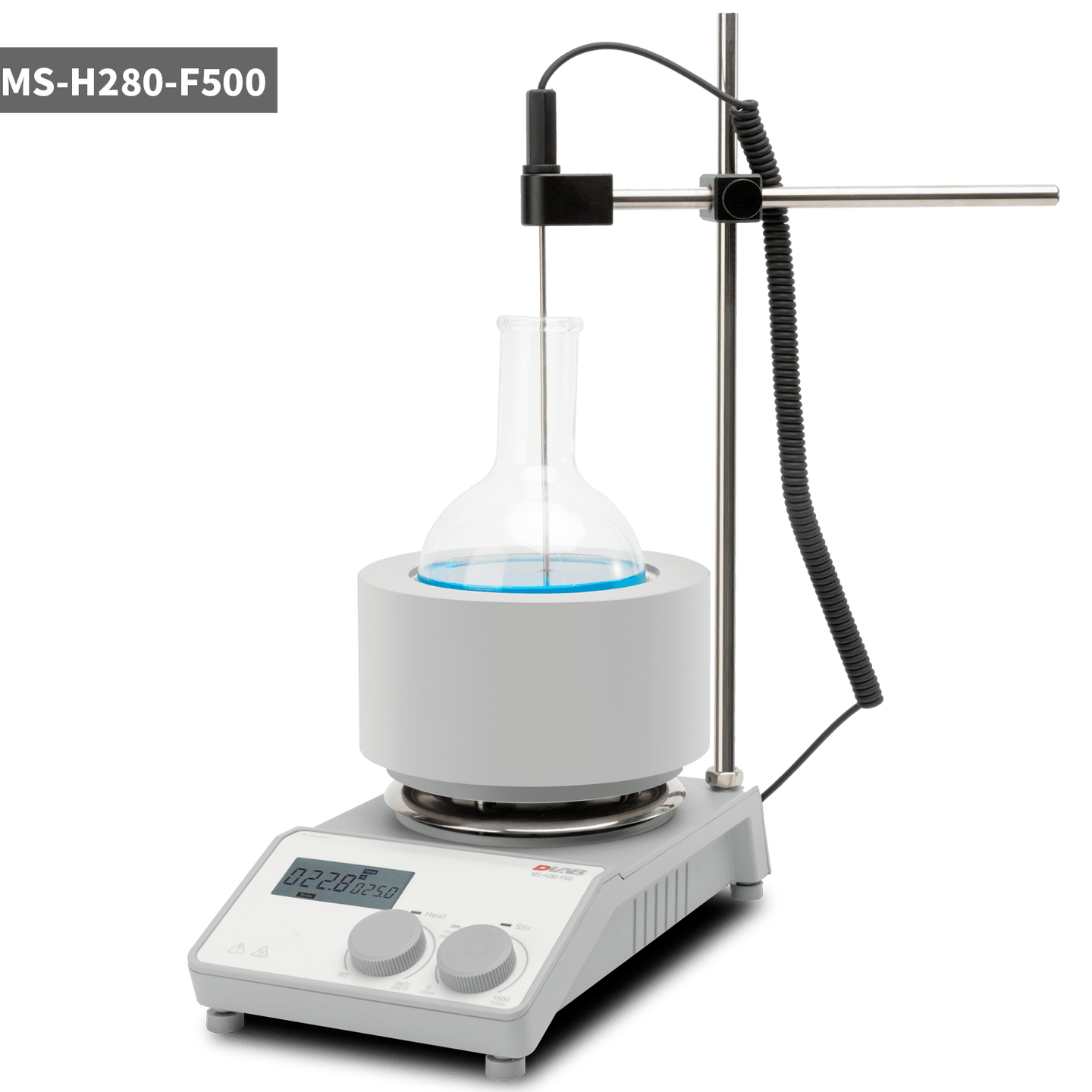

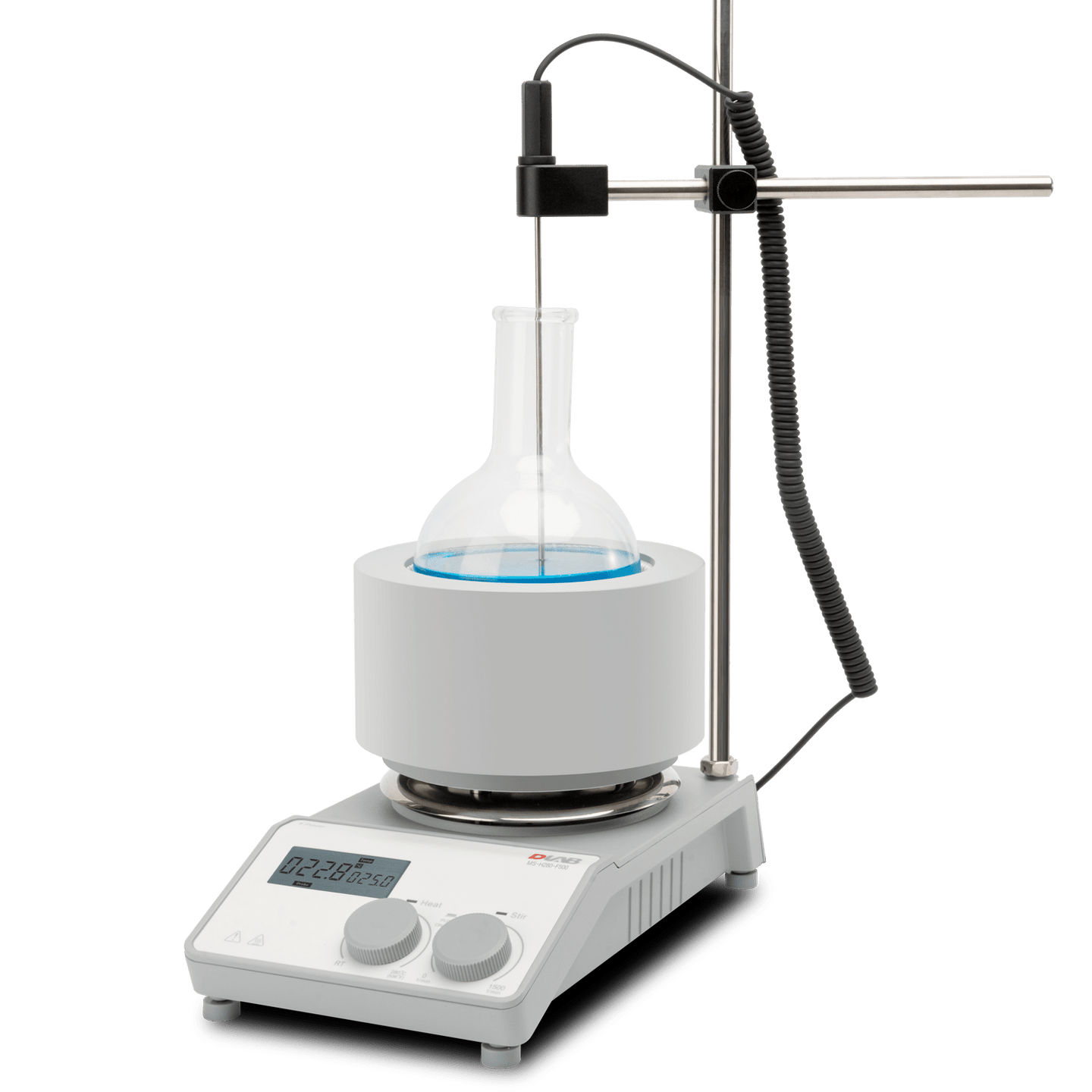

The LCD Digital Magnetic Stirrer MS-H280-F500 provides precise performance for labs needing reliable heating and stirring. This digital magnetic stirrer features an incorporated heating mantle that holds 500mL round bottom flasks with electrical heating up to 280°C consistently. The MS-H280-F500 also has smooth stirring from 200-1500 rpm and an LCD for visualizing and intercepting all parameters to monitor the process. With safety features like over-temperature protection and residual heat alerts, the MS-H280-F500 is the lab stirrer with heating for chemical processes, pharmaceutical processes, and educational experiments needing reliable 500mL volume measurement processes.

Key Features

Performance

  • Electric heating up to 280°C
  • Smooth stirring from 200–1500 rpm
  • Optimized for 500 mL round-bottom flasks
  • Powerful magnetic coupling system for reliable mixing

Design

  • Dedicated flask heating mantle
  • LCD digital display for real-time monitoring
  • Ceramic-coated aluminum surface for fast heat transfer
  • Space-saving benchtop design suitable for modern labs

Safety

  • Comprehensive over-temperature protection
  • 'HOT' warning indicator above 50°C
  • Brushless DC motor technology for spark-free operation
  • Dual independent safety circuits for each unit

Technical Specifications

Functionality

  • Stirring Speed: 200–1500 rpm (±20 rpm)
  • Heating Range: Room temperature to 280°C
  • Display Type: LCD digital
  • Weight: 3.7 kg

Applications

  • Synthesis: Suitable for chemical synthesis processes
  • Pharma: Ideal for pharmaceutical development
  • Preparation: Useful for sample preparation in laboratories
  • Education: Supports educational laboratory experiments

Physical Structure

  • Compatible Flask: 500 mL round-bottom flasks
  • Heating Mantle Inner Diameter: 118.75 mm
  • Work Plate Material: Ceramic-coated aluminum
  • Dimensions: 295 × 160 × 160 mm

Power & Safety

  • Motor Type: Brushless DC motor
  • Heating Power: 380W
  • Over-temperature Protection: 420°C
  • Residual Heat Warning: 'HOT' indicator activates above 50°C
