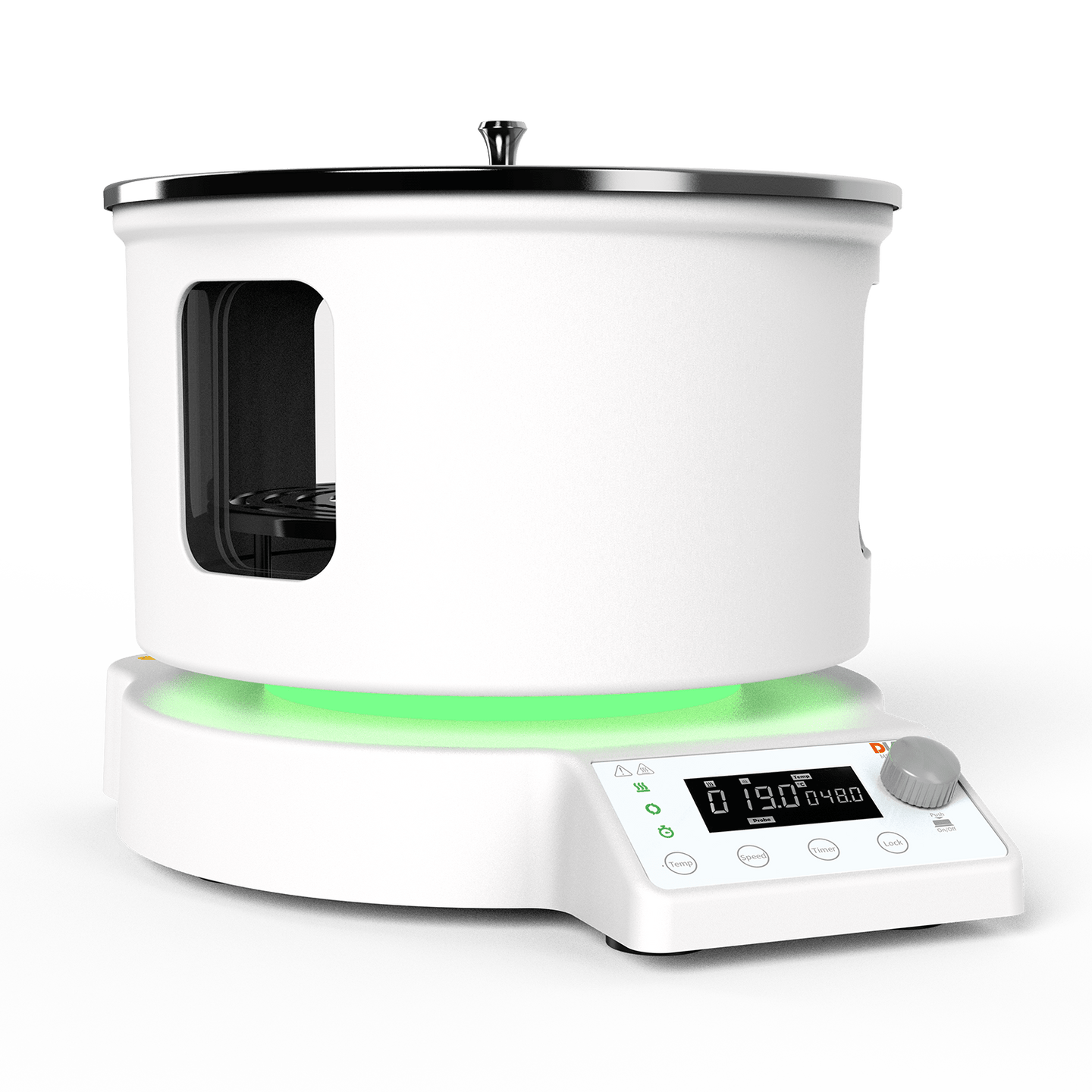

The MS-H220-V5 LCD Digital Heating Magnetic Stirring Bath combines powerful mixing and precise heating in one robust system. Designed with a high borosilicate glass liner and stainless steel base, it offers excellent visibility and corrosion resistance for demanding laboratory environments. This advanced digital magnetic stirrer delivers reliable performance with a stirring range of 100–1500 rpm and heating up to 220°C. The clear LCD displays all parameters while the integrated timer (1min–99h59min) automates your workflow. With multiple safety protections and 5L capacity, it's the ideal lab stirrer with temperature control for pharmaceutical, chemical, and industrial applications.
Key Features
Performance
- Wide stirring range: 100–1500 rpm
- Precise heating up to 220°C
- Suitable for both water and oil bath applications
- Handles larger volumes with a 5L maximum capacity
Design
- Dimensions: 343 × 228 × 283 mm
- Weight: 6.7 kg
- LCD display for real-time monitoring of all parameters
- Integrated timer function from 1 minute to 99 hours 59 minutes
Safety
- Safety lock prevents accidental parameter changes
- Multiple protection systems: dry burning, overcurrent, overtemperature
- Residual heat warning ('HOT') alerts users to high temperatures
- Brushless DC motor ensures spark-free and maintenance-free operation
Technical Specifications
Functionality
- Stirring Speed: 100–1500 rpm (±10 rpm)
- Heating Range: Room Temperature to 220°C
- Timer: 1 minute to 99 hours 59 minutes
- Display: LCD display for speed, temperature, and time
Applications
- Synthesis: Ideal for chemical synthesis and reactions
- Pharma: Perfect for pharmaceutical development
- Research: Suitable for academic research and teaching labs
- Processing: Efficient for sample preparation and heating processes
Physical Structure
- Bath Size: Ø240×135 mm
- Max Flask Volume: 5 L
- Material: High borosilicate glass & stainless steel
- Dimensions: 343×228×283 mm
Power & Safety
- Motor: Brushless DC motor, 50W
- Heating Output: 1300W
- Safety Features: Over-temperature, dry burning, and ground fault protection
- Residual Heat Warning: 'HOT' indicator activates above 50°C
The MS-H220-V5 LCD Digital Heating Magnetic Stirring Bath combines powerful mixing and precise heating in one robust system. Designed with a high borosilicate glass liner and stainless steel base, it offers excellent visibility and corrosion resistance for demanding laboratory environments. This advanced digital magnetic stirrer delivers reliable performance with a stirring range of 100–1500 rpm and heating up to 220°C. The clear LCD displays all parameters while the integrated timer (1min–99h59min) automates your workflow. With multiple safety protections and 5L capacity, it's the ideal lab stirrer with temperature control for pharmaceutical, chemical, and industrial applications.
Key Features
Performance
- Wide stirring range: 100–1500 rpm
- Precise heating up to 220°C
- Suitable for both water and oil bath applications
- Handles larger volumes with a 5L maximum capacity
Design
- Dimensions: 343 × 228 × 283 mm
- Weight: 6.7 kg
- LCD display for real-time monitoring of all parameters
- Integrated timer function from 1 minute to 99 hours 59 minutes
Safety
- Safety lock prevents accidental parameter changes
- Multiple protection systems: dry burning, overcurrent, overtemperature
- Residual heat warning ('HOT') alerts users to high temperatures
- Brushless DC motor ensures spark-free and maintenance-free operation
Technical Specifications
Functionality
- Stirring Speed: 100–1500 rpm (±10 rpm)
- Heating Range: Room Temperature to 220°C
- Timer: 1 minute to 99 hours 59 minutes
- Display: LCD display for speed, temperature, and time
Applications
- Synthesis: Ideal for chemical synthesis and reactions
- Pharma: Perfect for pharmaceutical development
- Research: Suitable for academic research and teaching labs
- Processing: Efficient for sample preparation and heating processes
Physical Structure
- Bath Size: Ø240×135 mm
- Max Flask Volume: 5 L
- Material: High borosilicate glass & stainless steel
- Dimensions: 343×228×283 mm
Power & Safety
- Motor: Brushless DC motor, 50W
- Heating Output: 1300W
- Safety Features: Over-temperature, dry burning, and ground fault protection
- Residual Heat Warning: 'HOT' indicator activates above 50°C
- Regular price
- Rs.0.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
The MS-H220-V5 LCD Digital Heating Magnetic Stirring Bath combines powerful mixing and precise heating in one robust system. Designed with a high borosilicate glass liner and stainless steel base, it offers excellent visibility and corrosion resistance for demanding laboratory environments. This advanced digital magnetic stirrer delivers reliable performance with a stirring range of 100–1500 rpm and heating up to 220°C. The clear LCD displays all parameters while the integrated timer (1min–99h59min) automates your workflow. With multiple safety protections and 5L capacity, it's the ideal lab stirrer with temperature control for pharmaceutical, chemical, and industrial applications.
Key Features
Performance
- Wide stirring range: 100–1500 rpm
- Precise heating up to 220°C
- Suitable for both water and oil bath applications
- Handles larger volumes with a 5L maximum capacity
Design
- Dimensions: 343 × 228 × 283 mm
- Weight: 6.7 kg
- LCD display for real-time monitoring of all parameters
- Integrated timer function from 1 minute to 99 hours 59 minutes
Safety
- Safety lock prevents accidental parameter changes
- Multiple protection systems: dry burning, overcurrent, overtemperature
- Residual heat warning ('HOT') alerts users to high temperatures
- Brushless DC motor ensures spark-free and maintenance-free operation
Technical Specifications
Functionality
- Stirring Speed: 100–1500 rpm (±10 rpm)
- Heating Range: Room Temperature to 220°C
- Timer: 1 minute to 99 hours 59 minutes
- Display: LCD display for speed, temperature, and time
Applications
- Synthesis: Ideal for chemical synthesis and reactions
- Pharma: Perfect for pharmaceutical development
- Research: Suitable for academic research and teaching labs
- Processing: Efficient for sample preparation and heating processes
Physical Structure
- Bath Size: Ø240×135 mm
- Max Flask Volume: 5 L
- Material: High borosilicate glass & stainless steel
- Dimensions: 343×228×283 mm
Power & Safety
- Motor: Brushless DC motor, 50W
- Heating Output: 1300W
- Safety Features: Over-temperature, dry burning, and ground fault protection
- Residual Heat Warning: 'HOT' indicator activates above 50°C
