files/MeltingPointApparatusS9740.png

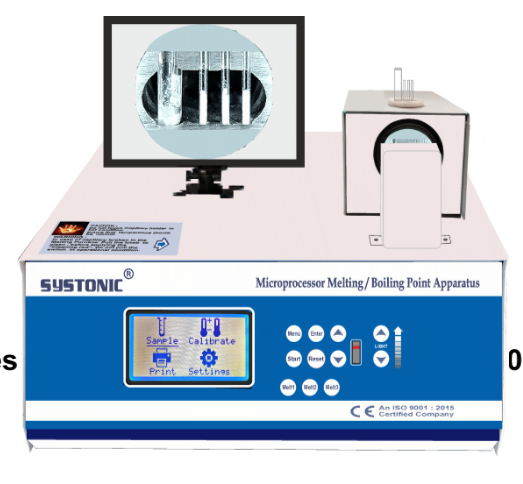

The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key.
Features:-
- 128 X 64 Graphical LCD Display
- High Resolution Camera for Viewing Capillaries
- Grade “A” PT-100, Platinum Sensor
- USB to PC Interface
Technical Specifications: –
| Temp. Range | Ambient to 350ºC |
| Display | 128 X 64 Graphical LCD |
| TFT Screen | High Resolution Camera for viewing capillaries |
| Resolution | 0.1ºC |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity |
3+1 Samples (one 6mm provision) Test Tube, for the
determination of Boiling Point of Any Liquid. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Temp. Control & Ramp Rate Heating |
Microprocessor controlled closed loop PID, Auto / Adjustable
Ramp Rate Heating 2ºC to 10ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation |
|
Melting View |
Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| PC Interface | USB to PC |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 270X330X160 mm (LXBX) |
| Weight | 8.5 KG |
- Regular price
- Rs.70,000.00
- Sale price
- Rs.50,000.00
The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key.
Features:-
- 128 X 64 Graphical LCD Display
- High Resolution Camera for Viewing Capillaries
- Grade “A” PT-100, Platinum Sensor
- USB to PC Interface
Technical Specifications: –
| Temp. Range | Ambient to 350ºC |
| Display | 128 X 64 Graphical LCD |
| TFT Screen | High Resolution Camera for viewing capillaries |
| Resolution | 0.1ºC |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity |
3+1 Samples (one 6mm provision) Test Tube, for the
determination of Boiling Point of Any Liquid. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Temp. Control & Ramp Rate Heating |
Microprocessor controlled closed loop PID, Auto / Adjustable
Ramp Rate Heating 2ºC to 10ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation |
|
Melting View |
Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| PC Interface | USB to PC |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 270X330X160 mm (LXBX) |
| Weight | 8.5 KG |
- Regular price
- Rs.70,000.00
- Sale price
- Rs.50,000.00
GST Invoice included
(Save 18% on business purchases)
Need Quote ?
Get Bulk Order Quotation for your lab or Tender Quotation at special discounts !
Contact our support team at support@labmart.in to get the best quote for your bulk order requirement.
Sales Support - +918920746300
Technical Support- +919667893959
Kindly allow us a time of 2-3 days to properly match all the inquired specs, we will also provide authorization(s) to dealers for particular tenders (on tender basis)
Product Description
The instrument basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the “MELT” key.
Features:-
- 128 X 64 Graphical LCD Display
- High Resolution Camera for Viewing Capillaries
- Grade “A” PT-100, Platinum Sensor
- USB to PC Interface
Technical Specifications: –
| Temp. Range | Ambient to 350ºC |
| Display | 128 X 64 Graphical LCD |
| TFT Screen | High Resolution Camera for viewing capillaries |
| Resolution | 0.1ºC |
| Temp. Sensor | Grade “A” PT-100, Platinum Sensor |
| Sample Capacity |
3+1 Samples (one 6mm provision) Test Tube, for the
determination of Boiling Point of Any Liquid. |
| Application Area | Miniature Furnace Module |
| Application | Suitable for Boiling & Melting Point |
| Temp. Control & Ramp Rate Heating |
Microprocessor controlled closed loop PID, Auto / Adjustable
Ramp Rate Heating 2ºC to 10ºC/minute by UP/ DOWN keys, can be increased or decreased during running / operation |
|
Melting View |
Front & Rear Glare-free illumination and Large Magnifier for Stain free Observation of melting operation, Melting / Boiling point reading is to be hold on by activating the “HOLD” key & reading is protected from power failure till “RESET” is not activated. |
| PC Interface | USB to PC |
| Power Supply | 230 V ± 10% AC, 50 Hz. |
| Dimension | 270X330X160 mm (LXBX) |
| Weight | 8.5 KG |
