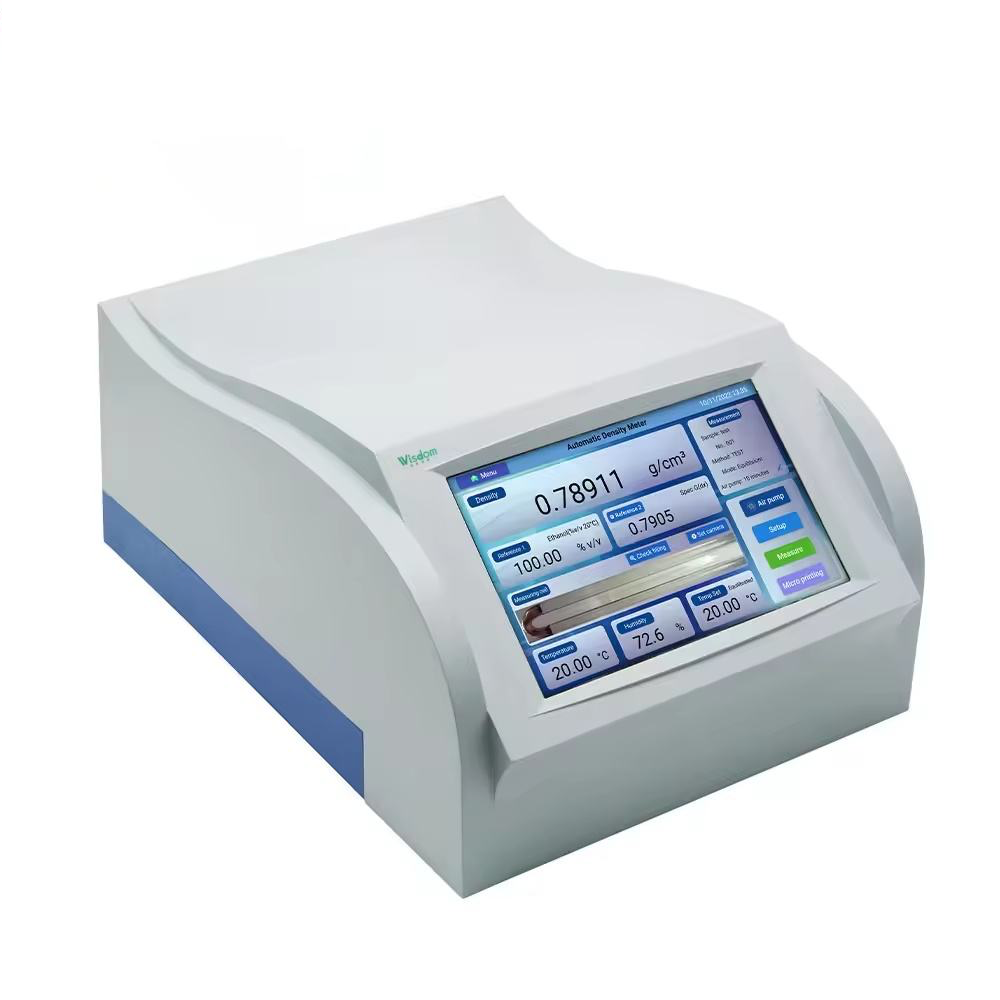

The ADM3 Automatic Density Meter is a high-precision laboratory instrument designed for rapid and accurate measurement of liquid density and specific gravity. Utilizing the advanced oscillating U-shaped tube principle, the ADM3 delivers reliable density measurements across a wide range of applications including pharmaceuticals, petrochemicals, chemicals, food & beverage, quality control laboratories, research institutes, and academic laboratories.

Equipped with a quartz glass U-shaped measuring tube, photoelectric detection technology, and precise temperature control, the ADM3 ensures exceptional measurement stability and repeatability. Its intelligent temperature regulation system combines platinum resistance sensors with semiconductor refrigeration technology to maintain optimal measurement conditions.

Salient Features

  • Automatic Density Meter function is to quickly measure the density of liquids

  • Quartz glass U-shaped tube with photoelectric detection

  • Temperature control using platinum resistors and semiconductor refrigeration

  • 10.1 inch touch screen display with Android operating system

  • 1080P high-definition camera for observing the sample injection process

  • Bubble detection to observe and identify bubbles or impurities in the sample

  • Measurement results can be saved as PDF reports and exported via USB

  • Batch data collection and storage

  • RS232 serial port and USB connectivity

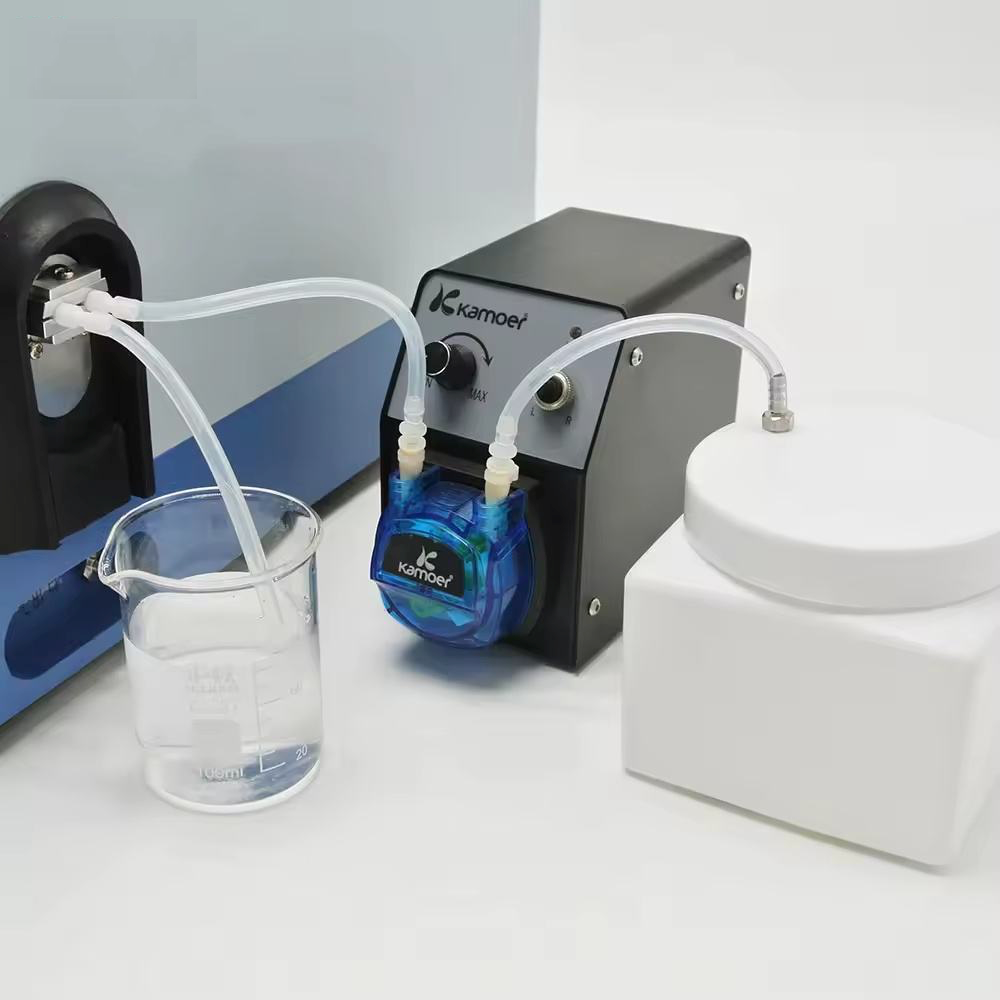

  • Air pump for drying and cleaning

  • Results printing through thermal printer.

Parameter Details
Model ADM3
Make LABMAN
Density Measuring Range 0.0000 to 3.0000 g/cm³
Density Resolution 0.0001 g/cm³
Density Accuracy ±0.0005 g/cm³
Density Repeatability ±0.0002 g/cm³
Temperature Resolution 0.01°C
Control Temperature Range 5°C – 50°C
Control Temperature Repeatability ±0.05°C
Control Temperature Accuracy ±0.1°C
Measurement Units Density, Specific Gravity
Display 10.1" Touch Screen
Camera 1080P HD Camera
Calibration Multi-point calibration
Data Storage 128 GB
Method Management 100 groups
Measurement Records 100000 groups
Communication Port RS232 Interface, USB
Network Interface NA
Power 120 W
Power Supply 220V, 50/60 Hz
Dimensions 730 × 480 × 420 mm
Net Weight 10 kg
Gross Weight 22 kg



Standard Accessories

  • Main Instrument

  • Silicon Gel Filter

  • Waste Water Bottle

  • Inlet & Outlet Tubes

  • Software Pen Drive

  • Dust Cover

  • Power Adapter

  • Instruction Manual

  • Test Certificate



Labman

Automatic Density Meter I 0.0001g/cm3 resolution I FREE ONSITE INSTALLATION

SKU ADM3
Rs.500,000.00
Rs.429,999.00

The ADM3 Automatic Density Meter is a high-precision laboratory instrument designed for rapid and accurate measurement of liquid density and specific gravity. Utilizing the advanced oscillating U-shaped tube principle, the ADM3 delivers reliable density measurements across a wide range of applications including pharmaceuticals, petrochemicals, chemicals, food & beverage, quality control laboratories, research institutes, and academic laboratories.

Equipped with a quartz glass U-shaped measuring tube, photoelectric detection technology, and precise temperature control, the ADM3 ensures exceptional measurement stability and repeatability. Its intelligent temperature regulation system combines platinum resistance sensors with semiconductor refrigeration technology to maintain optimal measurement conditions.

Salient Features

  • Automatic Density Meter function is to quickly measure the density of liquids

  • Quartz glass U-shaped tube with photoelectric detection

  • Temperature control using platinum resistors and semiconductor refrigeration

  • 10.1 inch touch screen display with Android operating system

  • 1080P high-definition camera for observing the sample injection process

  • Bubble detection to observe and identify bubbles or impurities in the sample

  • Measurement results can be saved as PDF reports and exported via USB

  • Batch data collection and storage

  • RS232 serial port and USB connectivity

  • Air pump for drying and cleaning

  • Results printing through thermal printer.

Parameter Details
Model ADM3
Make LABMAN
Density Measuring Range 0.0000 to 3.0000 g/cm³
Density Resolution 0.0001 g/cm³
Density Accuracy ±0.0005 g/cm³
Density Repeatability ±0.0002 g/cm³
Temperature Resolution 0.01°C
Control Temperature Range 5°C – 50°C
Control Temperature Repeatability ±0.05°C
Control Temperature Accuracy ±0.1°C
Measurement Units Density, Specific Gravity
Display 10.1" Touch Screen
Camera 1080P HD Camera
Calibration Multi-point calibration
Data Storage 128 GB
Method Management 100 groups
Measurement Records 100000 groups
Communication Port RS232 Interface, USB
Network Interface NA
Power 120 W
Power Supply 220V, 50/60 Hz
Dimensions 730 × 480 × 420 mm
Net Weight 10 kg
Gross Weight 22 kg



Standard Accessories

  • Main Instrument

  • Silicon Gel Filter

  • Waste Water Bottle

  • Inlet & Outlet Tubes

  • Software Pen Drive

  • Dust Cover

  • Power Adapter

  • Instruction Manual

  • Test Certificate


Rs.500,000.00
Rs.429,999.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
