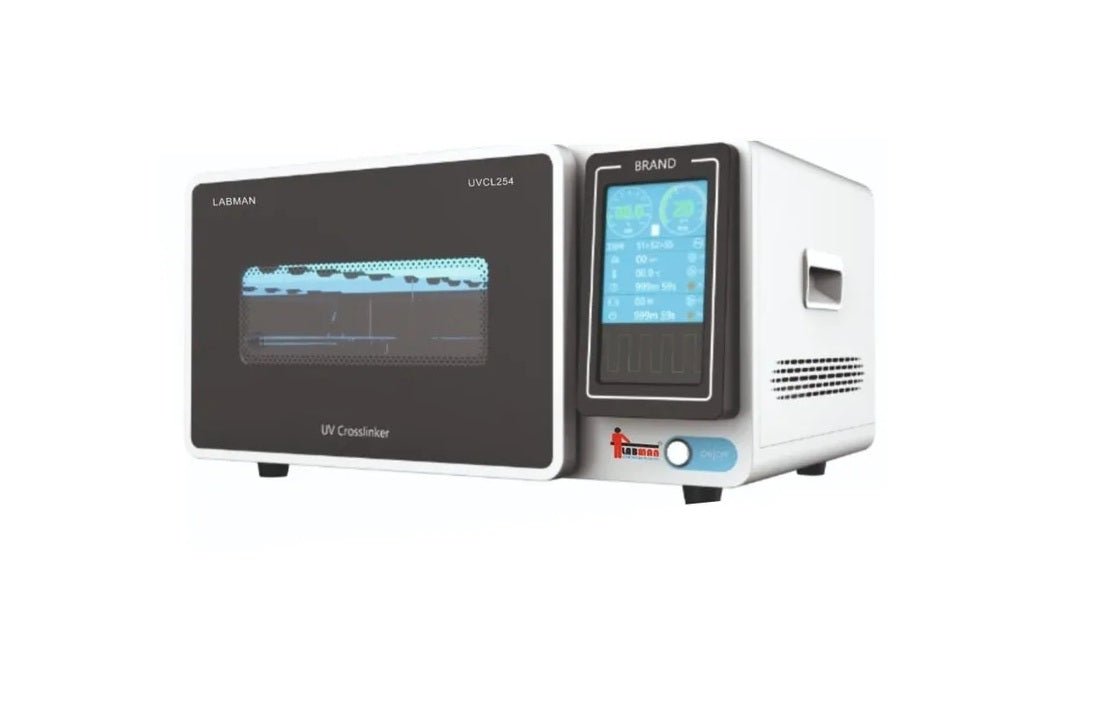

UV Crosslinker – UVCL254
The UV Cross-linking instrument is equipped with an ultraviolet energy program (Joules/cm²) control function.
Its time integrator continuously monitors the irradiation of ultraviolet light. When the energy absorption value reaches the set value, the ultraviolet irradiation of the instrument automatically stops.
This instrument is a multi-purpose 254 nm ultraviolet radiation system.
It is mainly used for:
-
Cross-linking and fixing nucleic acids on hybridization membranes
-
Fixing nucleic acids on membranes within 30–60 seconds
-
DNA cutting in agarose gels
-
RecA mutation screening
-
Partial restriction endonuclease digestion of pyrimidine dimers
-
UV sterilization to eliminate PCR contamination
-
Polymer UV treatment and other UV sterilization applications
UVCL254
Salient Features
-
Microprocessor-controlled touch screen display
-
Automatic stop when the door is opened
-
Easy-to-operate drawer design
-
Automatic storage of information
-
Maximum irradiation area 880 cm²
-
Selectable modes:
-
UV energy mode
-
Time mode
-
-
High safety design:
-
UV safety window
-
Safety door lock
-
-
Both-side hand grip for easy movement
-
Stainless steel chamber
UVCL254
Specifications
| Parameter | Specification |
|---|---|
| Model | UVCL254 |
| Make | LABMAN |
| UV Wavelength | 254 nm |
| UV Crosslinker Energy Measurement Range | 0–99.99 J/cm² |
| Maximum Crosslinker Area | 880 cm² |
| UV Radiation Energy | Maximum 5 mW/cm² |
| UV Source | 6 pcs × 8 W light tube |
| Energy & Time Storage | 50 groups can be set and saved |
| System | Ultraviolet irradiation system |
| Modes | 2 modes |
| Operation Modes | UV energy mode, Time mode |
| Display | 7-inch Touch Screen |
| Control | Microprocessor |
| UV Security Window Lock | Available |
| Chamber | Stainless Steel |
| Chamber Dimension | 350 × 290 × 140 mm |
| Packing Dimension (L×W×H) | 610 × 440 × 430 mm |
| Gross Weight | 21 kg |
| Optional Wavelength | 365 nm, 312 nm
UVCL254 |
Standard Accessories
-
Main Instrument
-
Power Cord
-
Instruction Manual
-
Test Certificate
UVCL254
LABMAN Product Range (Catalogue 2025-26)
Some instruments listed in the catalogue include:
Molecular & Life Science
-
Nucleic Acid Extractor
-
Gradient PCR Thermal Cycler
-
Hybridization Oven
-
UV Crosslinker
-
Microvolume Spectrophotometer
Chromatography & Analytical
-
High Performance Liquid Chromatography (HPLC)
-
Automatic Potential Titrator
-
Karl Fischer Titrator
-
COD Analyzer with Digestor
-
BOD Analyzer
Sample Preparation
-
Tissue Grinder Homogenizer
-
Paddle Blender Homogenizer
-
Multi Tube Vortex Mixer
-
Orbital Shaker
-
Tube Roller Mixer
Laboratory Equipment
-
Lyophilizer Freeze Dryer (-60°C / -80°C)
-
Rotary Evaporator
-
Microwave Digestion System
-
Automatic Density Meter
Spectroscopy & Optical Instruments
-
UV-Vis Spectrophotometer
-
Visible Spectrophotometer
-
Polarimeter
-
Refractometer
-
Digital Viscometer
Environmental & Water Testing
-
pH Meter
-
Conductivity / TDS Meter
-
Dissolved Oxygen Meter
-
Turbidity Meter
-
Water Hardness Meter
Other Laboratory Instruments
-
Probe Sonicator
-
Recirculating Water Chiller
-
Ice Maker / Ice Flaker
-
Ultrasonic Cleaner
-
Nitrogen Generator
-
Vacuum Pump
UV Crosslinker – UVCL254
The UV Cross-linking instrument is equipped with an ultraviolet energy program (Joules/cm²) control function.
Its time integrator continuously monitors the irradiation of ultraviolet light. When the energy absorption value reaches the set value, the ultraviolet irradiation of the instrument automatically stops.
This instrument is a multi-purpose 254 nm ultraviolet radiation system.
It is mainly used for:
-
Cross-linking and fixing nucleic acids on hybridization membranes
-
Fixing nucleic acids on membranes within 30–60 seconds
-
DNA cutting in agarose gels
-
RecA mutation screening
-
Partial restriction endonuclease digestion of pyrimidine dimers
-
UV sterilization to eliminate PCR contamination
-
Polymer UV treatment and other UV sterilization applications
UVCL254
Salient Features
-
Microprocessor-controlled touch screen display
-
Automatic stop when the door is opened
-
Easy-to-operate drawer design
-
Automatic storage of information
-
Maximum irradiation area 880 cm²
-
Selectable modes:
-
UV energy mode
-
Time mode
-
-
High safety design:
-
UV safety window
-
Safety door lock
-
-
Both-side hand grip for easy movement
-
Stainless steel chamber
UVCL254
Specifications
| Parameter | Specification |
|---|---|
| Model | UVCL254 |
| Make | LABMAN |
| UV Wavelength | 254 nm |
| UV Crosslinker Energy Measurement Range | 0–99.99 J/cm² |
| Maximum Crosslinker Area | 880 cm² |
| UV Radiation Energy | Maximum 5 mW/cm² |
| UV Source | 6 pcs × 8 W light tube |
| Energy & Time Storage | 50 groups can be set and saved |
| System | Ultraviolet irradiation system |
| Modes | 2 modes |
| Operation Modes | UV energy mode, Time mode |
| Display | 7-inch Touch Screen |
| Control | Microprocessor |
| UV Security Window Lock | Available |
| Chamber | Stainless Steel |
| Chamber Dimension | 350 × 290 × 140 mm |
| Packing Dimension (L×W×H) | 610 × 440 × 430 mm |
| Gross Weight | 21 kg |
| Optional Wavelength | 365 nm, 312 nm
UVCL254 |
Standard Accessories
-
Main Instrument
-
Power Cord
-
Instruction Manual
-
Test Certificate
UVCL254
LABMAN Product Range (Catalogue 2025-26)
Some instruments listed in the catalogue include:
Molecular & Life Science
-
Nucleic Acid Extractor
-
Gradient PCR Thermal Cycler
-
Hybridization Oven
-
UV Crosslinker
-
Microvolume Spectrophotometer
Chromatography & Analytical
-
High Performance Liquid Chromatography (HPLC)
-
Automatic Potential Titrator
-
Karl Fischer Titrator
-
COD Analyzer with Digestor
-
BOD Analyzer
Sample Preparation
-
Tissue Grinder Homogenizer
-
Paddle Blender Homogenizer
-
Multi Tube Vortex Mixer
-
Orbital Shaker
-
Tube Roller Mixer
Laboratory Equipment
-
Lyophilizer Freeze Dryer (-60°C / -80°C)
-
Rotary Evaporator
-
Microwave Digestion System
-
Automatic Density Meter
Spectroscopy & Optical Instruments
-
UV-Vis Spectrophotometer
-
Visible Spectrophotometer
-
Polarimeter
-
Refractometer
-
Digital Viscometer
Environmental & Water Testing
-
pH Meter
-
Conductivity / TDS Meter
-
Dissolved Oxygen Meter
-
Turbidity Meter
-
Water Hardness Meter
Other Laboratory Instruments
-
Probe Sonicator
-
Recirculating Water Chiller
-
Ice Maker / Ice Flaker
-
Ultrasonic Cleaner
-
Nitrogen Generator
-
Vacuum Pump
- Regular price
- Rs.220,000.00
- Sale price
- Rs.189,000.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
UV Crosslinker – UVCL254
The UV Cross-linking instrument is equipped with an ultraviolet energy program (Joules/cm²) control function.
Its time integrator continuously monitors the irradiation of ultraviolet light. When the energy absorption value reaches the set value, the ultraviolet irradiation of the instrument automatically stops.
This instrument is a multi-purpose 254 nm ultraviolet radiation system.
It is mainly used for:
-
Cross-linking and fixing nucleic acids on hybridization membranes
-
Fixing nucleic acids on membranes within 30–60 seconds
-
DNA cutting in agarose gels
-
RecA mutation screening
-
Partial restriction endonuclease digestion of pyrimidine dimers
-
UV sterilization to eliminate PCR contamination
-
Polymer UV treatment and other UV sterilization applications
UVCL254
Salient Features
-
Microprocessor-controlled touch screen display
-
Automatic stop when the door is opened
-
Easy-to-operate drawer design
-
Automatic storage of information
-
Maximum irradiation area 880 cm²
-
Selectable modes:
-
UV energy mode
-
Time mode
-
-
High safety design:
-
UV safety window
-
Safety door lock
-
-
Both-side hand grip for easy movement
-
Stainless steel chamber
UVCL254
Specifications
| Parameter | Specification |
|---|---|
| Model | UVCL254 |
| Make | LABMAN |
| UV Wavelength | 254 nm |
| UV Crosslinker Energy Measurement Range | 0–99.99 J/cm² |
| Maximum Crosslinker Area | 880 cm² |
| UV Radiation Energy | Maximum 5 mW/cm² |
| UV Source | 6 pcs × 8 W light tube |
| Energy & Time Storage | 50 groups can be set and saved |
| System | Ultraviolet irradiation system |
| Modes | 2 modes |
| Operation Modes | UV energy mode, Time mode |
| Display | 7-inch Touch Screen |
| Control | Microprocessor |
| UV Security Window Lock | Available |
| Chamber | Stainless Steel |
| Chamber Dimension | 350 × 290 × 140 mm |
| Packing Dimension (L×W×H) | 610 × 440 × 430 mm |
| Gross Weight | 21 kg |
| Optional Wavelength | 365 nm, 312 nm
UVCL254 |
Standard Accessories
-
Main Instrument
-
Power Cord
-
Instruction Manual
-
Test Certificate
