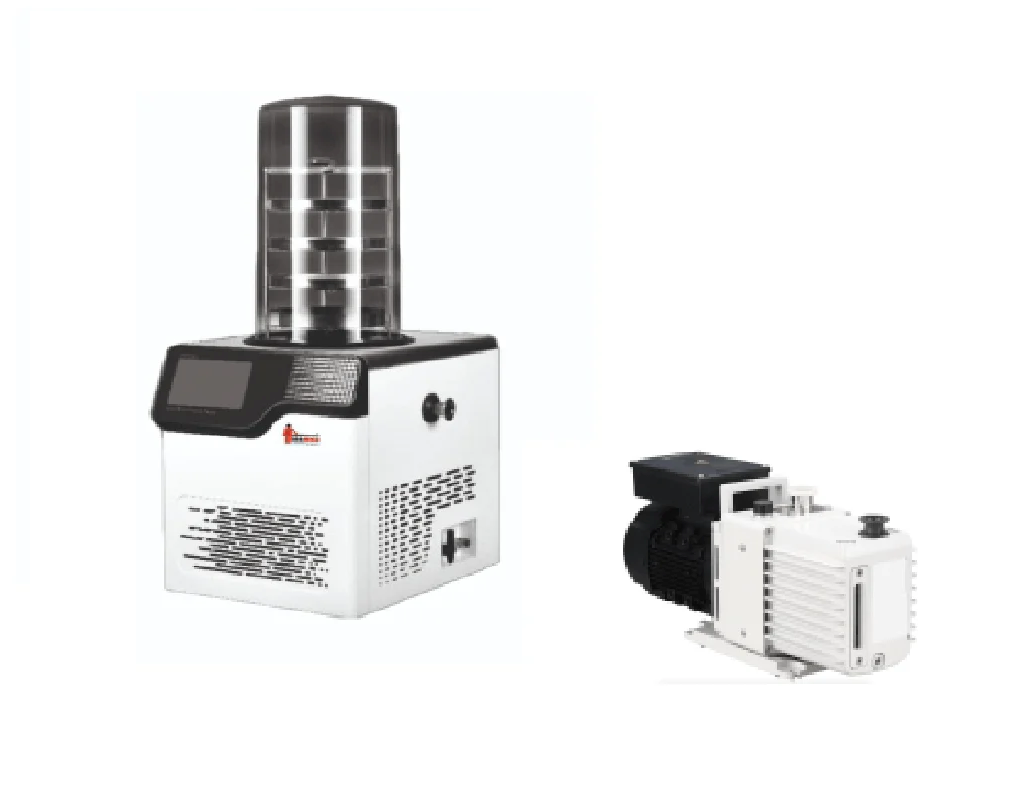

The LMFD61 Lyophilizer Freeze Dryer is a compact and efficient laboratory instrument designed for reliable freeze-drying (lyophilization) of heat-sensitive samples. It is widely used in pharmaceutical, biotechnology, food, and research laboratories.

This model offers a freeze-drying area of 0.12 m² with four trays (Ø200 mm) and 70 mm tray spacing, providing adequate capacity for routine laboratory applications. It has an ice capacity of 3 L/24 hours and operates at a vacuum pressure of 5 Pa, ensuring effective moisture removal.

The system is equipped with a condenser temperature of −60 °C, which efficiently traps water vapor, and a double-stage oil-lubricated rotary vane vacuum pump for stable vacuum performance. With robust construction, user-friendly operation, and dependable drying results, the LMFD61 Freeze Dryer is ideal for precise and consistent sample preservation.

SPECIFICATIONS :

Condenser Temperature -60 C

 Freeze Drying Area 0.12m

 Freeze Dryer with - Tray

Tray Size 200mm x 4

 Vacuum Pressure <5Pa

 Refrigeration system Single Cascade

 Display 7 “ Touch Screen Display

 Tray Spacing 70mm

Ice Condenser Capacity 3L/24h o o

Ambient Temperature 15 C ~ 25 C

Relative Humidity ≤ 70%

Defrost Heating Coil

Vacuum Pump Standard Supply

Vacuum Pump Type Double Stage Oil-Lubricated Rotary Vane

Vacuum Pump Rotary Speed 1400 RPM

Vacuum Pump Oil Capacity 0.8ltr.

Vacuum Pump Noise Level 54dB

Vacuum Pump Weight 25kg

Power 950W Power

Supply 220-240V / 50Hz

Instrument Dimension (LxWxH) 393 x 500 x 450 mm (Without Chamber)
