APPLICATIONS OF WATER BATH CHILLER
  • Double Walled Serological water bath is a versatile equipment to handle any clinical procedure, Incubation, Inactivation, Agglutination & Biomedical procedures.
  • Double Walled Serological Water Bath is low cost options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical, Milk or Industrial Applications.
SALIENT FEATURES & CONSTRUCTION OF WATER BATH CHILLER
  • Double walled construction.
  • Inner Tank and lid made of Stainless Steel (SS-304 grade).
  • Outer chamber is made of Mild Steel duly powder coated.
  • Flat Stainless Steel Lid prevents Evaporation.
  • Heating by immersion heaters.
  • Temperature Ambient range up to 90oC.
  • Controls temperature within an accuracy of ±1oC.
  • Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
  • Fitted with drain plug for easy cleaning.
  • To work on 220/230V AC supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF WATER BATH CHILLER

Model No. WBS-1 WBS-2 WBS-3 WBS-4
Internal Dimensions (LX W X D) 300 x 250 x175 mm 325 x 300 x175mm 450 x 300 x 175 mm 600 x 300 x 175 mm
No of Racks 2 4 6 8
Approx. Capacity 13 Ltr. 17 Ltr. 23 Ltr. 31 Ltr.
Heating Load 1.0 KW 1.5 KW 2.0 KW 2.0 KW
Top Lid Stainless Steel
Temperature Controlled with hydraulic type Capillary Thermostat
Temperature Range From ambient to 90°C
Temperature Accuracy ± 1°C.
Temperature Display L-shaped prismatic thermometer. (not supplied with the unit)
Heater Protection By Stainless Steel Perforated cover

Tanco

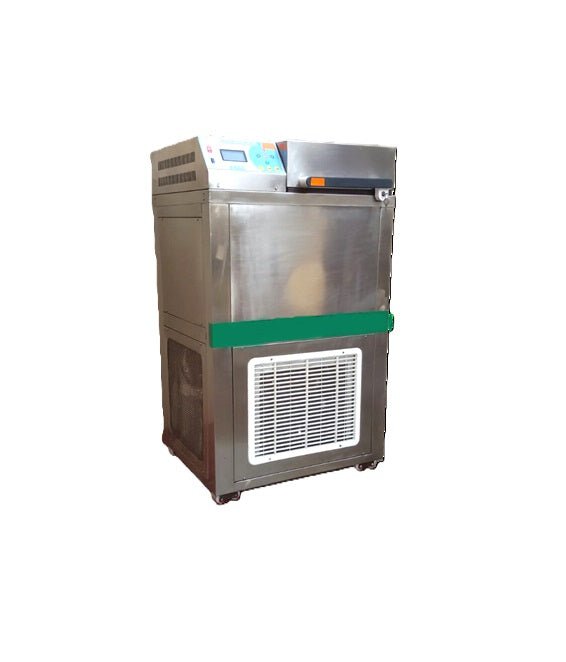

Refrigerated Circulating Bath (Chiller)

SKU PLT-115 A-1
Rs.0.00
APPLICATIONS OF WATER BATH CHILLER
  • Double Walled Serological water bath is a versatile equipment to handle any clinical procedure, Incubation, Inactivation, Agglutination & Biomedical procedures.
  • Double Walled Serological Water Bath is low cost options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical, Milk or Industrial Applications.
SALIENT FEATURES & CONSTRUCTION OF WATER BATH CHILLER
  • Double walled construction.
  • Inner Tank and lid made of Stainless Steel (SS-304 grade).
  • Outer chamber is made of Mild Steel duly powder coated.
  • Flat Stainless Steel Lid prevents Evaporation.
  • Heating by immersion heaters.
  • Temperature Ambient range up to 90oC.
  • Controls temperature within an accuracy of ±1oC.
  • Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
  • Fitted with drain plug for easy cleaning.
  • To work on 220/230V AC supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF WATER BATH CHILLER

Model No. WBS-1 WBS-2 WBS-3 WBS-4
Internal Dimensions (LX W X D) 300 x 250 x175 mm 325 x 300 x175mm 450 x 300 x 175 mm 600 x 300 x 175 mm
No of Racks 2 4 6 8
Approx. Capacity 13 Ltr. 17 Ltr. 23 Ltr. 31 Ltr.
Heating Load 1.0 KW 1.5 KW 2.0 KW 2.0 KW
Top Lid Stainless Steel
Temperature Controlled with hydraulic type Capillary Thermostat
Temperature Range From ambient to 90°C
Temperature Accuracy ± 1°C.
Temperature Display L-shaped prismatic thermometer. (not supplied with the unit)
Heater Protection By Stainless Steel Perforated cover
Rs.0.00
Capacity:
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

APPLICATIONS OF WATER BATH CHILLER
  • Double Walled Serological water bath is a versatile equipment to handle any clinical procedure, Incubation, Inactivation, Agglutination & Biomedical procedures.
  • Double Walled Serological Water Bath is low cost options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical, Milk or Industrial Applications.
SALIENT FEATURES & CONSTRUCTION OF WATER BATH CHILLER
  • Double walled construction.
  • Inner Tank and lid made of Stainless Steel (SS-304 grade).
  • Outer chamber is made of Mild Steel duly powder coated.
  • Flat Stainless Steel Lid prevents Evaporation.
  • Heating by immersion heaters.
  • Temperature Ambient range up to 90oC.
  • Controls temperature within an accuracy of ±1oC.
  • Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
  • Fitted with drain plug for easy cleaning.
  • To work on 220/230V AC supply.

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF WATER BATH CHILLER

Model No. WBS-1 WBS-2 WBS-3 WBS-4
Internal Dimensions (LX W X D) 300 x 250 x175 mm 325 x 300 x175mm 450 x 300 x 175 mm 600 x 300 x 175 mm
No of Racks 2 4 6 8
Approx. Capacity 13 Ltr. 17 Ltr. 23 Ltr. 31 Ltr.
Heating Load 1.0 KW 1.5 KW 2.0 KW 2.0 KW
Top Lid Stainless Steel
Temperature Controlled with hydraulic type Capillary Thermostat
Temperature Range From ambient to 90°C
Temperature Accuracy ± 1°C.
Temperature Display L-shaped prismatic thermometer. (not supplied with the unit)
Heater Protection By Stainless Steel Perforated cover
