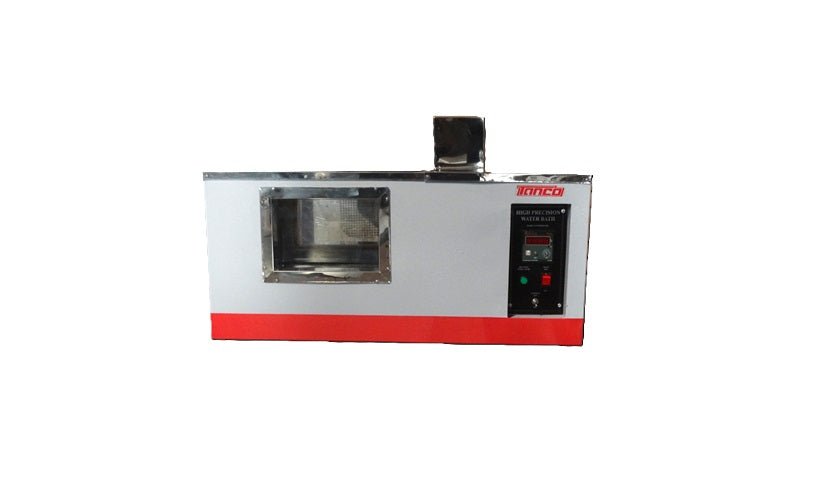

files/Untitled_50f52e4a-a443-4a8b-9ecc-3937d180a057.jpg
APPLICATIONS of High Precision Water Bath
- High precision water bath is a versatile equipment to handle highest level of performance, flexibility and control for most demanding applications.
- High precision water bath is best options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical or Industrial Applications.
SALIENT FEATURES & CONSTRUCTION of High Precision Water Bath
- Double walled construction.
- Inner Tank and lid made of Stainless Steel (SS-304 grade).
- Outer chamber is made of Mild Steel duly powder coated.
- Flat Stainless Steel Lid prevents Evaporation.
- Heating by immersion heaters.
- Fitted with glass window one side to see samples placed in bath.
- Temperature range up to 95oC.
- Controls temperature within an accuracy of ±0.1oC.
- Microprocessor Based PID Digital Temperature Indicator-cum-Controller maintains maximum temperature accuracy.
- Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
- Fitted with drain plug for easy cleaning.
- The unit is supplied with stirring arrangement.
- The stirring arrangement consists of a FHP motor with SS stirring shaft for continuous stirring and thus maintaining a uniform temperature throughout.
- Speed regulator is provided on the front panel to control the stirrer
- To work on 220/230 Volt AC supply.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION of High Precision Water Bath
| Model No. | WBP 1 | WBP2 |
| Interna Dimeisions (LxWxD) | 430x 240x 265mm | 280x 360 x380mm |
| Approx. Capacity | 26 Ltr. | 29 Ltr. |
| Top Lid | Stainless Steel | |
| Heating Load | 1.5 KW (1.0 KW+0.5 KW) | |
| Temperate Range | ambient +5°C to 95>C | |
| Temperature Control | By Mcroprocessor based PID dgtal temperature indicator-cumcontroller | |
| Temperature Accuracy | ± 0.1°C | |
| Temperature Sensor | RTD (Pt-100) | |
| Temperate Display | LED display for set value (SV) & process value (PV) | |
| Stirrirg Arrangement | By F.H.P. stirrer fitted with stainless steel shaft & Blades | |
| Stirring Speed | Can be regulated by speed regulator. | |
| Diffuser Shelf | Heater protective perforated cover made of stainless seel | |
APPLICATIONS of High Precision Water Bath
- High precision water bath is a versatile equipment to handle highest level of performance, flexibility and control for most demanding applications.
- High precision water bath is best options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical or Industrial Applications.
SALIENT FEATURES & CONSTRUCTION of High Precision Water Bath
- Double walled construction.
- Inner Tank and lid made of Stainless Steel (SS-304 grade).
- Outer chamber is made of Mild Steel duly powder coated.
- Flat Stainless Steel Lid prevents Evaporation.
- Heating by immersion heaters.
- Fitted with glass window one side to see samples placed in bath.
- Temperature range up to 95oC.
- Controls temperature within an accuracy of ±0.1oC.
- Microprocessor Based PID Digital Temperature Indicator-cum-Controller maintains maximum temperature accuracy.
- Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
- Fitted with drain plug for easy cleaning.
- The unit is supplied with stirring arrangement.
- The stirring arrangement consists of a FHP motor with SS stirring shaft for continuous stirring and thus maintaining a uniform temperature throughout.
- Speed regulator is provided on the front panel to control the stirrer
- To work on 220/230 Volt AC supply.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION of High Precision Water Bath
| Model No. | WBP 1 | WBP2 |
| Interna Dimeisions (LxWxD) | 430x 240x 265mm | 280x 360 x380mm |
| Approx. Capacity | 26 Ltr. | 29 Ltr. |
| Top Lid | Stainless Steel | |
| Heating Load | 1.5 KW (1.0 KW+0.5 KW) | |
| Temperate Range | ambient +5°C to 95>C | |
| Temperature Control | By Mcroprocessor based PID dgtal temperature indicator-cumcontroller | |
| Temperature Accuracy | ± 0.1°C | |
| Temperature Sensor | RTD (Pt-100) | |
| Temperate Display | LED display for set value (SV) & process value (PV) | |
| Stirrirg Arrangement | By F.H.P. stirrer fitted with stainless steel shaft & Blades | |
| Stirring Speed | Can be regulated by speed regulator. | |
| Diffuser Shelf | Heater protective perforated cover made of stainless seel | |
- Regular price
- Rs.0.00
- Delivery Period :5-7 Working Days
- Replacement :3 Days Replacement as standard, Free of Cost
- Dedicated Support :Support from 9:30 AM to 6:00 PM everyday
Product Description
APPLICATIONS of High Precision Water Bath
- High precision water bath is a versatile equipment to handle highest level of performance, flexibility and control for most demanding applications.
- High precision water bath is best options for Biotechnology, Clinical, Environmental, Medical, Petroleum, Pharmaceutical or Industrial Applications.
SALIENT FEATURES & CONSTRUCTION of High Precision Water Bath
- Double walled construction.
- Inner Tank and lid made of Stainless Steel (SS-304 grade).
- Outer chamber is made of Mild Steel duly powder coated.
- Flat Stainless Steel Lid prevents Evaporation.
- Heating by immersion heaters.
- Fitted with glass window one side to see samples placed in bath.
- Temperature range up to 95oC.
- Controls temperature within an accuracy of ±0.1oC.
- Microprocessor Based PID Digital Temperature Indicator-cum-Controller maintains maximum temperature accuracy.
- Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
- Fitted with drain plug for easy cleaning.
- The unit is supplied with stirring arrangement.
- The stirring arrangement consists of a FHP motor with SS stirring shaft for continuous stirring and thus maintaining a uniform temperature throughout.
- Speed regulator is provided on the front panel to control the stirrer
- To work on 220/230 Volt AC supply.
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION of High Precision Water Bath
| Model No. | WBP 1 | WBP2 |
| Interna Dimeisions (LxWxD) | 430x 240x 265mm | 280x 360 x380mm |
| Approx. Capacity | 26 Ltr. | 29 Ltr. |
| Top Lid | Stainless Steel | |
| Heating Load | 1.5 KW (1.0 KW+0.5 KW) | |
| Temperate Range | ambient +5°C to 95>C | |
| Temperature Control | By Mcroprocessor based PID dgtal temperature indicator-cumcontroller | |
| Temperature Accuracy | ± 0.1°C | |
| Temperature Sensor | RTD (Pt-100) | |
| Temperate Display | LED display for set value (SV) & process value (PV) | |
| Stirrirg Arrangement | By F.H.P. stirrer fitted with stainless steel shaft & Blades | |
| Stirring Speed | Can be regulated by speed regulator. | |
| Diffuser Shelf | Heater protective perforated cover made of stainless seel | |
