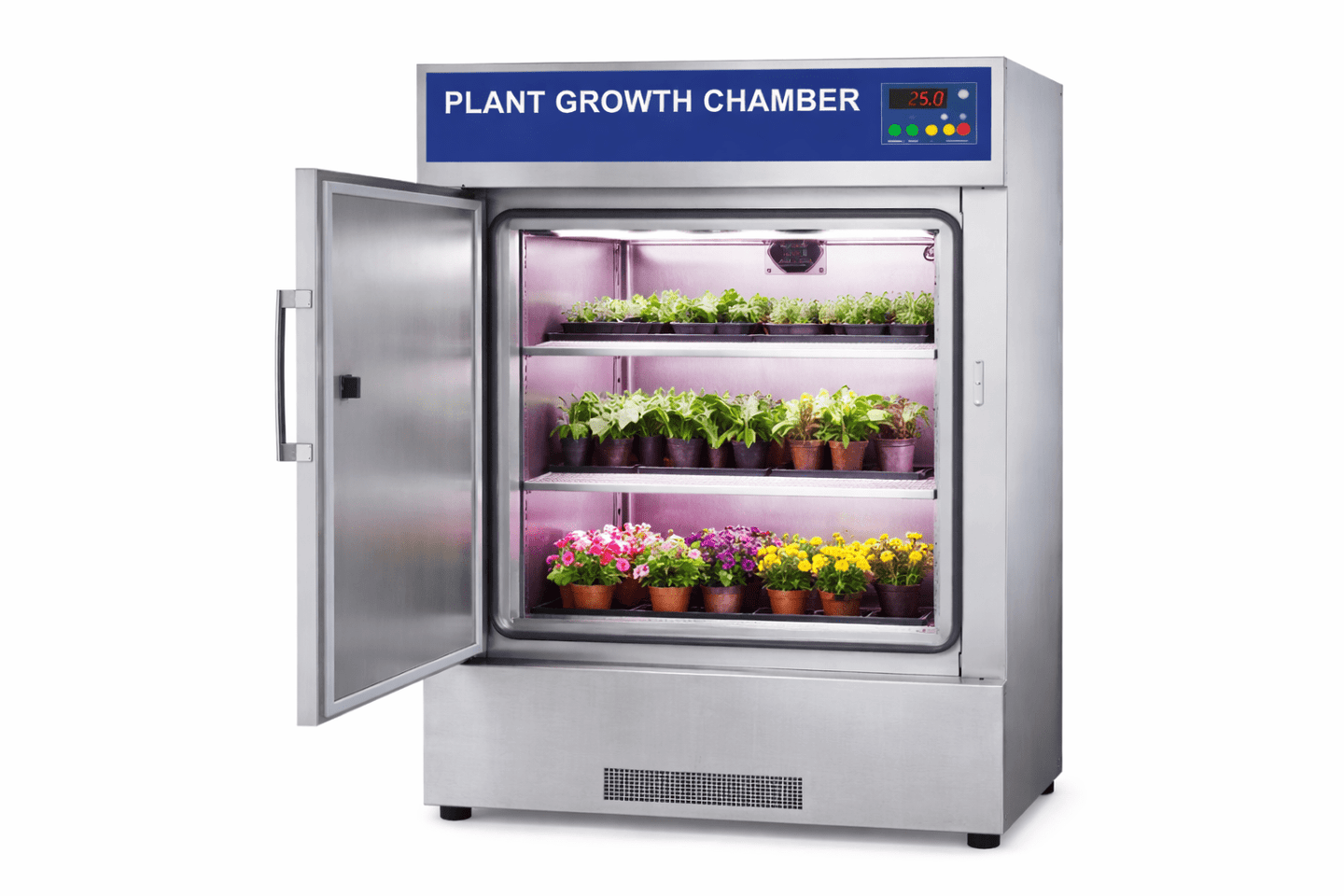

Plant Growth Chamber is a closed cabinet having provision of three-side illumination, humidity, and temperature control. It is widely used in plant biology, soil science, and agricultural research, including growth studies of rice, Arabidopsis, etc.

The purpose of a plant growth chamber or tissue culture growth chamber is to create an artificial environment by combining controlled temperature, humidity, and light at various ranges.

We are ISO and CE certified Plant Growth Chamber manufacturers in India. Chambers are manufactured as per customer-matched specifications in our in-house manufacturing facility, ensuring compliance with required quality standards.

Plant growth chambers are designed to deliver high accuracy and reliability in controlling temperature, humidity, and light. Apart from standard models, large chambers and walk-in rooms (as per plant height) are also available on request.

Detailed Description

Construction

• Inner chamber made of thick-gauge Stainless Steel 304

• Exterior made of powder-coated GI sheet for corrosion resistance

• 70 mm high-density PUF insulation between inner and outer walls

• Arc-welded fabrication for strength and durability

• Available from 150 L to 1000 L and walk-in chambers

• Caster wheels with brakes for easy mobility

Doors

• Two-door system:

  • Inner toughened glass door for observation without disturbing conditions

  • Outer PUF insulated solid door with latch handle

Temperature & Humidity

• Temperature Range: 5°C to 60°C

• Humidity Range: 50% to 90% RH

• Controlled by imported PID controllers

• Sensors: PT-100 temperature sensor & capacitive humidity sensor

• Heating: Tubular air heaters

• Humidity: SS water tank with immersion heater & automatic water filling

Illumination

• High-quality plant growth lights on three sides

• Controlled through 24×7 cyclic digital timer

• User-replaceable lighting system

Optional Advanced Features

• PLC-based HMI controller with color touch screen

• Data monitoring & storage

• USB interface for data transfer

• 30 mm port hole for validation and external wiring

Features & Advantages

• High accuracy of temperature, humidity & light

• Designed as per plant height

• Digital control panel

• Digital light timer

• Height-adjustable shelves

• Durable construction

Technical Specifications

Environmental Control

• Temperature Range:

  • Lights OFF: 5°C to 60°C

  • Lights ON: 10°C to 60°C

• Temperature Accuracy: ±1%

• Humidity Range: 50% to 90% RH

• Humidity Accuracy: ±3%

Control & Display

• Digital PID controller with SV & PV display

• Digital PID humidity controller

Lighting

• 3-side LED illumination

• Light intensity: 10,000 LUX or 23,000 LUX

• 24×7 weekly digital timer

Mechanical & Electrical

• Forced air circulation via axial fans

• Double-walled construction

• Interior: SS 304 with silicone gasket

• Exterior: Powder-coated steel

• Insulated outer door with lock & key

• Toughened glass inner door

• 3-inch PUF insulation

• Adjustable SS / chrome-plated shelves

Utilities

• Heating: Tubular air heaters

• Compressor: Emerson Copeland (CFC-free)

• Humidity system: SS boiler tank with immersion heater & automatic replenishment

Safety

• Audio / visual alarm for temperature deviation

Optional Accessories

• SS 304 / SS 316 exterior

• White-painted steel inner walls

• Door-open alarm

• Plant growth racks

• UV lamp

• PLC with HMI

• Data logger with USB

• Password-protected controller

• Caster wheels

Power Supply

• 220 Volts / 50 Hz
