The Labmart LMCO1 Column Oven is a compact temperature-controlled enclosure designed for laboratory analytical columns. It provides a temperature range of RT + 5°C to 80°C with 0.1°C constant-temperature accuracy and a 340 mm column length capacity.

The LMCO1 features a large white LCD display, real-time temperature indication, PID self-tuning, temperature setting and control, and a chamber equipped with a three-slot double-column base. It is designed to provide stable and reliable temperature control for analytical and protective columns.

3. Detailed Product Description

Product Overview

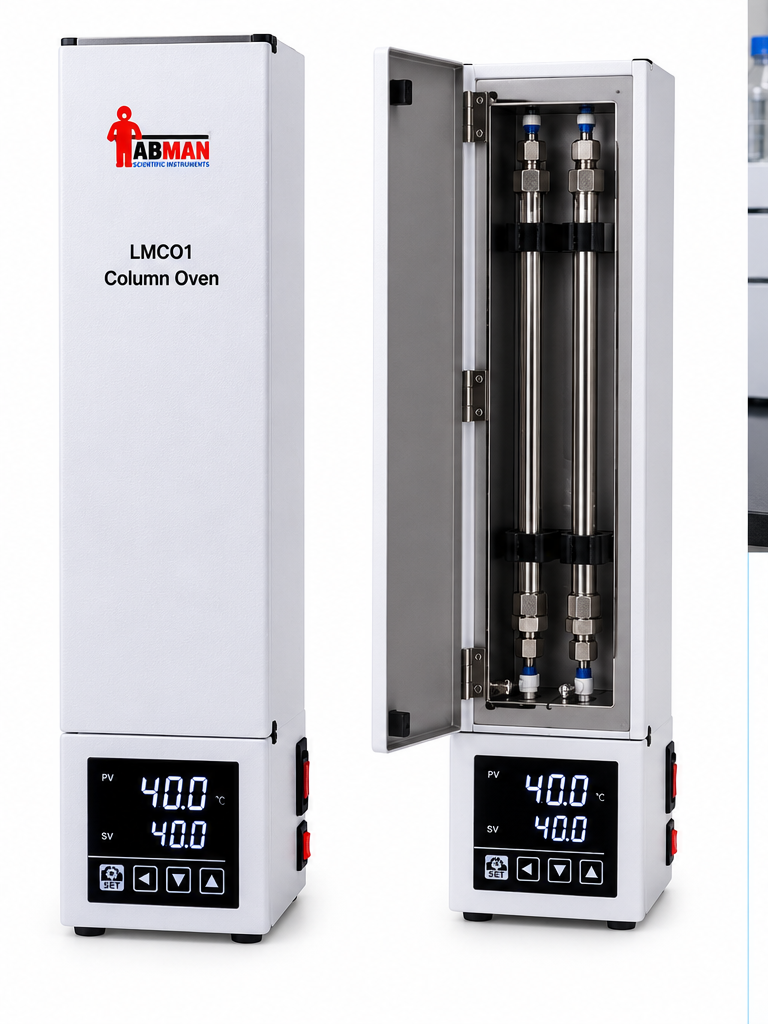

The Labmart LMCO1 Column Oven is designed for temperature-controlled operation of laboratory analytical columns. The chamber accommodates an analytical column and protective column within a specified 340 mm column length.

The LMCO1 provides a temperature range of RT + 5°C to 80°C and a specified constant-temperature accuracy of 0.1°C. The catalogue identifies a factory-set temperature of 40°C and a three-slot double-column base within the chamber.

The unit incorporates PID self-tuning and real-time temperature indication, allowing users to set and monitor the operating temperature through the integrated control/display system. LMCO1

4. Key Features & Benefits

• Temperature-Controlled Column Environment: Provides controlled heating for analytical columns.
• RT + 5°C to 80°C Temperature Range: Suitable for a range of temperature-controlled column applications.
• 0.1°C Constant-Temperature Accuracy: Provides precise temperature regulation according to the specified specification.
• 340 mm Column Length: Accommodates columns up to the specified length.
• Three-Slot Double-Column Base: Chamber is equipped with a three-slot double-column base.
• Large White LCD Display: Provides clear viewing of operating information.
• Real-Time Temperature Indication: Displays the current temperature during operation.
• PID Self-Tuning: Provides automated PID-based temperature control.
• Temperature Setting & Control: Allows the operating temperature to be set and controlled.
• Factory-Set 40°C: The catalogue identifies 40°C as the factory-set temperature.
• Integral Thickened Alloy Construction: Designed for stability and reliability.
• Compact Column Oven Design: Narrow-format enclosure suitable for laboratory installation.

5. Technical Specifications

The complete specification table is provided on page 2 of the supplied catalogue. LMCO1

6. Chamber & Column Capacity

The LMCO1 chamber is specified as:

80 × 38 × 400 mm

and the specified column length is:

340 mm

The catalogue also states that the chamber is equipped with a three-slot double-column base and that the analytical column and protective column are accommodated within 340 mm. LMCO1

7. Temperature Control

The LMCO1 provides:

• Temperature range: RT + 5°C to 80°C
• Constant-temperature accuracy: 0.1°C
• Factory-set temperature: 40°C
• PID self-tuning
• Real-time temperature indication
• Temperature setting and control

The control interface shown on page 2 includes functions for real-time temperature, setting temperature, set/confirm, shift, down and up operations. LMCO1

8. Applications

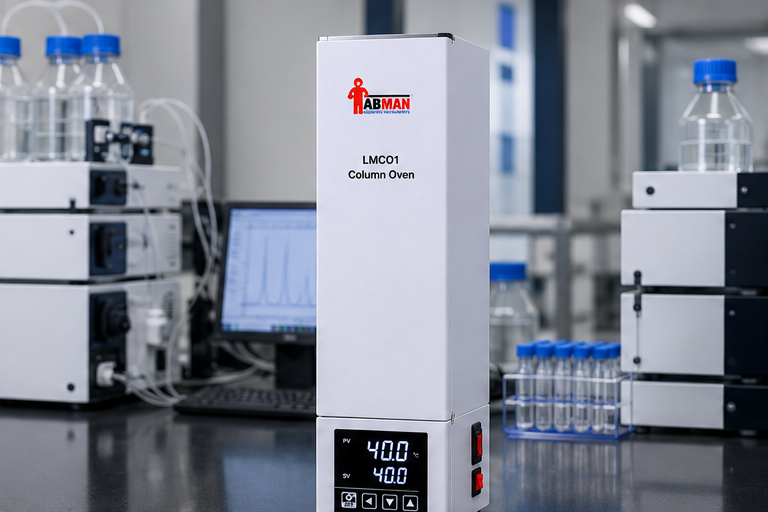

The LMCO1 is designed for temperature-controlled laboratory column applications, particularly where maintaining a stable column temperature is required.

Suitable application areas include:

• Analytical column temperature control
• Protective column temperature control
• Laboratory chromatography workflows
• Temperature-controlled analytical separation
• Research laboratory column applications
• Analytical laboratory workflows

The supplied catalogue does not specify particular chromatography methods, column chemistries or instrument models, so these should not be claimed as specific compatibility features.

9. Suitable For

• Analytical laboratories
• Research laboratories
• Pharmaceutical laboratories
• Chemical laboratories
• Quality-control laboratories
• Chromatography laboratories
• Academic and institutional laboratories

10. FAQs

1. What is the Labmart LMCO1?

The LMCO1 is a temperature-controlled Column Oven designed for laboratory analytical and protective columns.

2. What is the temperature range?

The temperature range is RT + 5°C to 80°C.

3. What is the temperature accuracy?

The specified constant-temperature accuracy is 0.1°C.

4. What is the factory-set temperature?

The catalogue specifies a factory-set temperature of 40°C.

5. What column length can it accommodate?

The specified column length is 340 mm.

6. What is the chamber size?

The constant-temperature chamber size is 80 × 38 × 400 mm (L × W × H).

7. Does the LMCO1 use PID control?

Yes. It features a PID self-tuning function.

8. Does it show real-time temperature?

Yes. The LMCO1 provides real-time temperature indication.

9. Does it have an LCD display?

Yes. The catalogue specifies a large white LCD display.

10. What column arrangement is supported?

The chamber is equipped with a three-slot double-column base.

11. What is the power rating?

The specified power is 120 W.

12. What power supply is required?

The LMCO1 operates on AC 220 V / 50 Hz.

13. What is the gross weight?

The specified gross weight is 3 kg.

14. What are the packing dimensions?

550 × 210 × 215 mm (L × W × H).

15. What is the HSN code?

84178090.
