APPLICATIONS OF PLATELET INCUBATOR

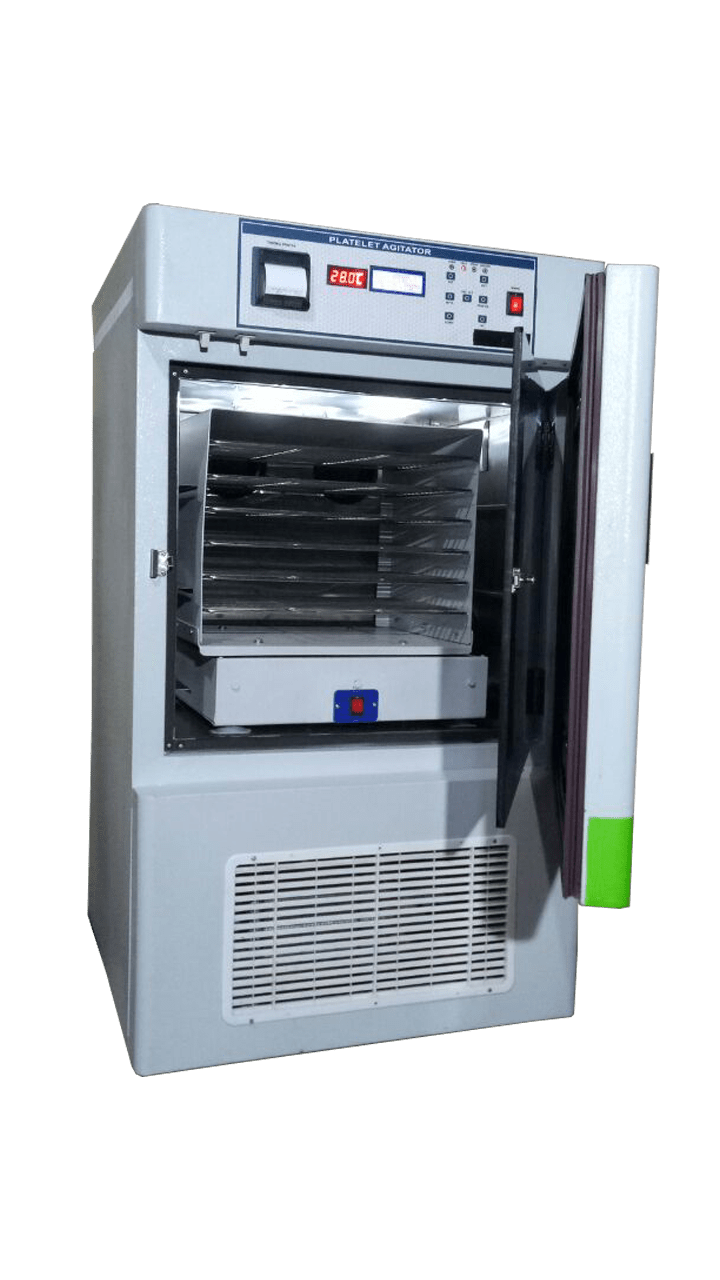

  • "TANCO" Platelet Incubator fitted with microprocessor controller is designed to store platelet concentrates in continuous motion before centrifuge in controlled environment.
SALIENT FEATURES & CONSTRUCTION OF PLATELET INCUBATOR
  • Robust construction Outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
  • Fitted with Durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
  • Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
  • Door operated illumination lamp is fitted inside the chamber for easy visibility.
  • A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
  • High grade insulation between outer and inner chamber for minimal thermal losses.
  • Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
  • Preset temperature 22°C (FDA recommended).
  • Temperature is controlled by Electronic Digital Temperature Indicator Cum Controller fitted With Audio Visual Alarm incorporated with battery back which triggers in the event of fluctuation exceeding permitted tolerance. Unit is also fitted with Door Operated Alarm and Power Supply Failure Alarm, as a safety device.
  • Specially designed to accommodate Platelet Agitator.
  • Caster wheel mounted for easy portability.
  • Supplied with cord and plug.
  • Operating Voltage: 220 Volts AC (50 Hz).
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF PLATELET INCUBATOR

Model No. PLT 142G
Approx Volume (Ltr) 150 ltr
Approximate Size (in Cuft.) 5.5
Chamber Inner Chamber Made of Stainless Steel
Temperature Preset at 22°C
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller with alarm facility Fitted with specially designed deviation alarm from the preset temperature, door open alarm and power failure alarm.
Temperature Recorder Seven days circular Temperature chart recorder.
Specially designed To accommodate Platelet Agitator
Temperature Alarm Audio Visual Alarm
Display LED Display
Relay Solid state electronic relay with protective heat sink.
Battery Backup Facility is provided
Illumination By Fluorescent Lamp
Air Circulation By forced convection system
Insulation By High density insulation
Operations Nearly silent operation with ultra-low vibration
High Voltage Protection Through automatic voltage stabilizer (Optional)
Electric Supply 220/230V AC, 50/60Hz

Tanco

Platelet Incubator

SKU PLT-142 G
Rs.0.00
APPLICATIONS OF PLATELET INCUBATOR
  • "TANCO" Platelet Incubator fitted with microprocessor controller is designed to store platelet concentrates in continuous motion before centrifuge in controlled environment.
SALIENT FEATURES & CONSTRUCTION OF PLATELET INCUBATOR
  • Robust construction Outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
  • Fitted with Durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
  • Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
  • Door operated illumination lamp is fitted inside the chamber for easy visibility.
  • A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
  • High grade insulation between outer and inner chamber for minimal thermal losses.
  • Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
  • Preset temperature 22°C (FDA recommended).
  • Temperature is controlled by Electronic Digital Temperature Indicator Cum Controller fitted With Audio Visual Alarm incorporated with battery back which triggers in the event of fluctuation exceeding permitted tolerance. Unit is also fitted with Door Operated Alarm and Power Supply Failure Alarm, as a safety device.
  • Specially designed to accommodate Platelet Agitator.
  • Caster wheel mounted for easy portability.
  • Supplied with cord and plug.
  • Operating Voltage: 220 Volts AC (50 Hz).
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF PLATELET INCUBATOR

Model No. PLT 142G
Approx Volume (Ltr) 150 ltr
Approximate Size (in Cuft.) 5.5
Chamber Inner Chamber Made of Stainless Steel
Temperature Preset at 22°C
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller with alarm facility Fitted with specially designed deviation alarm from the preset temperature, door open alarm and power failure alarm.
Temperature Recorder Seven days circular Temperature chart recorder.
Specially designed To accommodate Platelet Agitator
Temperature Alarm Audio Visual Alarm
Display LED Display
Relay Solid state electronic relay with protective heat sink.
Battery Backup Facility is provided
Illumination By Fluorescent Lamp
Air Circulation By forced convection system
Insulation By High density insulation
Operations Nearly silent operation with ultra-low vibration
High Voltage Protection Through automatic voltage stabilizer (Optional)
Electric Supply 220/230V AC, 50/60Hz
Rs.0.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

APPLICATIONS OF PLATELET INCUBATOR
  • "TANCO" Platelet Incubator fitted with microprocessor controller is designed to store platelet concentrates in continuous motion before centrifuge in controlled environment.
SALIENT FEATURES & CONSTRUCTION OF PLATELET INCUBATOR
  • Robust construction Outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
  • Fitted with Durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
  • Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
  • Door operated illumination lamp is fitted inside the chamber for easy visibility.
  • A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
  • High grade insulation between outer and inner chamber for minimal thermal losses.
  • Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
  • Preset temperature 22°C (FDA recommended).
  • Temperature is controlled by Electronic Digital Temperature Indicator Cum Controller fitted With Audio Visual Alarm incorporated with battery back which triggers in the event of fluctuation exceeding permitted tolerance. Unit is also fitted with Door Operated Alarm and Power Supply Failure Alarm, as a safety device.
  • Specially designed to accommodate Platelet Agitator.
  • Caster wheel mounted for easy portability.
  • Supplied with cord and plug.
  • Operating Voltage: 220 Volts AC (50 Hz).
TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF PLATELET INCUBATOR

Model No. PLT 142G
Approx Volume (Ltr) 150 ltr
Approximate Size (in Cuft.) 5.5
Chamber Inner Chamber Made of Stainless Steel
Temperature Preset at 22°C
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller with alarm facility Fitted with specially designed deviation alarm from the preset temperature, door open alarm and power failure alarm.
Temperature Recorder Seven days circular Temperature chart recorder.
Specially designed To accommodate Platelet Agitator
Temperature Alarm Audio Visual Alarm
Display LED Display
Relay Solid state electronic relay with protective heat sink.
Battery Backup Facility is provided
Illumination By Fluorescent Lamp
Air Circulation By forced convection system
Insulation By High density insulation
Operations Nearly silent operation with ultra-low vibration
High Voltage Protection Through automatic voltage stabilizer (Optional)
Electric Supply 220/230V AC, 50/60Hz
