APPLICATIONS OF ORBITAL SHAKING INCUBATOR cum BOD Incubator
  • "TANCO" brings the ultra-high-tech Triple walled Microprocessor controlled, solid-state Orbital Shaking Incubator down to earth..
  • Specially designed for Orbital Shaking under controlled Incubations / Temperature required for Tissue Cultures Fermentation Studies, & Ageing Tests., Life science applications & growth studies.
SALIENT FEATURES & CONSTRUCTION OF ORBITAL SHAKING INCUBATOR cum BOD Incubator
  • Robust construction outer chamber is made of Mild Steel duly pre treated & finished with powder coated paint for lasting finish.
  • Inner chamber made of STAINLESS STEEL SHEET (304 Grade).
  • Fitted with durable coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
  • Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
  • Fitted with Universal Platform to accommodate interchangeable clamps of assorted sizes for different capacity of flasks..
  • Stationery shelves made of Stainless Steel (SS-304) for use of the unit as a standard B.O.D. Incubator, can be supplied at extra cost..
  • Door operated illumination lamp is fitted inside the chamber for easy visibility.
  • A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
  • High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
  • Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
  • Heating elements are placed in the path of moving air duly insulated from the body.
  • Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature provided with Volt meter on the panel to read the incoming voltage.
  • Caster wheel mounted for easy portability.
  • Supplied with cord and plug.
  • Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF ORBITAL SHAKING INCUBATOR cum BOD Incubator

Model No. PLT - 146
Usable Space in MM 600 X 600 X 600
Capacity 8 cu. Ft
Approx Volume (Ltr) 230
No. of Shelves 2
Temperature Range 5°C above ambient to 60°C (Resolution 0.1°C)
Temp. Controller By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Shaking amplitude 25 mm.
RPM Display Digital
Shaking Speed Variable speed from 20 RPM to 250 RPM
Temp. Accuracy +1°C
Temp. Display: LED Display for Set Value(SV) and Process Value (PV)
Relay Solid state electronic relay with protective heat sink.
Air Circulation By forced convection system
Insulation By High density PUF /Glass Wool
Operations Nearly silent operation with ultra-low vibration
High Voltage Protection Through automatic voltage stabilizer (Optional)
Electric Supply 220/230V AC, 50/60Hz

Tanco

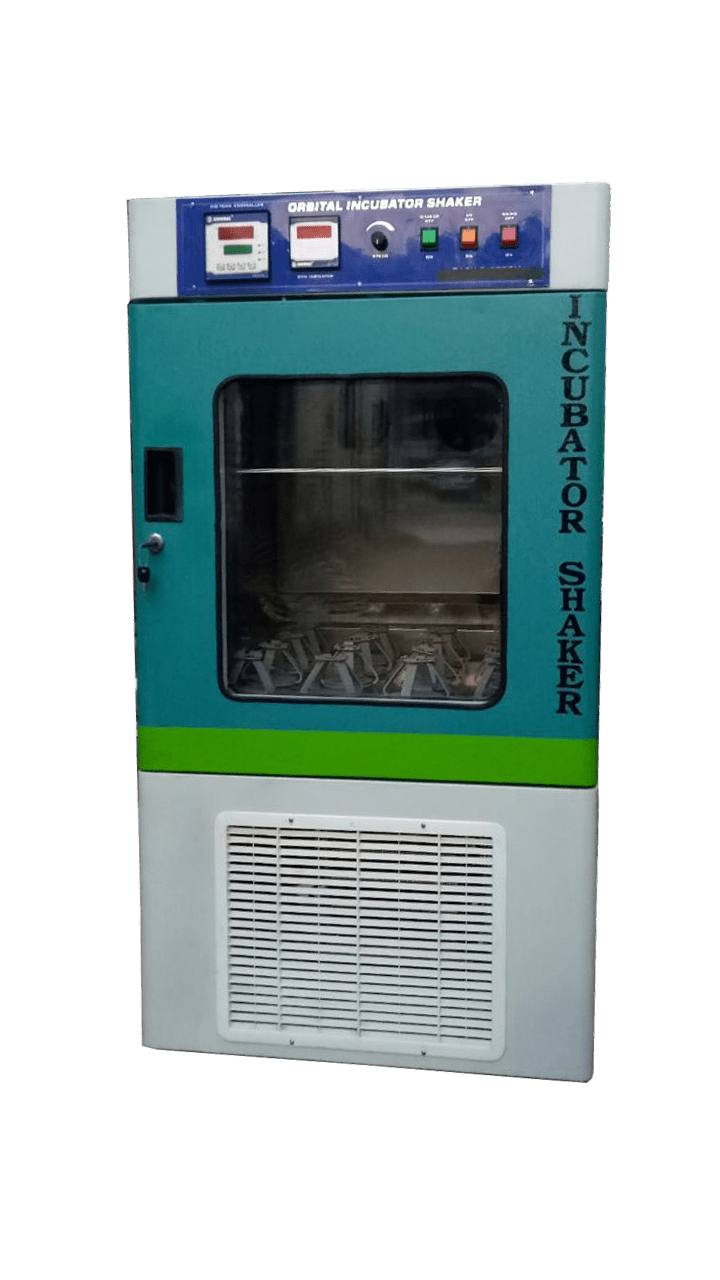

Orbital Shaking cum BOD Incubator
