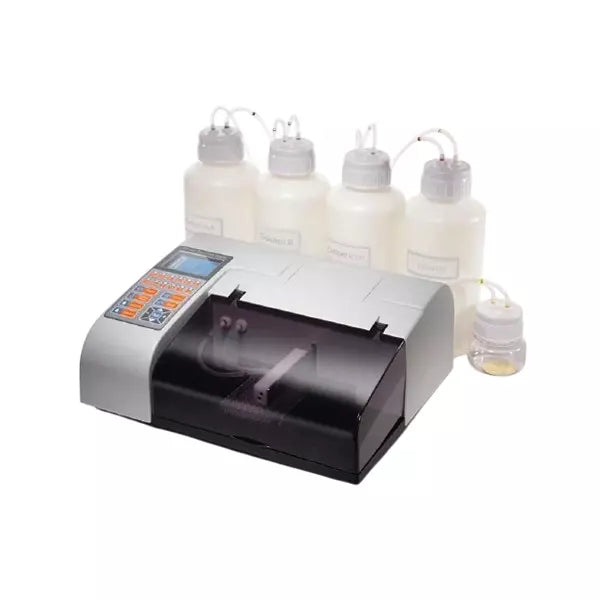

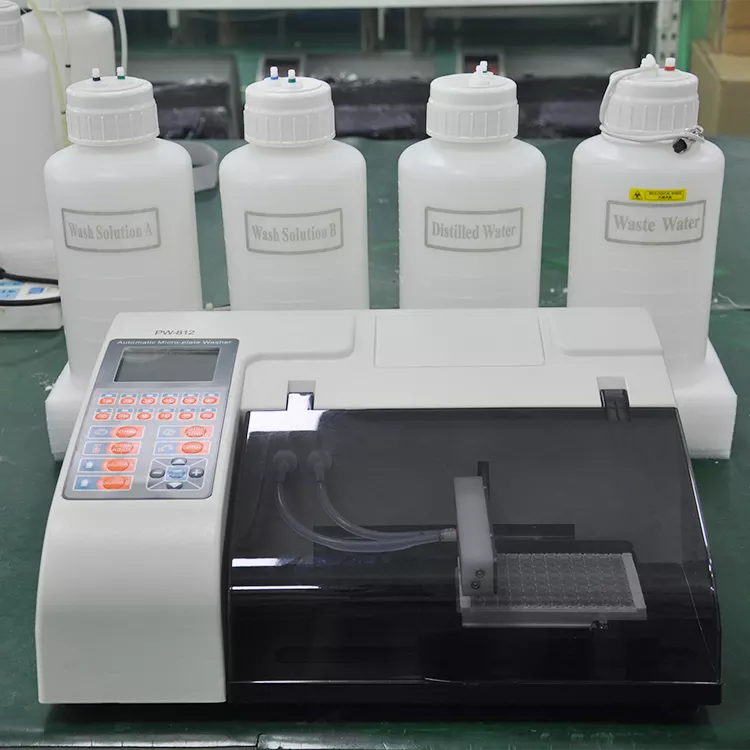

ELISA Washer with <0.7 μl/Well Channel and CV < 1.5 % Dispensing Uniformity, EW-812, ensures precise and uniform washing of microplates. Its high-accuracy dispensing system reduces reagent waste and minimizes variability between wells. The low residual volume and consistent flow rate support sensitive immunoassays, improving overall assay reliability.

Built with durable, corrosion-resistant components, EW-812 offers long-term operational stability. Its user-friendly interface simplifies programming and operation, while the compact design conserves laboratory space. This washer is suitable for high-throughput laboratories, providing dependable, efficient washing for ELISA and other plate-based assays with minimal reagent consumption and high reproducibility.

Features :

* 3.5-inch LCD display. Easy to name, edit and save different 100 wash programs. ． Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip .
* Stop or Pause key in the panel can be chosen to stop or
pauseduring working.

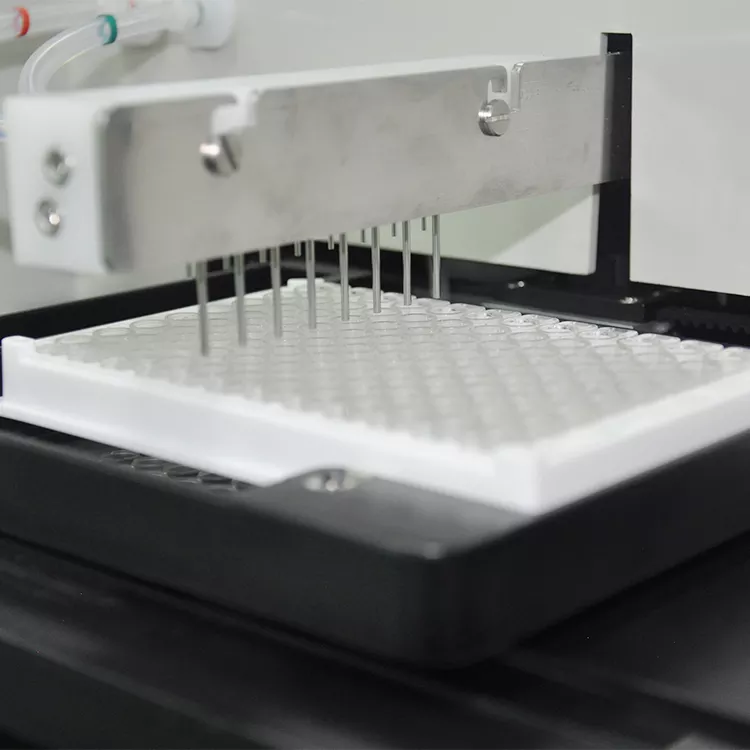

* Aspirating in 2 positions, residual volume <0.7µ1.
* Multi-plate can be selected by default settings or manual operation. ． Microplate holder is detachable, which makes easy to disinfect and maintain 1.
* Suitable for flat, U and V-bottom microplates. ． Special rinse procedure makes easy to maintain the device and reduces contamination between plates.
* Wash bottle filter keeps sediment in the solution away the pipes.
* The control technology for pump pressure can avoid clogging in needles
* Automatical rinse procedure by distilled water when turn on or turn off can avoid crystallizing in the pipes.

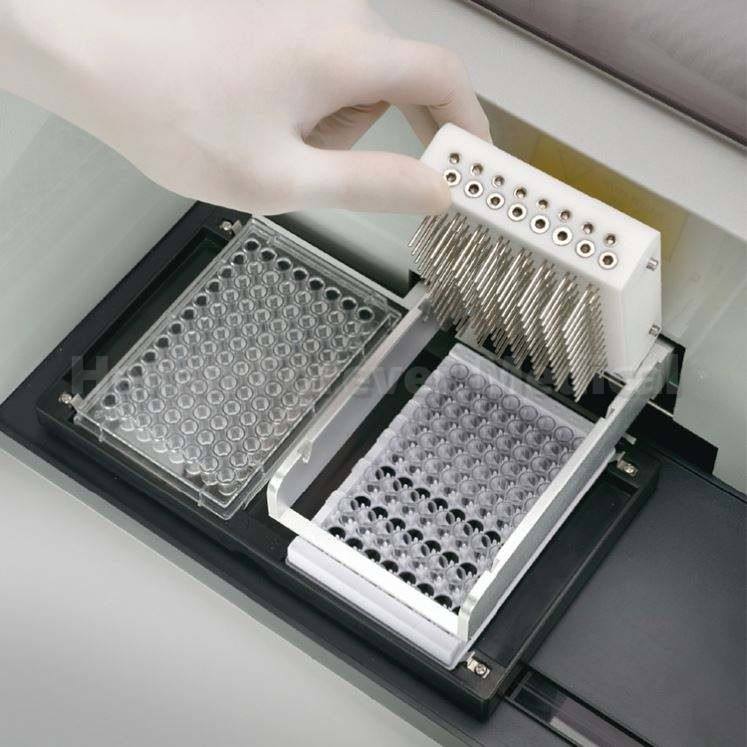

* Detachable manifolds makes easy to clear particles in the manifolds.
* Waste water sensor avoids overflow in the waste bottle.
* Scientific structure design avoids bottom contaminating.

Volume

Residual: 1-12 Lines Selectable

No. of Channels

Dispensing: 3 Channel, Can be extended to 5 Channels

Time

Aspiration: 0.1 to 9.9 seconds adjustable, interval 0.1 second, Pipeline Wash: 0 to 240 seconds Adjustable, Soaking and Shaking: 0 to 999 (seconds/minutes/hours) Adjustable

Plate Type

Flat-, Round-, U-, V- plate (96-well and 48-well)

Name of Manufacturer/Packer/Importer

Galaxy

Channel

<0.7 μl/well

Wash Lines

1 to 99 times adjustable

Dispensing Uniformity

CV<1.5%

Wash Time

8 and 12 way

Distilled Water Wash Interval

0 to 20 plates

Wash Model

Plates or Strips

Dispensing Volume

50 to 950 μl, interval of 50 μl

Galaxy

Elisa Microplate Washer

SKU EW-812
Rs.250,000.00
Rs.119,000.00

 ELISA Washer with <0.7 μl/Well Channel and CV < 1.5 % Dispensing Uniformity, EW-812, ensures precise and uniform washing of microplates. Its high-accuracy dispensing system reduces reagent waste and minimizes variability between wells. The low residual volume and consistent flow rate support sensitive immunoassays, improving overall assay reliability.

Built with durable, corrosion-resistant components, EW-812 offers long-term operational stability. Its user-friendly interface simplifies programming and operation, while the compact design conserves laboratory space. This washer is suitable for high-throughput laboratories, providing dependable, efficient washing for ELISA and other plate-based assays with minimal reagent consumption and high reproducibility.

Features :

* 3.5-inch LCD display. Easy to name, edit and save different 100 wash programs. ． Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip .
* Stop or Pause key in the panel can be chosen to stop or
pauseduring working.
* Aspirating in 2 positions, residual volume <0.7µ1.
* Multi-plate can be selected by default settings or manual operation. ． Microplate holder is detachable, which makes easy to disinfect and maintain 1.
* Suitable for flat, U and V-bottom microplates. ． Special rinse procedure makes easy to maintain the device and reduces contamination between plates.
* Wash bottle filter keeps sediment in the solution away the pipes.
* The control technology for pump pressure can avoid clogging in needles
* Automatical rinse procedure by distilled water when turn on or turn off can avoid crystallizing in the pipes.
* Detachable manifolds makes easy to clear particles in the manifolds.
* Waste water sensor avoids overflow in the waste bottle.
* Scientific structure design avoids bottom contaminating.

Volume

Residual: 1-12 Lines Selectable

No. of Channels

Dispensing: 3 Channel, Can be extended to 5 Channels

Time

Aspiration: 0.1 to 9.9 seconds adjustable, interval 0.1 second, Pipeline Wash: 0 to 240 seconds Adjustable, Soaking and Shaking: 0 to 999 (seconds/minutes/hours) Adjustable

Plate Type

Flat-, Round-, U-, V- plate (96-well and 48-well)

Name of Manufacturer/Packer/Importer

Galaxy

Channel

<0.7 μl/well

Wash Lines

1 to 99 times adjustable

Dispensing Uniformity

CV<1.5%

Wash Time

8 and 12 way

Distilled Water Wash Interval

0 to 20 plates

Wash Model

Plates or Strips

Dispensing Volume

50 to 950 μl, interval of 50 μl
Rs.250,000.00
Rs.119,000.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

 ELISA Washer with <0.7 μl/Well Channel and CV < 1.5 % Dispensing Uniformity, EW-812, ensures precise and uniform washing of microplates. Its high-accuracy dispensing system reduces reagent waste and minimizes variability between wells. The low residual volume and consistent flow rate support sensitive immunoassays, improving overall assay reliability.

Built with durable, corrosion-resistant components, EW-812 offers long-term operational stability. Its user-friendly interface simplifies programming and operation, while the compact design conserves laboratory space. This washer is suitable for high-throughput laboratories, providing dependable, efficient washing for ELISA and other plate-based assays with minimal reagent consumption and high reproducibility.

Features :

* 3.5-inch LCD display. Easy to name, edit and save different 100 wash programs. ． Any line and hole can be easily cleaned, unnecessary to complement the whole plate or strip .
* Stop or Pause key in the panel can be chosen to stop or
pauseduring working.
* Aspirating in 2 positions, residual volume <0.7µ1.
* Multi-plate can be selected by default settings or manual operation. ． Microplate holder is detachable, which makes easy to disinfect and maintain 1.
* Suitable for flat, U and V-bottom microplates. ． Special rinse procedure makes easy to maintain the device and reduces contamination between plates.
* Wash bottle filter keeps sediment in the solution away the pipes.
* The control technology for pump pressure can avoid clogging in needles
* Automatical rinse procedure by distilled water when turn on or turn off can avoid crystallizing in the pipes.
* Detachable manifolds makes easy to clear particles in the manifolds.
* Waste water sensor avoids overflow in the waste bottle.
* Scientific structure design avoids bottom contaminating.

Volume

Residual: 1-12 Lines Selectable

No. of Channels

Dispensing: 3 Channel, Can be extended to 5 Channels

Time

Aspiration: 0.1 to 9.9 seconds adjustable, interval 0.1 second, Pipeline Wash: 0 to 240 seconds Adjustable, Soaking and Shaking: 0 to 999 (seconds/minutes/hours) Adjustable

Plate Type

Flat-, Round-, U-, V- plate (96-well and 48-well)

Name of Manufacturer/Packer/Importer

Galaxy

Channel

<0.7 μl/well

Wash Lines

1 to 99 times adjustable

Dispensing Uniformity

CV<1.5%

Wash Time

8 and 12 way

Distilled Water Wash Interval

0 to 20 plates

Wash Model

Plates or Strips

Dispensing Volume

50 to 950 μl, interval of 50 μl
