SALIENT FEATURES:

1. Full wavelength scanning (190-1100nm) covers UV, Vis. near IR.
2. Fully sealed structure, all optical mirrors are equipped with SiO2 protective film to avoid stray light caused by dust and corrosive gas.
3. Core components reduce the stray light and improve the stability and reliability.
4. Double beam optical system with precision vertical-type dual optical path and dual detector.
5. Grating of high performance greatly reduces the stray light and improves the stability and reliability of device.
6. 10 inches large touch screen, built-in 32GB memory.
7. Powerful data analysis system with internal computer could realize multi functions independently. Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/Protein test, multi-wavelength analysis and data printing.
8.  W Lamp / D2 Lamp can monitor of usage hours.
9. Data can export in Pendrive directly
10. Convenient data storage and printing function. LUV Series can be directly connected to the printer HP DESKJET 2723 for A4 paper data and graph printing.
11. Automatic power ON self test and system positioning function could inspect and calibrate the deviation before every use.
12. All test data and analysis report can be exported to USB disk directly.
13. Graphs support 3D display,
14. PC software follows GLP & GMP standards, user management, logging, data tracking, etc. mostly as per 21CFR Part 11.



Specifications:

MODEL LUV2000T               LUV2100T
Bandwidth 1.0nm                                                         1.0, 2.0, 4.0,5.0 nm (variable)
Make LABMAN
Optical System Double beam
Wavelength Range 190-1100nm
Wavelength Accuracy                              +0.1nm(D2 656.1nm),+0.3 nm full range
Wavelength Repeatability +0.1nm
Photometric Range                                0-200%T. -0.3-3.0A, 0-9999C
Photometric Accuracy +0.2T(0-100%T), +0.002Abs(0-0.5Abs),+0.004Abs(0.5-1.0Abs )
Photometric Repeatability <0.05%6T(0-100%6T), 0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs)
Stability +0.0004A/h @ 500nm
Stray Light 0.03%T @ 220 nm, 360 nm
Cell Holder 10mm each, Sample & Reference Cuvette Holder
Focal Length 10mm
Light Source Tungsten Lamp & Deuterium lamp
Resolution 0.1nm
Display Touchscreen 10-inches (800 x 480) HD TFT
Memory 32GB
Detector Silicon Photodiode
Control Mode Stand-alone system/PC software
Baseline flatness +0.0008A/h
Data Output USB
Power Supply Adaptor, Using AC 220V,50/60Hz
Dimension (L x W x H) 630 x 430 x 210mm
Weight 28kg



Labman

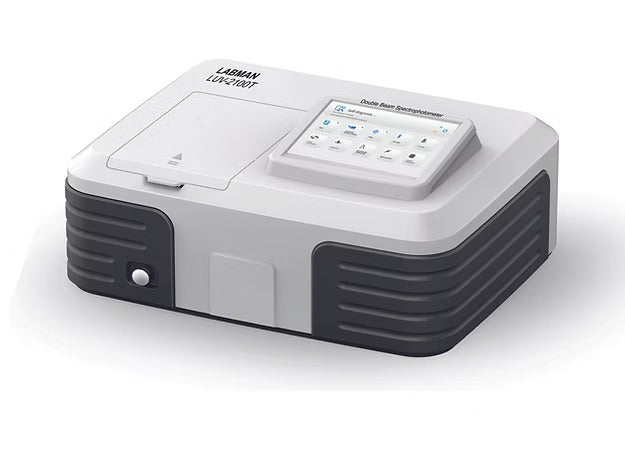

UV-Vis. Double Beam Spectrophotometer (Touchscreen) LUV2100T

SKU LUV2100T
Rs.499,000.00
Rs.344,100.00

SALIENT FEATURES:

1. Full wavelength scanning (190-1100nm) covers UV, Vis. near IR.
2. Fully sealed structure, all optical mirrors are equipped with SiO2 protective film to avoid stray light caused by dust and corrosive gas.
3. Core components reduce the stray light and improve the stability and reliability.
4. Double beam optical system with precision vertical-type dual optical path and dual detector.
5. Grating of high performance greatly reduces the stray light and improves the stability and reliability of device.
6. 10 inches large touch screen, built-in 32GB memory.
7. Powerful data analysis system with internal computer could realize multi functions independently. Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/Protein test, multi-wavelength analysis and data printing.
8.  W Lamp / D2 Lamp can monitor of usage hours.
9. Data can export in Pendrive directly
10. Convenient data storage and printing function. LUV Series can be directly connected to the printer HP DESKJET 2723 for A4 paper data and graph printing.
11. Automatic power ON self test and system positioning function could inspect and calibrate the deviation before every use.
12. All test data and analysis report can be exported to USB disk directly.
13. Graphs support 3D display,
14. PC software follows GLP & GMP standards, user management, logging, data tracking, etc. mostly as per 21CFR Part 11.



Specifications:

MODEL LUV2000T               LUV2100T
Bandwidth 1.0nm                                                         1.0, 2.0, 4.0,5.0 nm (variable)
Make LABMAN
Optical System Double beam
Wavelength Range 190-1100nm
Wavelength Accuracy                              +0.1nm(D2 656.1nm),+0.3 nm full range
Wavelength Repeatability +0.1nm
Photometric Range                                0-200%T. -0.3-3.0A, 0-9999C
Photometric Accuracy +0.2T(0-100%T), +0.002Abs(0-0.5Abs),+0.004Abs(0.5-1.0Abs )
Photometric Repeatability <0.05%6T(0-100%6T), 0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs)
Stability +0.0004A/h @ 500nm
Stray Light 0.03%T @ 220 nm, 360 nm
Cell Holder 10mm each, Sample & Reference Cuvette Holder
Focal Length 10mm
Light Source Tungsten Lamp & Deuterium lamp
Resolution 0.1nm
Display Touchscreen 10-inches (800 x 480) HD TFT
Memory 32GB
Detector Silicon Photodiode
Control Mode Stand-alone system/PC software
Baseline flatness +0.0008A/h
Data Output USB
Power Supply Adaptor, Using AC 220V,50/60Hz
Dimension (L x W x H) 630 x 430 x 210mm
Weight 28kg


Rs.499,000.00
Rs.344,100.00
  • Delivery Period :3-5 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

SALIENT FEATURES:

1. Full wavelength scanning (190-1100nm) covers UV, Vis. near IR.
2. Fully sealed structure, all optical mirrors are equipped with SiO2 protective film to avoid stray light caused by dust and corrosive gas.
3. Core components reduce the stray light and improve the stability and reliability.
4. Double beam optical system with precision vertical-type dual optical path and dual detector.
5. Grating of high performance greatly reduces the stray light and improves the stability and reliability of device.
6. 10 inches large touch screen, built-in 32GB memory.
7. Powerful data analysis system with internal computer could realize multi functions independently. Like establishing calibration curve, photometric measurement, quantitative measurement, spectral scanning, dynamics, DNA/Protein test, multi-wavelength analysis and data printing.
8.  W Lamp / D2 Lamp can monitor of usage hours.
9. Data can export in Pendrive directly
10. Convenient data storage and printing function. LUV Series can be directly connected to the printer HP DESKJET 2723 for A4 paper data and graph printing.
11. Automatic power ON self test and system positioning function could inspect and calibrate the deviation before every use.
12. All test data and analysis report can be exported to USB disk directly.
13. Graphs support 3D display,
14. PC software follows GLP & GMP standards, user management, logging, data tracking, etc. mostly as per 21CFR Part 11.



Specifications:

MODEL LUV2000T               LUV2100T
Bandwidth 1.0nm                                                         1.0, 2.0, 4.0,5.0 nm (variable)
Make LABMAN
Optical System Double beam
Wavelength Range 190-1100nm
Wavelength Accuracy                              +0.1nm(D2 656.1nm),+0.3 nm full range
Wavelength Repeatability +0.1nm
Photometric Range                                0-200%T. -0.3-3.0A, 0-9999C
Photometric Accuracy +0.2T(0-100%T), +0.002Abs(0-0.5Abs),+0.004Abs(0.5-1.0Abs )
Photometric Repeatability <0.05%6T(0-100%6T), 0.001Abs(0-0.5Abs), 0.002Abs(0.5-1.0Abs)
Stability +0.0004A/h @ 500nm
Stray Light 0.03%T @ 220 nm, 360 nm
Cell Holder 10mm each, Sample & Reference Cuvette Holder
Focal Length 10mm
Light Source Tungsten Lamp & Deuterium lamp
Resolution 0.1nm
Display Touchscreen 10-inches (800 x 480) HD TFT
Memory 32GB
Detector Silicon Photodiode
Control Mode Stand-alone system/PC software
Baseline flatness +0.0008A/h
Data Output USB
Power Supply Adaptor, Using AC 220V,50/60Hz
Dimension (L x W x H) 630 x 430 x 210mm
Weight 28kg
