Discover the precision of a double-beam UV-VIS spectrophotometer. Accurately measure the absorbance of samples in the ultraviolet and visible spectrum. Ideal for research, quality control, and various scientific applications.Explore advanced features and benefits for reliable and efficient measurements.

  • The two detectors are used to measure sample and reference respectively and simultaneously for optimizing measurement accuracy.
  • Lamp Selection enables conserving the life of D2 & Tungsten lamps. Real time clock for date & time available (GLP).
  • LIGHT PATH DESIGN: DOUBLE BEAM
    UV1500 & UV1600 double light design can prevent circuit fluctuation and stray light to ensure stability of the instrument.
  • LONG PATH LIGHT DESIGN
    UV1500 & UV1600 unique 520mm long light path design resolution and the bandwidth 1nm.
  • 16MM OPTICAL BASE
    UV1500 use a rigid 16mm die cast aluminum base as their optical mount to ensure the stability and reliability.
  • 6 INCHES LCD DISPLAY
    UV1500 have a 6 inches LCD display to show results and curves directly on the screen.
  • SOFTWARE FUNCTIONS
    Multi functions operated directly on the spectrophotometer and display the test results' curve and data: wavelength scanning,
    standard curve, kinetics, multi wavelength scanning, DNA/protein test.
  • PERFECT CALIBRATION SYSTEM
    All baseline, wavelength, dark current can be calibrated automatically to keep good running conditions.
  • DATA OUTPUT

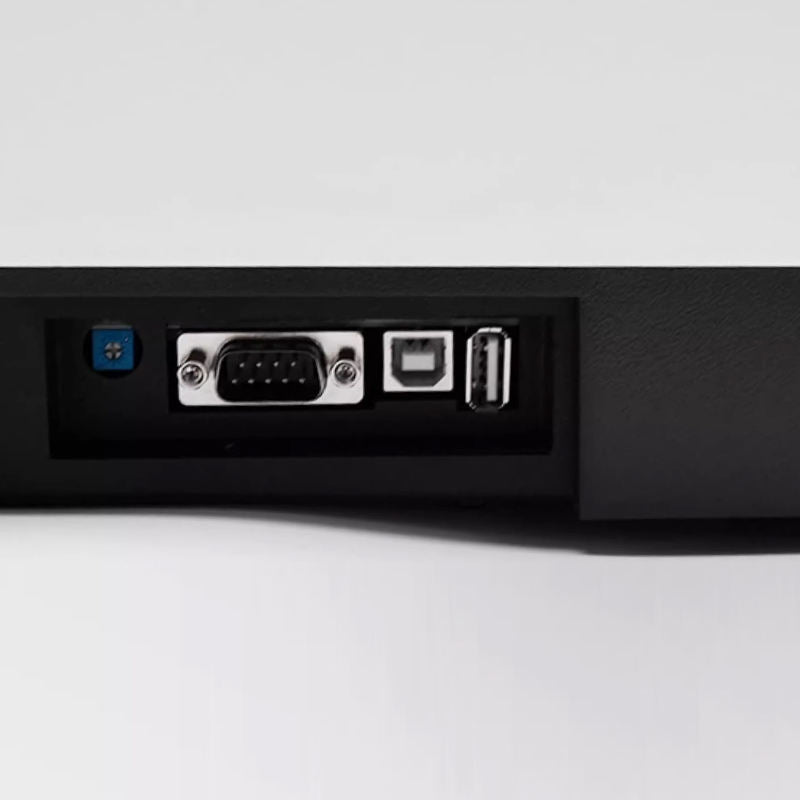

    UV1500 are equipped with USB port to connect with a PC

Technical Specifications :

Bandwidth  : 1 / 2 / 4 / 5 mm (Variable)

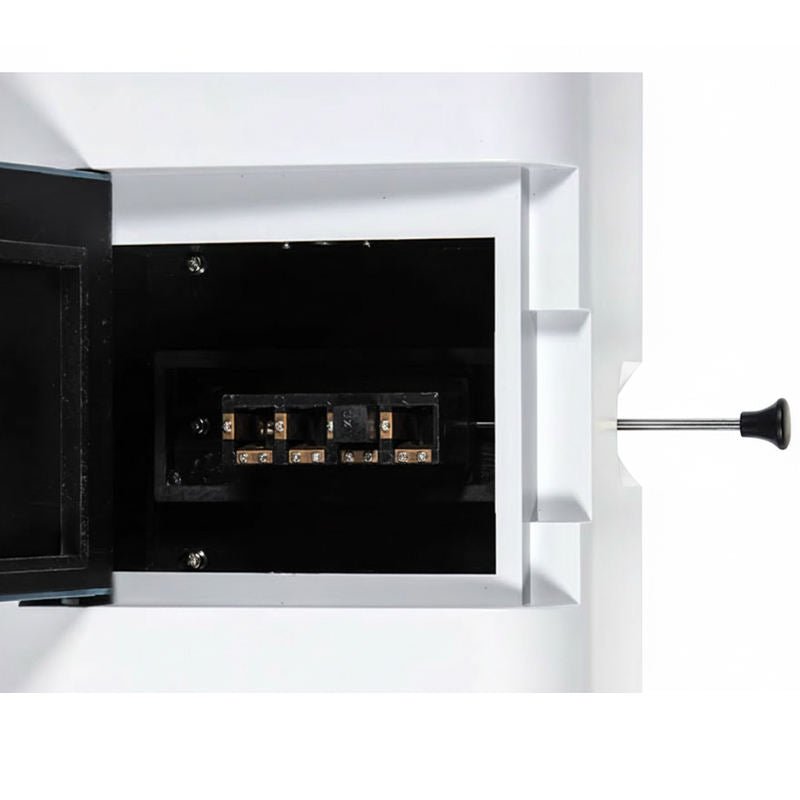

Cell Holder   : Sample & Reference Cuvette Holder (10mm each)
Optical System :  Double Beam(1200 Lines/mm Grating)
Wavelength Range :  190-1100nm
Wavelength Accuracy :  ±0.3nm
Wavelength Repeatability : ±0.2nm
Scanning Speed : Fast, Medium & Low
Photometric Accuracy :  ±0.3%T
Photometric Repeatability :  +0.2%T
Photometric Range :  -0.3-3A,0-200%T,0-9999C
Stability :  ± 0.001A/h @ 500nm
Baseline Flatness :  ± 0.001A/h
Focal Length : 10mm
Stray Light :  ≤0.05%T @ 220nm,360nm
Data Output :  Port USB Port
Printer Port :  Parallel Port
Display :  LCD
Lamps :  D2 Lamp & Tungsten Halogen Lamp (W Lamp)
Detector  : Silicon Photodiode
Power Supply :  AC 220V / 50Hz
Dimension :  (LxWxH) 620x430x200 mm
Gross Weight  :30kg

Frequently Asked Questions (FAQs)

1. What is an Advanced Double Beam UV-Vis Spectrophotometer?

It is a laboratory analytical instrument used to measure absorbance and transmittance in the ultraviolet and visible spectrum using separate beams for sample and reference measurements, ensuring greater analytical accuracy and stability.

2. What is the wavelength range of the instrument?

The spectrophotometer operates within a wavelength range of 190–1100 nm, suitable for UV and visible light analysis.

3. What applications can this spectrophotometer perform?

The instrument supports:

  • Spectral scanning

  • Quantitative analysis

  • DNA/protein analysis

  • Kinetics testing

  • Multi-wavelength analysis

  • Standard curve analysis

4. Why is a double beam optical system important?

A double beam optical system improves accuracy and minimizes fluctuations by simultaneously comparing the sample and reference beams during analysis.

5. Which industries commonly use this instrument?

It is widely used in:

  • Pharmaceutical industries

  • Chemical laboratories

  • Food and beverage testing labs

  • Biotechnology research centers

  • Environmental testing laboratories

  • Universities and research institutions

6. What type of light source is used?

The spectrophotometer uses Deuterium (D2) lamps for UV analysis and Tungsten Halogen lamps for visible spectrum measurements.

7. Does the instrument support software connectivity?

Yes, advanced software integration enables spectral analysis, report generation, data storage, and PC connectivity through USB interfaces.

8. What detector technology is used?

Most advanced UV-Vis spectrophotometers use high-sensitivity silicon photodiode detectors for stable and accurate optical measurements.

9. Can the instrument perform pharmaceutical analysis?

Yes, the instrument is widely used for pharmaceutical quality control, formulation analysis, dissolution testing, and raw material verification.

10. Is the spectrophotometer suitable for research laboratories?

Yes, it is ideal for academic research, industrial R&D, biotechnology studies, and advanced scientific analysis.
