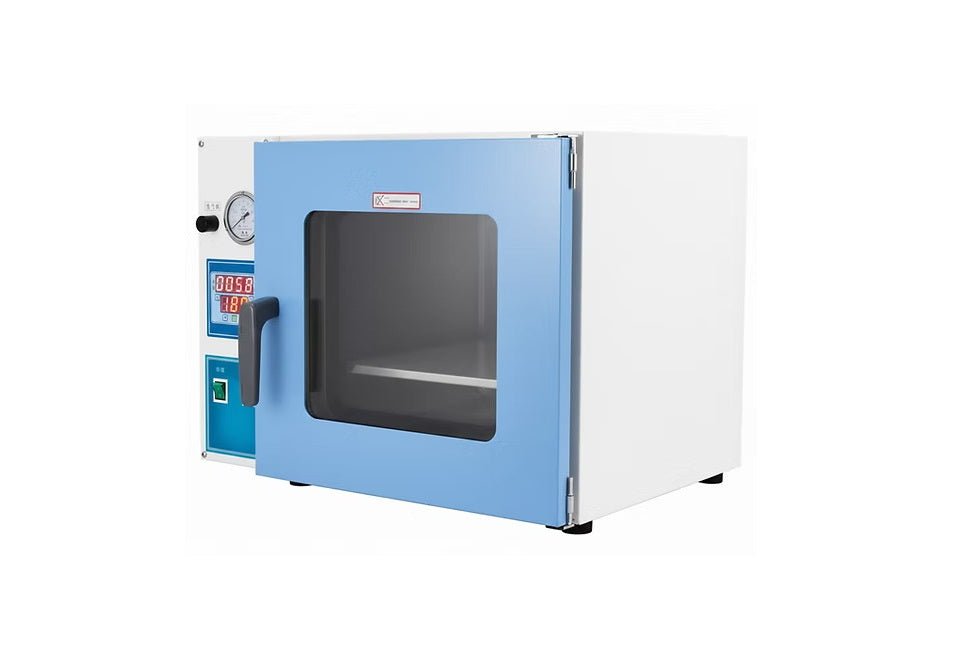

Vacuum Drying Oven

Features:

  • PID microprocessor temperature control with LED display / LCD display.

  • Polished stainless steel inner chamber.

  • Vacuum degree is automatically controlled (for LMV-90V / LMV-215V / LMV-90VL / LMV-215VL).

  • Silicon rubber seal ring ensures high vacuum degree in the chamber.

  • Tempered double-layer glass door ensures the operation safety.

  • The vacuum is controlled by microprocessor controller with digital display. (for LMV-90VL / LMV-215VL)

  • The working program can be cycled for 99 times. (for LMV-90VL / LMV-215VL)

  • The vacuum pump is standard accessory (for LMV-90V / LMV-215V / LMV-90VL / LMV-215VL).

  • Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1 Mpa when filling gas.) (for LMV-90VL / LMV-215VL)

Models:

Model LMV-30V LMV-50V LMV-90V LMV-215V LMV-90VL LMV-215VL
Capacity 30L 54L 91L 215L 91L 215L
Temp. Range 50–200°C 50–250°C 50–200°C – – –
Temp. Fluctuation ±1°C
Vacuum Degree < 133 Pa
Vacuum Control / Automatically; Include one vacuum meter Automatically; Microprocessor controller with digital display
Shelves No. 1 pc 2 pcs 2 pcs 3 pcs 2 pcs 3 pcs
Consumption 500W 1400W 1600W 2200W 1600W 2200W
Power Supply AC110V/220V ±10%, 50/60Hz
Internal Size (W×D×H) mm 300×300×280 420×350×370 450×450×450 560×600×640 450×450×450 560×600×640
External Size (W×D×H) mm 296×300×270 416×370×346 450×450×450 556×600×640 450×450×450 556×600×640
Packing Size (W×D×H) mm 590×440×470 710×510×544 610×595×1395 720×740×1460 610×595×1395 720×740×1460
Gross Weight (kg) 50 106 155 195 155 195

Luxmed

Vacuum Drying Oven

SKU LMV-30V
Rs.0.00

Vacuum Drying Oven

Features:

  • PID microprocessor temperature control with LED display / LCD display.

  • Polished stainless steel inner chamber.

  • Vacuum degree is automatically controlled (for LMV-90V / LMV-215V / LMV-90VL / LMV-215VL).

  • Silicon rubber seal ring ensures high vacuum degree in the chamber.

  • Tempered double-layer glass door ensures the operation safety.

  • The vacuum is controlled by microprocessor controller with digital display. (for LMV-90VL / LMV-215VL)

  • The working program can be cycled for 99 times. (for LMV-90VL / LMV-215VL)

  • The vacuum pump is standard accessory (for LMV-90V / LMV-215V / LMV-90VL / LMV-215VL).

  • Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1 Mpa when filling gas.) (for LMV-90VL / LMV-215VL)

Models:

Model LMV-30V LMV-50V LMV-90V LMV-215V LMV-90VL LMV-215VL
Capacity 30L 54L 91L 215L 91L 215L
Temp. Range 50–200°C 50–250°C 50–200°C – – –
Temp. Fluctuation ±1°C
Vacuum Degree < 133 Pa
Vacuum Control / Automatically; Include one vacuum meter Automatically; Microprocessor controller with digital display
Shelves No. 1 pc 2 pcs 2 pcs 3 pcs 2 pcs 3 pcs
Consumption 500W 1400W 1600W 2200W 1600W 2200W
Power Supply AC110V/220V ±10%, 50/60Hz
Internal Size (W×D×H) mm 300×300×280 420×350×370 450×450×450 560×600×640 450×450×450 560×600×640
External Size (W×D×H) mm 296×300×270 416×370×346 450×450×450 556×600×640 450×450×450 556×600×640
Packing Size (W×D×H) mm 590×440×470 710×510×544 610×595×1395 720×740×1460 610×595×1395 720×740×1460
Gross Weight (kg) 50 106 155 195 155 195
Rs.0.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Vacuum Drying Oven

Features:

  • PID microprocessor temperature control with LED display / LCD display.

  • Polished stainless steel inner chamber.

  • Vacuum degree is automatically controlled (for LMV-90V / LMV-215V / LMV-90VL / LMV-215VL).

  • Silicon rubber seal ring ensures high vacuum degree in the chamber.

  • Tempered double-layer glass door ensures the operation safety.

  • The vacuum is controlled by microprocessor controller with digital display. (for LMV-90VL / LMV-215VL)

  • The working program can be cycled for 99 times. (for LMV-90VL / LMV-215VL)

  • The vacuum pump is standard accessory (for LMV-90V / LMV-215V / LMV-90VL / LMV-215VL).

  • Inert gas can be filled in the chamber. (Inert gas pressure is not higher than 0.1 Mpa when filling gas.) (for LMV-90VL / LMV-215VL)

Models:

Model LMV-30V LMV-50V LMV-90V LMV-215V LMV-90VL LMV-215VL
Capacity 30L 54L 91L 215L 91L 215L
Temp. Range 50–200°C 50–250°C 50–200°C – – –
Temp. Fluctuation ±1°C
Vacuum Degree < 133 Pa
Vacuum Control / Automatically; Include one vacuum meter Automatically; Microprocessor controller with digital display
Shelves No. 1 pc 2 pcs 2 pcs 3 pcs 2 pcs 3 pcs
Consumption 500W 1400W 1600W 2200W 1600W 2200W
Power Supply AC110V/220V ±10%, 50/60Hz
Internal Size (W×D×H) mm 300×300×280 420×350×370 450×450×450 560×600×640 450×450×450 560×600×640
External Size (W×D×H) mm 296×300×270 416×370×346 450×450×450 556×600×640 450×450×450 556×600×640
Packing Size (W×D×H) mm 590×440×470 710×510×544 610×595×1395 720×740×1460 610×595×1395 720×740×1460
Gross Weight (kg) 50 106 155 195 155 195
