Platelet Storage Systems

Incubators and Agitators

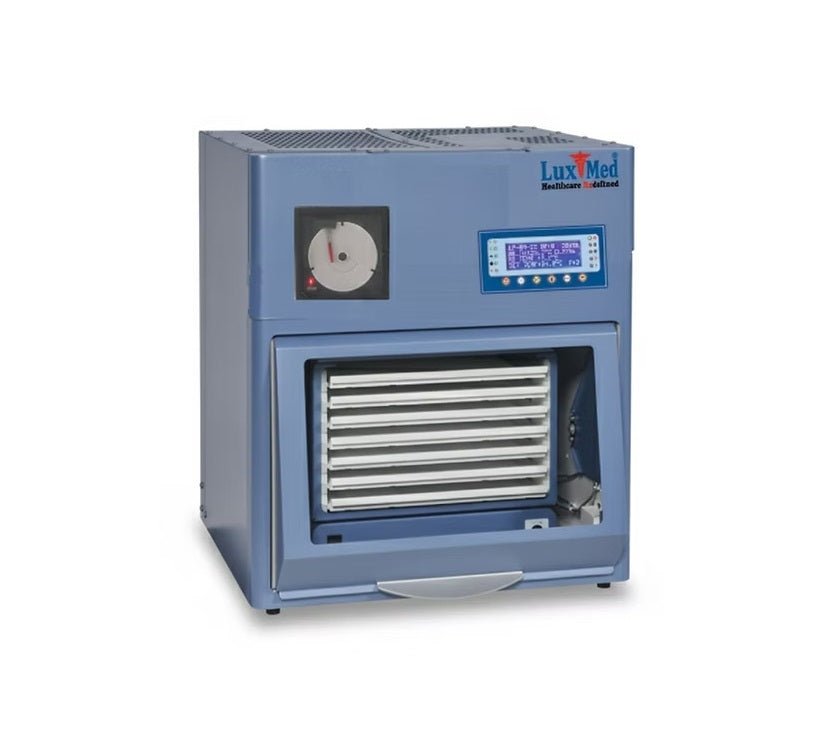

Platelet incubators, countertop

Model Number LM-PIC-100TC LM-PIC-900TC LM-PIC-1200TC
Temp Range / Set point +20° to +35°C / 22°C +20° to +35°C / 22°C +20° to +35°C / 22°C
Electrical 120-240V 50/60Hz 120-240V 50/60Hz 120-240V 50/60Hz
Interior Dimensions (w x h x d) 18.5 x 16.2 x 10.7 inch
469 x 411 x 271 mm		 23.8 x 19.9 x 18.9 inch
604 x 505 x 480 mm		 37.9 x 19.9 x 18.9 inch
962 x 505 x 480 mm
Exterior Dimensions (w x h x d) 20.8 x 26.4 x 16.9 inch
528 x 670 x 429 mm		 26 x 29.7 x 26 inch
661 x 753 x 661 mm		 40.3 x 29.7 x 26 inch
1023 x 753 x 766 mm
Net Weight lb / kg 116 / 53 136 / 62 173 / 79

LuxMed® Line platelet agitators

Model Number LM-PA-100 LM-PA-900 LM-PA-1200
Capacity 15 WBD, 7 SDP 48 WBD, 16 SDP 96 WBD, 32 SDP
Electrical 220-240V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz
Storage 1 Shelf, 6 ventilated drawers 1 Shelf, 7 ventilated drawers 1 Shelf, 7 ventilated drawers
Exterior Dimensions (w x h x d) 15.4 x 13.1 x 8.5 inch
392 x 333 x 216 mm		 17.2 x 14.5 x 13.8 inch
437 x 368 x 351 mm		 32.2 x 14.5 x 13.8 inch
818 x 368 x 351 mm
Net Weight lb / kg 33 / 15 50 / 23 80 / 37

Agitator System

  • Agitation Switch: On/Off

  • Agitation Speed: Yes, 72 cycles/min (CPM), user-adjustable

  • Motor: BLDC agitation motor with gentle glide operation

Performance Characteristics

  • Energy Consumption: 0.27 kWh/day

  • Heat Rejection / Emission: 40 BTU/hr

  • Noise Emission: 42.2 dBA

Application, Rating, & Electrical Data

  • Application: Provides continuous gentle agitation conditions required for the storage of platelet products

  • Storage Volume: 15 WBD/Random Bags | 7 SDP/Apheresis Bags

  • Electrical Power: 100-240V 50/60Hz Standalone | 24 VDC compatible incubator

  • Maximum Power Draw: 16 W

  • Indoor/Outdoor Use: Indoor use only, non-residential

  • Application Environment: Non-corrosive, non-flammable, non-explosive

  • Ambient Operating Temperature: +5°C to +35°C, 80% RH

Controller Configuration Settings

  • Communication Ports: Remote alarm contacts, RS485 to Pro Line Incubator

  • Alarm Switch: On/Off

  • Alarm Indication: Audible (adjustable) and visual

  • Battery Back-Up: Yes, 2 hours of audible/visual alarm upon loss of motion/facility power. Rechargeable 9V NiMH battery.

Dimensions and Construction

  • Exterior (w x h x d): 15.4 x 13.1 x 8.5 in | 392 x 333 x 216 mm

  • Overall Exterior (w x h x d): 16 x 13.5 x 9.1 in | 407 x 343 x 232 mm

  • Base Material: Bacteria-resistant powder coating

  • Interior Storage: 1 shelf | 6 ventilated drawers, bacteria-resistant, powder-coated galvannealed steel

  • Shelf (w x d): 15.1 x 8.1 in | 384 x 206 mm | 1.1 kg max capacity/shelf

  • Drawer (w x d): 13.1 x 8.1 in | 333 x 206 mm | 1.1 kg max capacity/shelf

  • Drawer Spacing: Adjustable, 0.7 in increments

  • Net Weight: 33 lb | 15 kg

  • Shipping Weight: 42 lb | 19 kg

  • Clearance Requirements: Minimum 0.5" (13 mm) behind unit for clearance and feature access. Minimum 0.75" (20 mm) left and right for clearance.

Luxmed

Platelet Storage Systems

SKU LM-PIC-100TC
Rs.0.00

Platelet Storage Systems

Incubators and Agitators

Platelet incubators, countertop

Model Number LM-PIC-100TC LM-PIC-900TC LM-PIC-1200TC
Temp Range / Set point +20° to +35°C / 22°C +20° to +35°C / 22°C +20° to +35°C / 22°C
Electrical 120-240V 50/60Hz 120-240V 50/60Hz 120-240V 50/60Hz
Interior Dimensions (w x h x d) 18.5 x 16.2 x 10.7 inch
469 x 411 x 271 mm		 23.8 x 19.9 x 18.9 inch
604 x 505 x 480 mm		 37.9 x 19.9 x 18.9 inch
962 x 505 x 480 mm
Exterior Dimensions (w x h x d) 20.8 x 26.4 x 16.9 inch
528 x 670 x 429 mm		 26 x 29.7 x 26 inch
661 x 753 x 661 mm		 40.3 x 29.7 x 26 inch
1023 x 753 x 766 mm
Net Weight lb / kg 116 / 53 136 / 62 173 / 79

LuxMed® Line platelet agitators

Model Number LM-PA-100 LM-PA-900 LM-PA-1200
Capacity 15 WBD, 7 SDP 48 WBD, 16 SDP 96 WBD, 32 SDP
Electrical 220-240V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz
Storage 1 Shelf, 6 ventilated drawers 1 Shelf, 7 ventilated drawers 1 Shelf, 7 ventilated drawers
Exterior Dimensions (w x h x d) 15.4 x 13.1 x 8.5 inch
392 x 333 x 216 mm		 17.2 x 14.5 x 13.8 inch
437 x 368 x 351 mm		 32.2 x 14.5 x 13.8 inch
818 x 368 x 351 mm
Net Weight lb / kg 33 / 15 50 / 23 80 / 37

Agitator System

  • Agitation Switch: On/Off

  • Agitation Speed: Yes, 72 cycles/min (CPM), user-adjustable

  • Motor: BLDC agitation motor with gentle glide operation

Performance Characteristics

  • Energy Consumption: 0.27 kWh/day

  • Heat Rejection / Emission: 40 BTU/hr

  • Noise Emission: 42.2 dBA

Application, Rating, & Electrical Data

  • Application: Provides continuous gentle agitation conditions required for the storage of platelet products

  • Storage Volume: 15 WBD/Random Bags | 7 SDP/Apheresis Bags

  • Electrical Power: 100-240V 50/60Hz Standalone | 24 VDC compatible incubator

  • Maximum Power Draw: 16 W

  • Indoor/Outdoor Use: Indoor use only, non-residential

  • Application Environment: Non-corrosive, non-flammable, non-explosive

  • Ambient Operating Temperature: +5°C to +35°C, 80% RH

Controller Configuration Settings

  • Communication Ports: Remote alarm contacts, RS485 to Pro Line Incubator

  • Alarm Switch: On/Off

  • Alarm Indication: Audible (adjustable) and visual

  • Battery Back-Up: Yes, 2 hours of audible/visual alarm upon loss of motion/facility power. Rechargeable 9V NiMH battery.

Dimensions and Construction

  • Exterior (w x h x d): 15.4 x 13.1 x 8.5 in | 392 x 333 x 216 mm

  • Overall Exterior (w x h x d): 16 x 13.5 x 9.1 in | 407 x 343 x 232 mm

  • Base Material: Bacteria-resistant powder coating

  • Interior Storage: 1 shelf | 6 ventilated drawers, bacteria-resistant, powder-coated galvannealed steel

  • Shelf (w x d): 15.1 x 8.1 in | 384 x 206 mm | 1.1 kg max capacity/shelf

  • Drawer (w x d): 13.1 x 8.1 in | 333 x 206 mm | 1.1 kg max capacity/shelf

  • Drawer Spacing: Adjustable, 0.7 in increments

  • Net Weight: 33 lb | 15 kg

  • Shipping Weight: 42 lb | 19 kg

  • Clearance Requirements: Minimum 0.5" (13 mm) behind unit for clearance and feature access. Minimum 0.75" (20 mm) left and right for clearance.
Rs.0.00
  • Delivery Period :5-7 Working Days
  • Replacement :3 Days Replacement as standard, Free of Cost
  • Dedicated Support :Support from 9:30 AM to 6:00 PM everyday

Product Description

Platelet Storage Systems

Incubators and Agitators

Platelet incubators, countertop

Model Number LM-PIC-100TC LM-PIC-900TC LM-PIC-1200TC
Temp Range / Set point +20° to +35°C / 22°C +20° to +35°C / 22°C +20° to +35°C / 22°C
Electrical 120-240V 50/60Hz 120-240V 50/60Hz 120-240V 50/60Hz
Interior Dimensions (w x h x d) 18.5 x 16.2 x 10.7 inch
469 x 411 x 271 mm		 23.8 x 19.9 x 18.9 inch
604 x 505 x 480 mm		 37.9 x 19.9 x 18.9 inch
962 x 505 x 480 mm
Exterior Dimensions (w x h x d) 20.8 x 26.4 x 16.9 inch
528 x 670 x 429 mm		 26 x 29.7 x 26 inch
661 x 753 x 661 mm		 40.3 x 29.7 x 26 inch
1023 x 753 x 766 mm
Net Weight lb / kg 116 / 53 136 / 62 173 / 79

LuxMed® Line platelet agitators

Model Number LM-PA-100 LM-PA-900 LM-PA-1200
Capacity 15 WBD, 7 SDP 48 WBD, 16 SDP 96 WBD, 32 SDP
Electrical 220-240V 50/60Hz 220-240V 50/60Hz 220-240V 50/60Hz
Storage 1 Shelf, 6 ventilated drawers 1 Shelf, 7 ventilated drawers 1 Shelf, 7 ventilated drawers
Exterior Dimensions (w x h x d) 15.4 x 13.1 x 8.5 inch
392 x 333 x 216 mm		 17.2 x 14.5 x 13.8 inch
437 x 368 x 351 mm		 32.2 x 14.5 x 13.8 inch
818 x 368 x 351 mm
Net Weight lb / kg 33 / 15 50 / 23 80 / 37

Agitator System

  • Agitation Switch: On/Off

  • Agitation Speed: Yes, 72 cycles/min (CPM), user-adjustable

  • Motor: BLDC agitation motor with gentle glide operation

Performance Characteristics

  • Energy Consumption: 0.27 kWh/day

  • Heat Rejection / Emission: 40 BTU/hr

  • Noise Emission: 42.2 dBA

Application, Rating, & Electrical Data

  • Application: Provides continuous gentle agitation conditions required for the storage of platelet products

  • Storage Volume: 15 WBD/Random Bags | 7 SDP/Apheresis Bags

  • Electrical Power: 100-240V 50/60Hz Standalone | 24 VDC compatible incubator

  • Maximum Power Draw: 16 W

  • Indoor/Outdoor Use: Indoor use only, non-residential

  • Application Environment: Non-corrosive, non-flammable, non-explosive

  • Ambient Operating Temperature: +5°C to +35°C, 80% RH

Controller Configuration Settings

  • Communication Ports: Remote alarm contacts, RS485 to Pro Line Incubator

  • Alarm Switch: On/Off

  • Alarm Indication: Audible (adjustable) and visual

  • Battery Back-Up: Yes, 2 hours of audible/visual alarm upon loss of motion/facility power. Rechargeable 9V NiMH battery.

Dimensions and Construction

  • Exterior (w x h x d): 15.4 x 13.1 x 8.5 in | 392 x 333 x 216 mm

  • Overall Exterior (w x h x d): 16 x 13.5 x 9.1 in | 407 x 343 x 232 mm

  • Base Material: Bacteria-resistant powder coating

  • Interior Storage: 1 shelf | 6 ventilated drawers, bacteria-resistant, powder-coated galvannealed steel

  • Shelf (w x d): 15.1 x 8.1 in | 384 x 206 mm | 1.1 kg max capacity/shelf

  • Drawer (w x d): 13.1 x 8.1 in | 333 x 206 mm | 1.1 kg max capacity/shelf

  • Drawer Spacing: Adjustable, 0.7 in increments

  • Net Weight: 33 lb | 15 kg

  • Shipping Weight: 42 lb | 19 kg

  • Clearance Requirements: Minimum 0.5" (13 mm) behind unit for clearance and feature access. Minimum 0.75" (20 mm) left and right for clearance.
