Product Overview

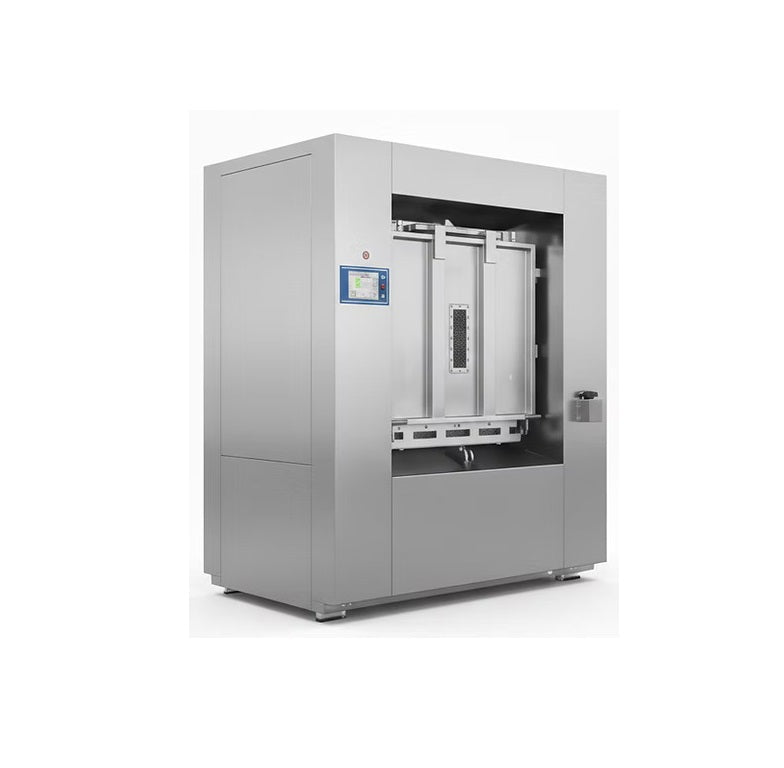

Barrier washer extractors are specifically designed for healthcare and other high-hygiene environments to prevent microbiological contamination during the laundry process by separating dirty and clean laundry with a physical barrier and dual doors.

Features and Benefits

• Parts in contact with water made of high-grade stainless steel 316L withstand high ppm chlorine water and last much longer than plastic or fiberglass products (Upgradable to Duplex Stainless Steel SS2205).

• Trouble-free industrial-designed shaft and bearing design with strong casted bearing housing.

• Compact design with large diameter drum, saving installation space and providing better agitating effect for chlorinating process.

• Separated compartment with automatic positioning for easy unloading at a slope position, saving time and reducing labor fatigue significantly.

• Tight-seal door allows more water filling, maximizes chlorine water contact with gloves for better soaking effect, and eliminates chlorine gas escape for better environmental protection.

• Small gap between inner drum and outer drum saves chlorine water while maintaining effective contact.

• Fully programmable touch screen computer (up to 99 programs) allows maximum flexibility for different process requirements.

• Large exhaust connection for chlorine gas release to protect working environment.

• Air bags suspension system with high extract reduces need for additional hydro-extractor, saving cost, space, energy, and time.

• Inverter drive allows variable rotation speed for better processing results according to customer needs.

Key Features and Functionality

Dual-Door Design:
Two doors positioned on opposite sides of a wall allow loading of soiled laundry on one side and unloading of clean laundry on the other.

Physical Barrier:
Wall-mounted design prevents direct contact between dirty and clean laundry, minimizing cross-contamination.

Hygiene and Sanitation:
Designed to meet high hygiene standards, especially in healthcare settings.

High-Speed Extraction:
Removes excess water efficiently, reducing drying time and energy consumption.

Programmable Cycles:
Accommodates various fabric types and contamination levels for effective cleaning and sanitization.

Data Management:
Some models offer tracking of wash cycles, energy consumption, and operational data.

Applications

• Healthcare Facilities (Hospitals, Clinics)

• Pharmaceutical Industry

• Biotech Laboratories

• Cleanroom Environments (Semiconductor, Aerospace)

• Food Processing Plants

• Nuclear Power Plants

• Other Sensitive Environments requiring dust-free and germ-free conditions
